A-ARC-10W33
10.1” WXGA LCD with P-cap Intel® Celeron® N3350 Rugged Touch Panel PC with IET Expansion
- 10.1” WXGA LCD with PCAP Multi-Touch
- Onboard Intel® Celeron® N3350 SoC BGA Processor
- 1 x 204-pin DDR3L SODIMM Socket, Supports Up to 8GB DDR3L 1600MTs SDRAM

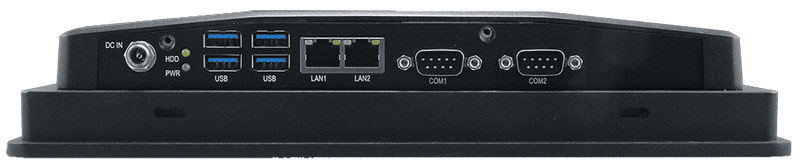

- Rich I/Os, 2 LAN, 2 COM, 4 USB, SIM Card Slot, Swappable Drive Bay, Speaker out for Flexible Expansion Modules
- 1 x Mini PCIe Slot
- Rugged Design for Vibration & Shock Protection, Cableless Design
- Fanless Operation from -10 ~ 50°C
- Wide Range DC Power Input from +9 ~ 36Vdc
Datasheet
Product Specification
| System Information | |
| Processor | Onboard Intel® Celeron® SoC BGA Processor (Apollo Lake Platform N3350 CPU) |
| System Memory | One 204-pin DDR3L SODIMM Socket, Supports Up to 8GB DDR3L 1600Mhz SDRAM (Non-ECC) |
| Watchdog Timer | H/W Reset, 1sec. ~ 65535sec./1sec.step |
| H/W Status Monitor | Monitoring CPU & System Temperature and Voltage |
| CPU Cooler (Type) | Fanless Heatsink |
| Expansion | |
| Expansion | 1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe 1 x 80-pin IET interface |
| Storage | |
| Storage | 1 x 2.5” Drive Bay(7mm HDD Restricted) |
| HDD/ SSD | 1 x SATA3 |
| Other Storage Device | 1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe |
| Panel | |
| LCD Size | 10.1" 16:10 |
| Display Type | WXGA |
| B/L Inverter/Converter | LCD built in |
| Resolution | 1280x800 |
| Pixel pitch | 0.1695mm(H) x 0.1695mm(V) |
| Luminance | 350 cd/m2 |
| Contrast ratio | 800 |
| Viewing angle | 85 (U), 85 (D), 85 (L), 85 (R) |
| Response time | 25 ms |
| Backlight | LED |
| Touch Type | PCAP Multi-Touch support up to 10 points |
| Touch Light Transmission | 88 % |
| Touch Controller | EETI |
| I/O | |
| USB Port | 4 x USB3.0 (2 x Double deck) |
| COM Port | 1 x RS-232/422/485, selectable by BIOS, RS-485 supports Auto Flow, Pin-9 selected by Ring/+5V/+12V) 1 x RS-232 |
| DIO | 16-bit GPIO |
| Expansion | 1 x mSATA supports on the 1st Mini PCIe slot, Auto switch for mSATA or Mini PCIe 1 x Optional by IET module |
| Other | 3 x Knockouts for Antenna Mounting |
| System Control | |
| LED Indicator | HDD LED, Power LED |
| DC In/Out Characteristics | |
| Power Type | AT/ATX |
| Audio | |
| Audio Codec | Realtek ALC888S |
| Speaker Output | 2 x 2W |
| Certifications | |
| Certification Information | CE / FCC Class B |
| Ethernet | |
| LAN Port | 2 x Intel I211AT for APL-M |
| Power Requirement | |
| DC Input | DC +9V ~ +36V, wide voltage single power input TVS component for surge protection Reverse current/voltage protection |
| DC Input Connector | Lockable DC Jack (Default) optional for phoenix connector |
| ACPI | Single power ATX Support S0, S3, S4, S5 and ACPI 3.0 Compliant |
| Power Mode | AT/ATX |
| Adapter | Input: 100 ~ 240Vac/ 50 ~ 60Hz Output: 60W Adapter (12V @ 5A Adapter) AC-DC Adapter |
| Mechanical & Environmental | |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Dimension (W x L x H) | 282.29 x 200.93 x 50.9mm |
| Weight | 2.17Kgs |
| Vibration Test | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 1hr/axis |
| Shock Test | Operating with SSD/CFast/mSATA : MIL-STD-810G, Method 516.6, Procedure I, functional shock=20G |
| IP Rating | Front Panel IP65 back cover IP41 |
| Mounting Kit | Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm Panel Mount with mounting kits |
| Power Requirement | DC +9V ~ +36V, wide voltage single power input TVS component for surge protection Reverse current/voltage protection |
| Power Mode | AT/ATX |
| System Fan | Fanless |
| Construction - Front | Die Casting with Cover lens |
| Construction - Rear | Black Die Casting |
| Relative Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Fanless | Yes |
| Drop | ISTA 2A, IEC-60068-2-32 Test:Ed |
| Software Support | |
| OS Information | Linux, Windows 10 |
Ordering Information
| Part No. | Description |
| ARC-10W33-33-B4-1R | Intel® Celeron® Processor N3350 1.10GHz F1-CPU/ 2GLAN/2COM/4USB/SPK/ 12V Adapter/PCAP |
| ARC-10W33-34-B4-1R | Intel® Celeron® Processor J3455 1.50GHz F1-CPU/ 2GLAN/2COM/4USB/SPK/ 12V Adapter/PCAP |
