I-AURA-W133-MTL

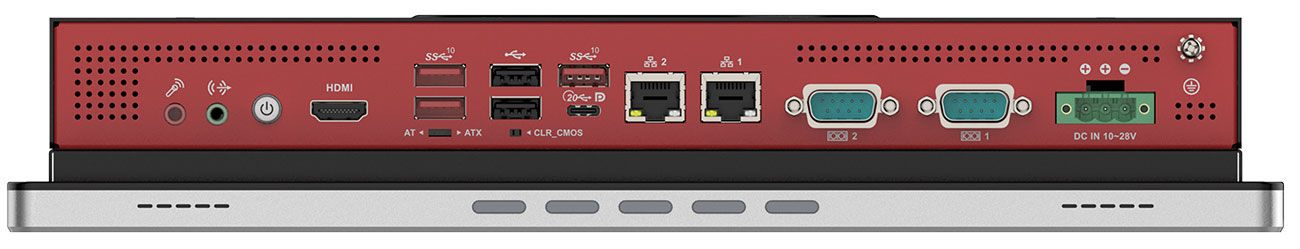

13.3” 1920 x 1080 (16:9) Industrial Panel PC, Intel® Core™ Ultra processors (Series 1)
- Ultimate Performance: Intel® MTL CPU with up to 96GB DDR5 for Edge AI tasks.
- Front-Access Interaction: Built-in Camera, Speakers, and Hot Keys (Vol/Bri/Power) for easy control after mounting.
- Pro-Grade Touch: Advanced PCAP touch optimized for precision with industrial gloves or wet hands.
- 13.3" (16:9) with a unified aesthetic, fitting everything from HMI to dashboards.
- Industrial Ruggedness: IP65 front panel and 10V~28V DC input for lasting stability in mission-critical applications.
Datasheet
| LCD | |
| Size | 13.3” |
| Resolution | 1920 x 1080(16:9) |
| Brightness (cd/m2) | 350 |
| Contrast Ratio | 1000: 1 |
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 176°/176° |
| Backlight MTBF | 30000 |
| Touch | |
| Touch Screen | PCAP with USB interface (anti-UV/AG coating) |
| Touch Controller | Capacitive: ilitek ILI2520 |
| Other Features | |
| Audio | 1 x Mic 1 x Line-out 2 x internal 2W speaker |
| Camera | 720P Wide Angle Fixed Focus |
| Function Key | |
| Function Key | 5-key Hot Key |
| LCD | |
| Size | 13.3” |
| Resolution | 1920 x 1080(16:9) |
| Brightness (cd/m2) | 350 |
| Contrast Ratio | 1000: 1 |
| LCD Color | 16.7M |
| Viewing Angle (H-V) | 176°/176° |
| Backlight MTBF | 30000 |
| Touch | |
| Touch Screen | PCAP with USB interface (anti-UV/AG coating) |
| Touch Controller | Capacitive: ilitek ILI2520 |
| Other Features | |
| Audio | 1 x Mic 1 x Line-out 2 x internal 2W speaker |
| Camera | 720P Wide Angle Fixed Focus |
| Function Key | |
| Function Key | 5-key Hot Key |
Ordering Information
| Model | Description |
|---|---|
| AURA-W133-MTL-U7AD-R10 | 13.3" 350 cd/m² 1920 x 1080 Panel PC with Intel® Core™ Ultra 7 155U Processor (12M Cache, up to 4.80 GHz), TDP 15W, 16GB DDR5, black, 10-28V DC input, PCAP touch, with Camera & speaker & hotkeys, R10 |
| AURA-W133-MTL-U5AD-R10 | 13.3" 350 cd/m² 1920 x 1080 Panel PC with Intel® Core™ Ultra 5 125U Processor (12M Cache, up to 4.30 GHz), TDP 15W, 16GB DDR5, black, 10-28V DC input, PCAP touch, with Camera & speaker & hotkeys, R10 |
