I-AFL4-12-EHL
12” Fanless Panel PC with Intel® Celeron® Processor J6412
- Intel® Elkhart Lake Platform
- New narrow bezel design
- Anti-glare and Anti-UV PCAP
- Support Gloved and Wet Hand Operation
- Support WiFi 6E and Bluetooth®5.2
Datasheet
Product Specification
| System | |
| CPU | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W |
| On-board Memory | on-board dual-channel 8GB LPDDR4x |
| Storage | 1 x M.2 2242 M-key (PCIe Gen3 x1 or SATA) |
| Communication | |
| Wireless | 2T2R Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Support 2.4/5/6GHz ,Bluetooth v5.2 |
| I/O Interface | |
| Ethernet | 2 x 2.5GbE LAN via Intel® I225V |
| Expansion | 1 x M.2 M-key 2280 (PCIE Gen3 x2) |
| Audio Codec | Realtek ALC 888S |
| Power | |
| Input | 12V DC |
| Environment | |
| Operating Temperature | -10ºC ~ 50ºC |
| Safety & EMC | CE, FCC Class A |
| Humidity | 10% ~ 95%, non-condensing |
| Storage Temperature | -20ºC ~ 60ºC |
| Physical Characteristics | |
| Color | Black+Silver |
| Mounting | VESA 75, Wall, Stand and Arm |
| Dimensions (LxWxH) (mm) | 243.56 × 166.20 × 40.65 |
| LCD | |
| Size | 12” (4:3) |
| Resolution | 1024 x 768 |
| Brightness (cd/m2) | 500 nits |
| Contrast Ratio | 700 ：1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.24 x 0.24 |
| Viewing Angle (H-V) | 160°/140° |
| Backlight MTBF | 50,000 hours |
| Touch | |
| Touch Screen | Multi-point projected capacitive type (anti-UV / anti-glare coating,support gloves) Surface hardness: 7H |
| Touch Controller | EETI 80 series |
| Other Features | |
| Audio | 1 x AMP 1.2W (internal speaker) |

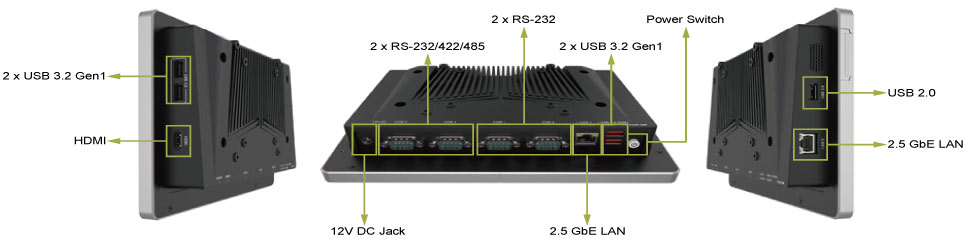

| I/O Interface | |
| I/O Interface | 2 x RS-232 (by DB9) |
| 2 x RS-232/422/485 (by DB9) | |
| 3 x USB 2.0 | |
| 1 x HDMI (up to 3840*2160 @30Hz) | |
| 2 x LAN (Intel® I225V 2.5GbE controller) | |
| 1 x DC Input Jack | |
| 1 x Reset Button | |
| 1 x Power Switch | |
| 1 x AT/ATX switch | |
| 2 x USB 3.2 Gen2x1 (10Gb/s(Type A)) | |
| OS Support | |
| OS Support | Windows 10 IoT Linux |
