P-AIO-W221-MTL
21.5" Full HD Capacitive IP65 All In One Touchscreen Computer with Intel® Core™ Ultra Series 1 Processors, 3x LAN, 3x USB, 1x Type C, 2x COM, 2x DP
- 21.5" (16:9) Full HD All-in-One Touchscreen Computer
- World Class Certifications for Safety and Reliability: CE/FCC/CB/UL/UKCA/IC
- Front IP65 Rating for protection against water and dust
- Scratch Resistant 7H Glass Hardness
- Versatile Display Outputs, 2x DP++ and LVDS/eDP
- MTBF 50,000 Hours
Datasheet
| Display | |
| IP Rating | Front IP65 |
| LCD Size | 21.5" (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) |
| Brightness (cd/m²) | 500 nits |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.248(H) x 0.248(V) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR>=10) |
| Backlight MTBF | 50,000 Hours (LED Backlight) |
| Touch | |
| Touch Type | Projected Capacitive Touch |
| Surface Hardness | 7H / IK07 |
| Multi-touch | 10 point (Support Glove Mode) |
| Anti-noise | CS 10V rms |
| System | |
| Processor | Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core) Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz (2+8+2 core) |
| System Chipset | SoC integrated |
| System Memory | 1x 262-Pin DDR5 5600MHz SO-DIMM. Max. up to 32GB (Non-ECC) |
| LAN Chipset | GbE1: Intel i226-LM 2.5GbE LAN PXE iAMT Support GbE2: Intel i226-V 2.5GbE LAN PXE iAMT Support GbE3: Intel i226-V 2.5GbE LAN PXE iAMT Support |
| Audio Codec | Realtek ALC897 High Definition Audio CODEC |
| BIOS | AMI uEFI 256MB SPI flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | dTPM2.0, fTPM2.0 |
| Storage | |
| M.2 | 1x M.2 M Key (2280, PCIe x4 Gen 4/SATA) support for NVMe/SATA SSD, Auto Detect |
| Expansion | |
| M.2 | 1x M.2 B Key (3042/3052, PCIe x2+USB 3.0+USB 2.0) support for 4G/5G 1x M.2 E Key (2230, PCIe+USB 2.0) for Wifi/Bluetooth |

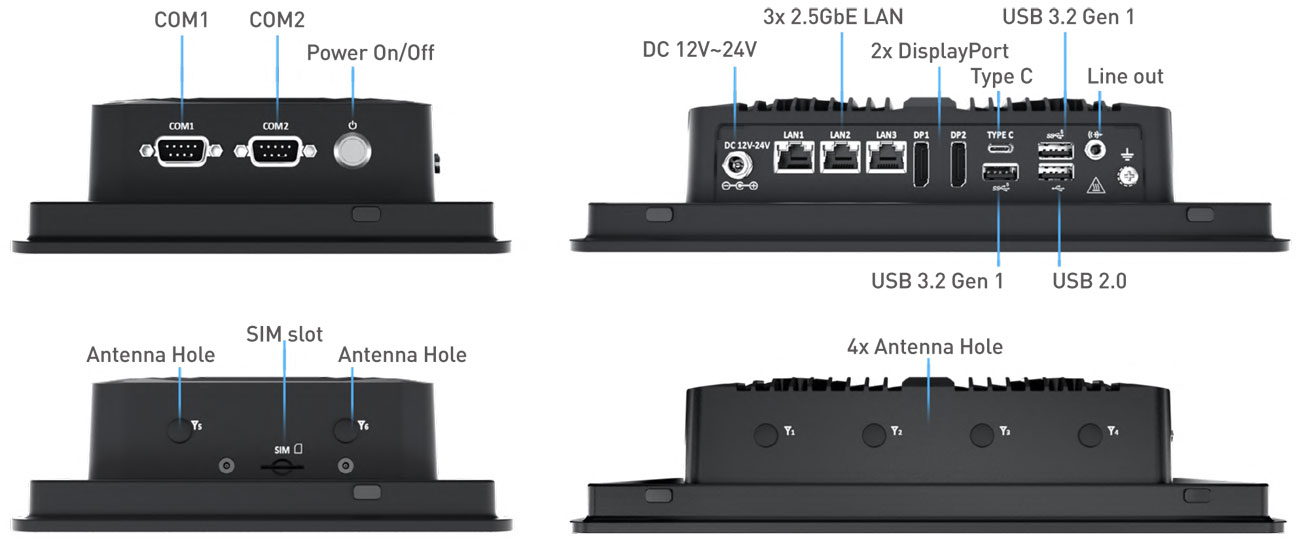

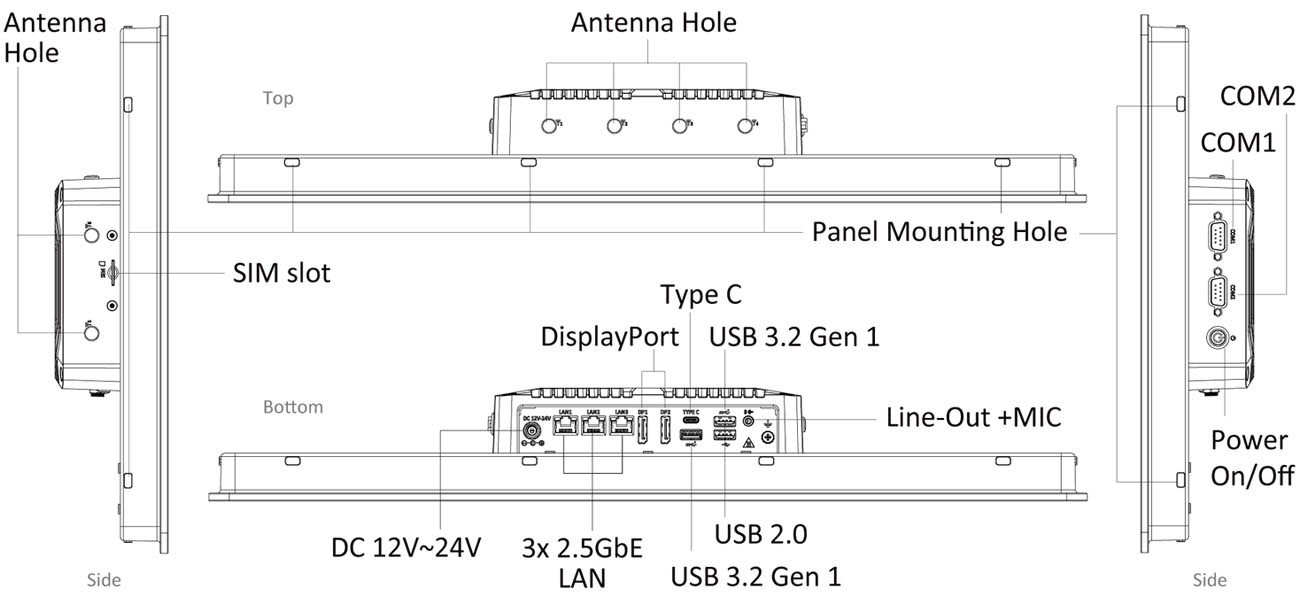

| I/O | |
| DisplayPort | 2x DisplayPort |
| COM | COM 1: RS-232/422/485 COM 2: RS-232 |
| USB | 1x USB 3.2 Type-C (5 Gbps) 2x USB 3.2 Gen 1 (5 Gbps) 1x USB 2.0 |
| LAN | 3x 2.5GbE LAN |
| Audio | 1x Line-Out +MIC |
| SIM | 1x SIM Socket |
| Others | Support up to 6x Antenna (optional) |
| Operating System | |
| Windows | Windows 10 / Windows 11 |
| Linux | Ubuntu 22.04 / 24.04 LTS |
| Power | |
| Power Adapter | 150W (20V/7.5A, Default) |
| Power Supply Voltage | DC 12~24V |
| Power Connector | DC Jack 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 10% to 80% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A, CB, UKCA, IC |
| Vibration | With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 20G half-sin 11ms |
| Physical | |

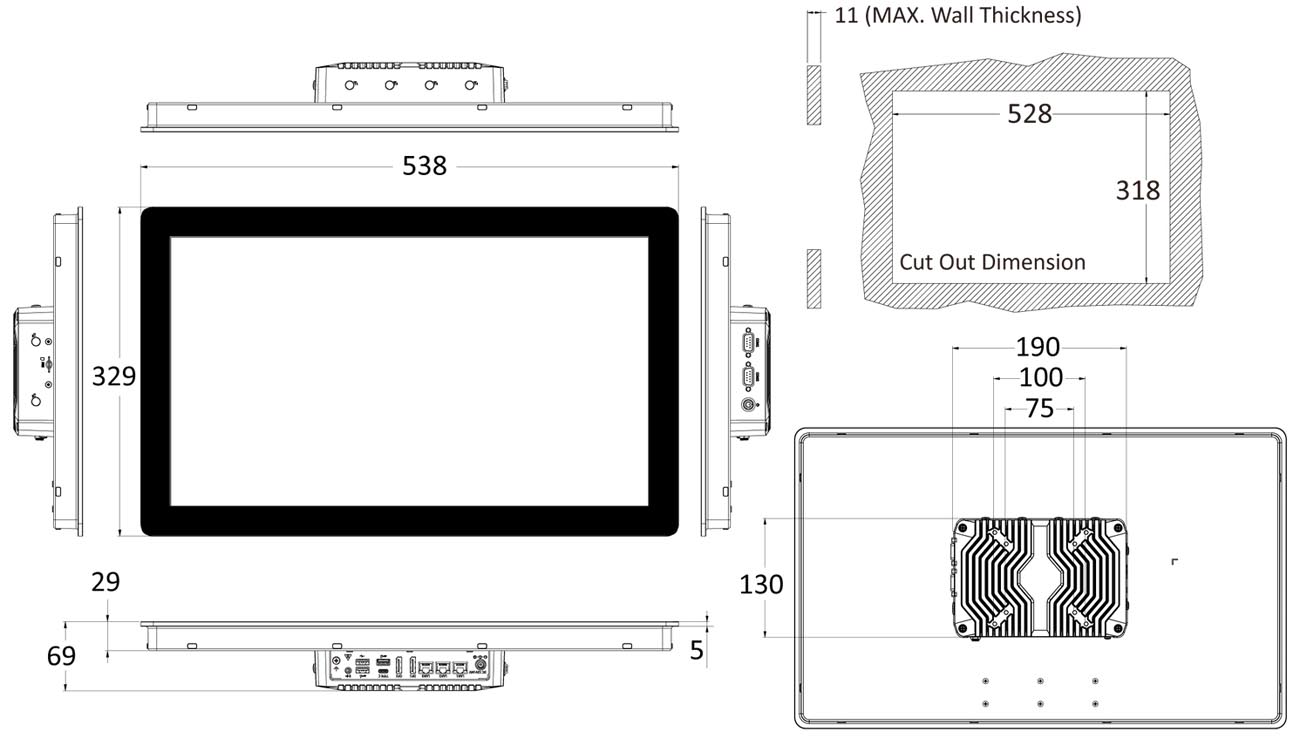

| Dimension | 538 (W) x 329 (H) x 69 (D) mm |
| Weights | 5.2 kg |
| Mounting | VESA Mount (75mm x 75mm/100mm x 100mm) Panel Mount (optional) |
