10-inch I-Series 5 with Android
10-inch Full HD touch display, flexible Android 14 OS, Qualcomm 6490 processor, WiFi 6E, optional POE
- 10" widescreen with high-performance computing and sleek edge-to-edge glass PCAP touchscreen
- Enterprise-Grade Support - Security updates, seamless provisioning, Elo Home, OEMConfig and more
- Deploy content, manage settings and maintain the OS with EloView Modular design with flexible mounting
Product Specification
Elo’s I-Series delivers the modularity businesses need into a sleek and durable fixed tablet form factor. Complete with a 10-inch Full HD touch display, flexible Android 14 OS, powerful Qualcomm 6490 processor, WiFi 6E, optional POE and four edge connect ports, the I-Series provides the versatility to fit almost any application.
| Part Number(s) | Black - E539154 White - E539346 |
| Enclosure Color | White or Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Touch Thru | Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches |
| Processor | Qualcomm Snapdragon QCS6490 |
| Memory (RAM) | 8GB |
| Storage | 64GB |
| OS | Android 14 with Google Play Services (AOSP capable) Upgrade to Android 16 and planned upgrade to Android 18 are available with an OS 360 subscription |
| Diagonal Size | 10.1'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:10 |
| Active Area | 8.54" x 5.34" / 217 mm x 136 mm |
| Resolution | 920 x 1200 @ 60Hz |
| Number of Colors | 8-bit (16.7 million) |
| Brightness (typical) | LCD Panel: 450 nits TouchPro PCAP: 387 nits |
| Response Time-total (typical) | 30 msec |
| Contrast Ratio | 900:1 |
| Viewing Angle | Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total |
| Peripheral Mounting | 4x micro-USB 2.0 Elo Edge Connect ports Support for 1.2A on one port and 500mA for the remaining three ports |

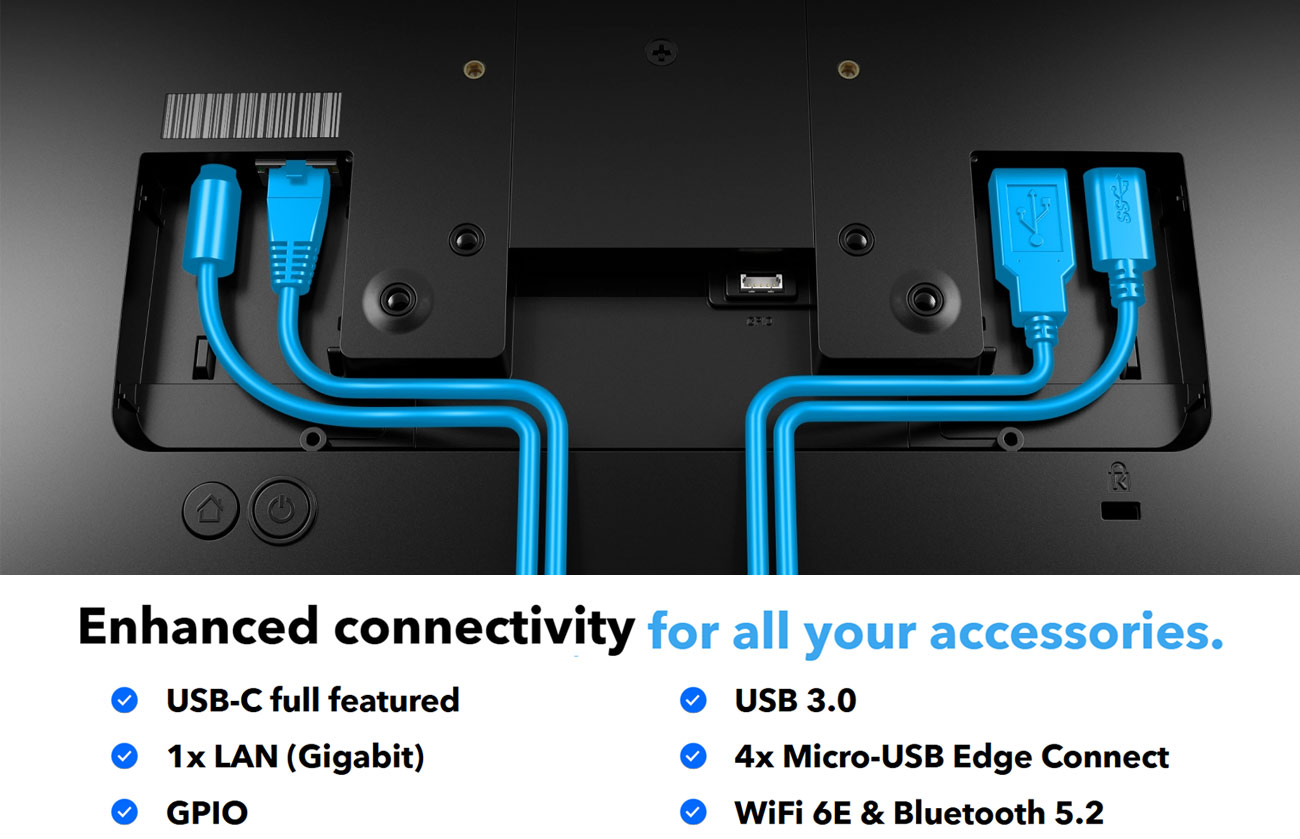

| I/O Ports | 1x USB 3.0 support (900mA) Type C USB output* Micro SD slot GPIO Ethernet 1x LAN (Gigabit) DC in *When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details |
| Webcam | 8MP, Max Resolution: 3200x2400 30fps, Auto Focus |
| Wireless | 802.11a/b/g/n/ac/ax + Bluetooth 5.2 |
| Audio Ports | 2x built-in Digital Microphones |
| Speakers | 2x 2W |
| Power Supply | AC input voltage: 100-240 VAC Input frequency: 50-60 Hz |
| Power Consumption (Typical) | On: 6.0W Off: 0.2W Sleep: 2.0W |
| Power Over Ethernet (PoE) | Supported via Elo PoE Device PN: E669163 Reference the I-Series 5 user guide for details. |
| Dimensions | 10.0" x 6.7" x 0.9" / 252.9 mm x 169.0 mm x 22.1 mm |
| Shipping Box Dimensions | 12.6" x 6.0" x 9.8" / 320 mm x 150 mm x 235 mm |
| Weight (Unpackaged) | 3.1 lbs / 1.4 kg |
| Weight (Packaged) | 7.9 lbs / 3.6 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 50°C / -4°F to 122°F |
| Humidity | Operating: 20% to 80% Storage: 10% to 90% |
| Regulatory approvals and declarations | UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) |
| Supported Countries | Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil |
| Real-Time Clock | lithium coin cell battery |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 75mm |
| Warranty | 2-year |
| OS Support | Bi-monthly Android security updates available with Elo OS 360 package. |
| Sealability | Touchscreen sealed to LCD |
| What's in the Box | I-Series 5 North American Power Cable European Power Cable 1x Power Brick Quick Install Guide Screws for cable cover door (located in the power/Ethernet bay) |
| Optional Peripherals | Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047 POE Module Kit - Elo P/N: E669163 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 Webcam - Elo P/N: E201494 Expansion Module – Elo P/N: E809509 RFID - Elo P/N: E673037 Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719 Elo Pay 7" - Elo P/N: E863808 |
| Stands, Mounts & Kits | Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104 Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077 Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321 Z20 Stand for 10'' I-Series - Elo P/N: E554932 Z20 Stand for 15'' I-Series - Elo P/N: E767356 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788 Elo Stand 1302L - White (75 mm VESA) - Elo P/N: E307974 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E572635 |
Modular design. Endless versatility.
Available in sizes ranging from 10 to 22 inches, easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Power-Over-Ethernet (POE)
Say goodbye to the expense of power drops with the POE adapter with the I-Series and a POE-capable network.
Camera & Microphone
The I-Series includes a 8MP camera and 2x digital microphones to support select application requirements.
