Dual-screen POS system integrated cash register. Android POS system

  • Adhering to simple aesthetics, integrating high integration and excellent performance, it demonstrates the tradition of high-end POS cashiers.
  • 14.1-inch main display. TouchPro PCAP touchscreen HD monitor supports up to 10-point multi-touch response
  • The main display screen is specially equipped with an Elo Edge Connect interface to facilitate access to various Elo peripherals to meet the needs of different cashier scenarios.
Product Specification

AP800 Android POS System Features


MTK i1200 chip


Android 11


4GB + 64GB DDR4X


Wi-Fi, Ethernet

Product part numberWhite - E694487
Black - E694689
Shell colorwhite or black
touch technologyPCAP (TouchPro® Projected Capacitive)-10-point touch
diagonal14.1'' diagonal
aspect ratio16:9
resolutionMain screen: 1920x1080 IPS; Guest display screen: 1280x800
Brightness (standard)Home screen: 200 nits
Response Time - Total (Standard)30ms
Viewing angleHorizontal: ±85° or 170° total/ Vertical: ±85° or 170° total
processorMTK i1200, 4 x A78 (2.2GHz) +4 x A55 (2.0GHz)
I/O port2 x USB 2.0, 2x USB 3.0, 1 x serial port (RJ45), 1 x Micro USB (debug), 2 x Micro USB (Edge Connect side), 1 x power supply
Ethernet port1xLAN (100M)
wirelessWi-Fi: 2.4GHz & 5GHz, Bluetooth 5.0
Barcode scanner0.3MP
customer display10.1" diagonal, 16:9
printer80mm 3" printer with automatic cutter, supports 80x60mm roll paper; compatible with 58mm (2-inch) paper roll printing
cash box3 slots for banknotes, 4 slots for coins, mechanical lock key
speaker2x 1W built-in speakers
operating systemAndroid 11
power supplyExternal power adapter, input voltage 100-240V AC, input frequency: 50-60Hz
size13.3" x 13.1" x 9.4" (338mm x 332mm x 240mm)
Shipping dimensions14.2" x 16.5" x 14.0" (360mm x 420mm x 355mm)
Weight (excluding packaging)7.1kg
Weight (including packaging)8.4kg
Operating temperature32°F to 95°F (0°C to 35°C);
Storage temperature-4°F to 140°F (-20°C to 60°C)
humidityWorking: 20% to 80%
Storage: 5% to 95%
Warranty2 years
Extended warranty option3-year standard warranty - Elo part number: E819394;
4-year standard warranty - Elo part number: E819598;
5-year standard warranty - Elo part number: E819795
Optional accessoriesCABLE,RJ50 TO DB9,AP800 WP800,0.3M - Elo P/N: E683740
Package includedAP800 all-in-one POS cash register (including cash box, printer, customer display screen, QR code scanner), power cord, 1x receipt printing paper, 2x cash box keys, quick installation guide, power adapter

Highly integrated Peripheral


Customer display screen


Scan code to pay




cash drawer

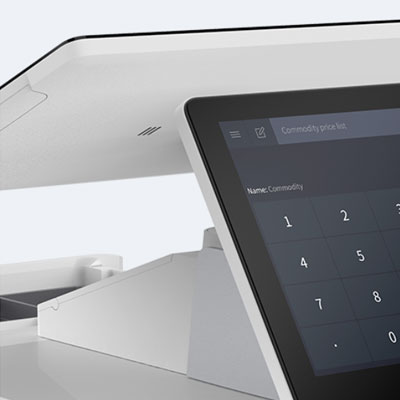

Dual screen in one

  • 14.1-inch main display: TouchPro PCAP touchscreen HD monitor supports up to 10-point multi-touch response
  • 10.1-inch guest display screen: High-brightness display, better customer experience

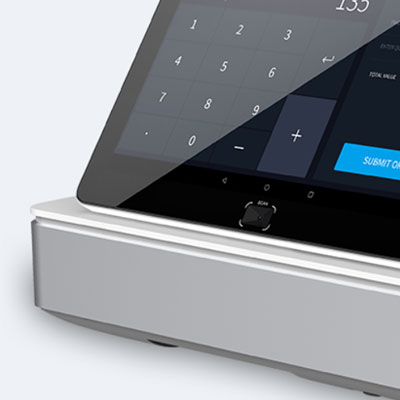

Scan code to pay

The customer display screen has a built-in payment scanner, which provides users with the function of scanning QR code to pay, making the payment method more flexible and convenient

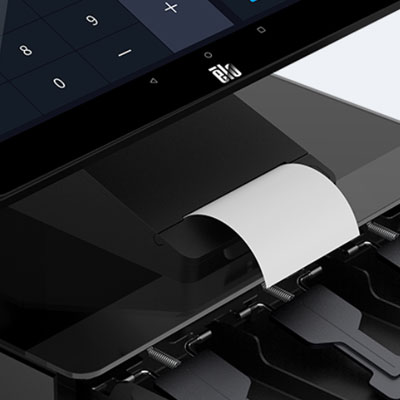

3-inch receipt printer with automatic cutter, supports 80x60mm (width x diameter) roll paper; compatible with 58mm (2-inch) paper roll printing, suitable for different scenarios

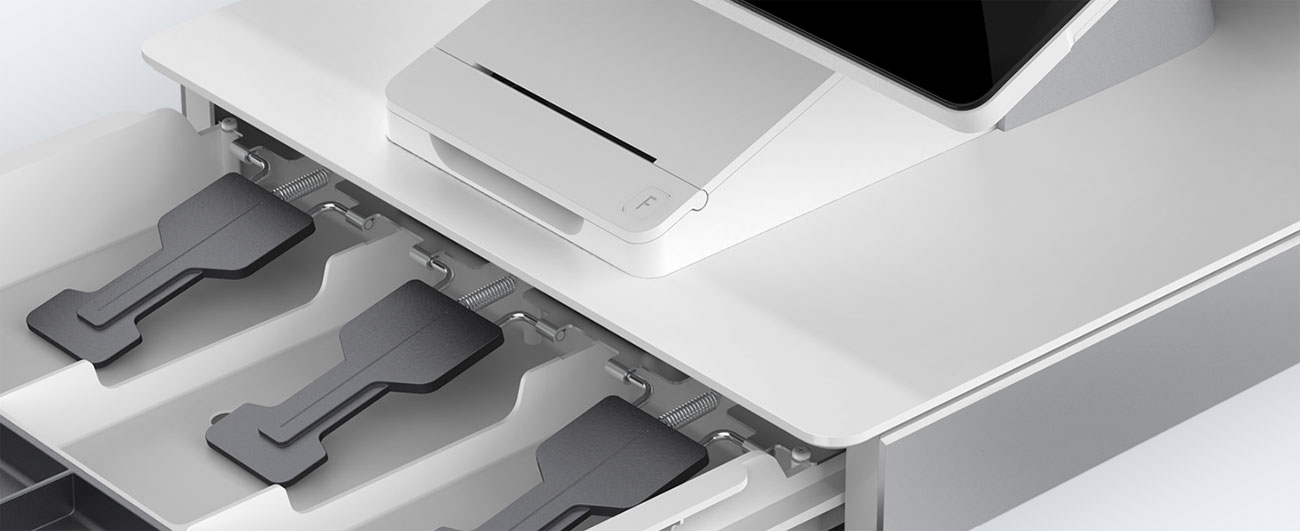

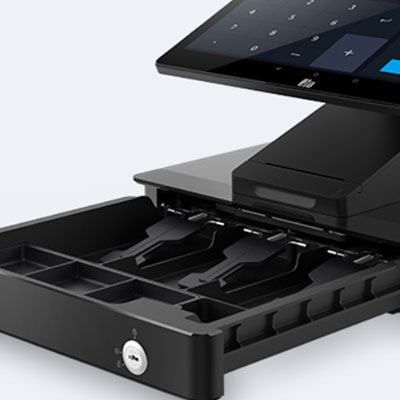

Cash drawer

The aluminum cash box is processed with consumer-grade technology and has a visual contrast of glossy and matte surfaces, which is simple and restrained, highlighting quality. Equipped with 3 compartments for banknotes, 4 compartments for coins, and mechanical lock key.
