Elo Pay 22" 'Tap to Pay'
21.5" FHD touch display, built-in NFC for contactless payment, Android 12 OS, and Qualcomm SD660 processor
Discover seamless transactions with our Elo Pay 22" integrated payment solution based on the I‑Series 4. The user-friendly self-service platform features a FHD touch display, built-in NFC for contactless payment, Android 12 OS, and Qualcomm SD660 processor.
- The integrated NFC makes it easy to accept contactless payments
- Universal VESA mount allows the Elo Pay 22" to mount on a variety of stands, pole mounts and wall mounts.
Datasheet
Elo Pay 22-inch integrated payment solution based on a versatile and user-friendly self-service platform features a FHD touch display, built-in NFC for contactless payment functionality, Android 12 OS and Qualcomm SD660 processor. From self-order and ticketing to customer check-in and more, deploying kiosks has never been easier.

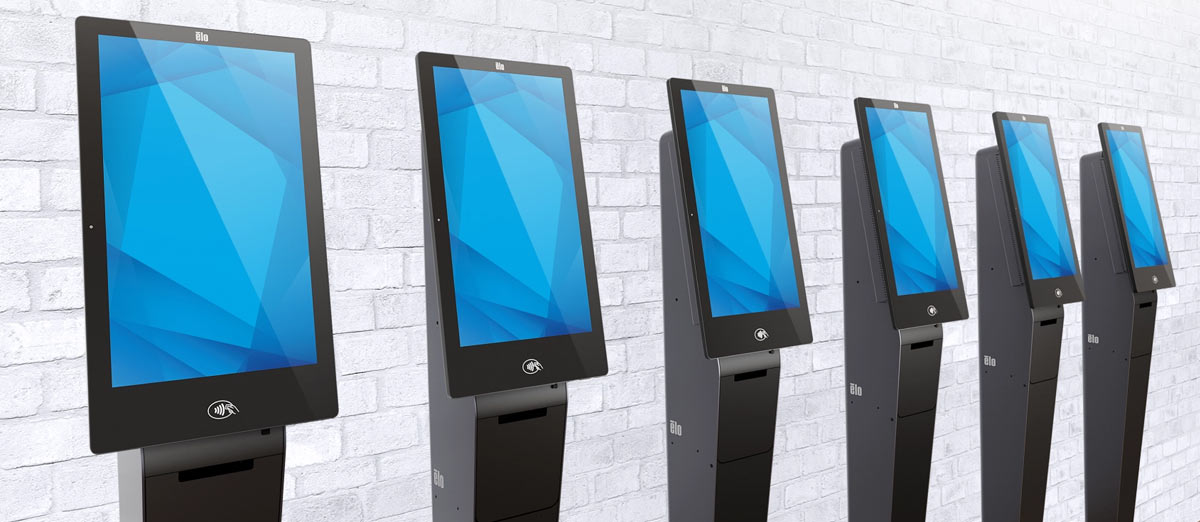

Pair the Elo Pay 22” with a variety of stands, including the popular Wallaby Pro to create the self serve solution your business needs. With no need for complex payment certifications and access to immediate integration, it's never been easier to start transacting. Start changing the way customers and employees interact by deploying a new generation of interactive technologies that provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred management tools.
| Part Number(s) | E574316 |
|---|---|
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Touch Thru | Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches |
| Processor | Qualcomm Snapdragon SDA660 |
| Memory (RAM) | 4GB |
| Storage | 64GB |
| OS | Android 12 with Google Play Services |
| Diagonal Size | 21.5'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 18.74" x 10.54" / 476 mm x 268 mm |
| Resolution | 1920 x 1080 @ 60Hz |
| Number of Colors | 8-bit (16.7 million) |
| Brightness (typical) | LCD Panel: 250 nits TouchPro PCAP: 215 nits |
| Response Time-total (typical) | 14 ms |
| Contrast Ratio | 1000:1 |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Peripheral Mounting | 3x micro-USB 2.0 Elo Edge Connect ports Support for 1.2A on one port and 500mA for the remaining three ports |
| I/O Ports | 1x USB 3.0 support (900mA) Type C USB output* Micro SD slot GPIO Ethernet 1x LAN (Gigabit) DC in * When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details |
| NFC | Front facing NFC antenna Programmable rear-lit white LED illuminates NFC contactless logo Fully SoftPOS compatible |
| Webcam | 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm |
| Wireless | 802.11a/b/g/n/ac + Bluetooth 5.0 |
| Audio Ports | 2x built-in Digital Microphones |
| Speakers | 2x 0.8W |
| Power Supply | AC input voltage: 100-240 VAC Input frequency: 50-60 Hz power adapter (included in accessory box) |
| Power Consumption (Typical) | On: 19.8W Off: 0.4W Sleep: 4.4W |
| Dimensions | 23.06" x 12.78" x 1.17" / 585.6 mm x 324.7 mm x 29.7 mm |
| Shipping Box Dimensions | 27.05" x 7.17" x 16.54" / 687 mm x 182 mm x 420 mm |
| Weight (Unpackaged) | 9.1 lbs / 4.1 kg |
| Weight (Packaged) | 15 lbs / 6.8 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 50°C / -4°F to 122°F |
| Humidity | Operating: 20% to 80% Storage: 5% to 95% |
| Regulatory approvals and declarations | UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) |
| Supported Countries | Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil, Taiwan |
| Real-Time Clock | lithium coin cell battery |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 75mm and 100mm |
| Warranty | 2-year |
| Extended Service Options | 3 year OS 360 - Elo P/N: E873133 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053 |
| OS Support | Monthly Android security updates available with Elo OS 360 package. |
| Sealability | Touchscreen sealed to LCD |
| What's in the Box | Elo Pay 22" North American Power Cable European Power Cable 1x Power Brick Quick Install Guide Screws for cable cover door (located in the power/Ethernet bay) |
| Optional Peripherals | Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160 2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627 2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 3D Camera - Elo P/N: E134699 Webcam - Elo P/N: E201494 Expansion Module – Elo P/N: E809509 RFID - Elo P/N: E673037 |
| Stands, Mounts & Kits | Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579 Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693 Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260 Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137 Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162 Replacement Cable Kit (NA & EU power cables) – Elo P/N: E512363 |
