Elo Pay M100 Mobile POS Tablet

10.1-inch Mobile POS Tablet integrated payment with PCI/PTS 6.0 pin-on-glass, flexible Android 12 OS
Anewtech-Systems-Industrial-Panel-PC-Touch-computer-Elo-Pay-M100-Mobile-POS-Tablet-Android

The Elo Pay M100 offers the ultimate rugged, enterprise-grade mobile point of sale tablet in a slim ergonomic form factor. Boasting a 10.1-inch FHD scratch resistant touch display, integrated payment with PCI/PTS 6.0 pin-on-glass, flexible Android 12 OS, and Qualcomm SD660 processor, the M100 Pay brings powerful performance with the security, unified architecture and long life cycle businesses need.

  • Fully integrated peripherals - NFC and EMV (Barcode Scanner on select models)
  • Secure – PCI-PTS 6.2 Certified
  • Go from mobile to fixed with the rotating POS Dock that swivels from merchant- to customer-facing
Product Specification

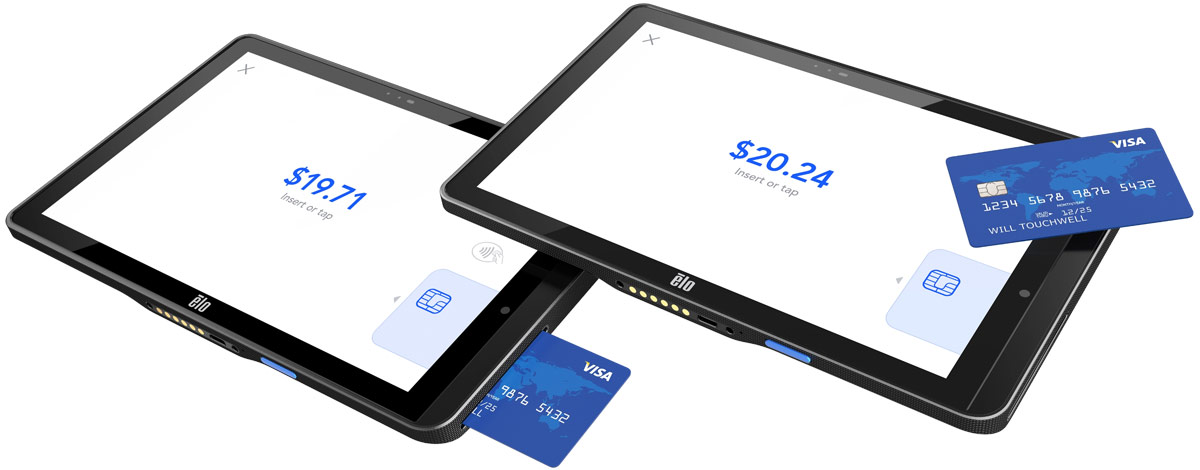

Anewtech-Systems-Elo-Pay-M100-tablet-elo-touch-solutions.
Anewtech-Systems-Elo-Pay-M100-tablet-elo-touch-solutions-Mobile-POS-Tablet

Elo Pay M100 offers the ultimate rugged, enterprise-grade mobile point of sale tablet in a slim ergonomic form factor. Boasting a 10.1-inch FHD scratch resistant touch display, integrated payment with PCI/PTS 6.2 pin-on-glass, flexible Android 12 OS, and Qualcomm SD660 processor, the M100 Pay brings powerful performance with the security, unified architecture and long life cycle businesses need.

With rugged Corning Gorilla Glass technology to provide protection against scratches and an IP54 rating to provide resistance from unintentional spills, the Elo Pay M100 is purpose-built to endure commercial use. Accept payments across the store, table side, in the drive thru, in-flight or from wherever you do business.

Part Number(s)Elo Pay M100, Cellular (AT&T), United States, Canada - E121790
Elo Pay M100, Cellular (Open Carrier), Europe - E122179
Elo Pay M100, WiFi, Worldwide - E121405
Elo Pay M100 (with barcode scanner), Cellular (AT&T), United States, Canada - E121593
Elo Pay M100 (with barcode scanner), Cellular (Open Carrier), Europe - E121973
Elo Pay M100 (with barcode scanner), WiFi, Worldwide - E121214
Enclosure ColorBlack
ProcessorQualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM)4GB
Storage64GB
Expansion OptionsMicroSD card supports up to 1TB SDXC
SIMAvailable on cellular SKU’s with user accessible nano SIM and eSIM (Cannot be used simultaneously)
OSAndroid 12 with GMS (AOSP Capable)
Planned upgrade to Android 14 available with OS 360 subscription
Display10.1" Optically Bonded FHD
TouchscreenProjective capacitive with Corning Gorilla Glass
Water rejection
Anti-Fingerprint Coating
SensorLight sensor (automatically adjust backlight brightness)
Accelerometer
Resolution1920 x 1200
Brightness (typical)500 nits
Contrast Ratio900:1
BatteryRechargeable Li-Polymer, 3.8V/8000mAh
User Replaceable battery
Qualcomm Quick Charge 3
CellularLTE US, Canada Carriers: AT&T
LTE Europe: Open Carrier

For E121593, E121790
4G/LTE: B2, B4, B5, B12, B13, B17, B25, B26, B41
3G/WCDMA: B2, B4, B5

For E121973, E122179
4G/LTE: B1, B3, B5, B7, B8, B20, B40;
3G/WCDMA: B1, B5, B8


GPSGPS, GLONASS, Galileo and BeiDou-concurrent L1/G1/E1/B1 (GPS, GLO, GAL, BeiDou)
AGPS support

*On cellular models only
I/O PortsUSB Type-C: Support display, charging, and data
Bottom pogo pad: for charging and USB 2.0 Host
Rear pogo: Support optional Fingerprint reader, Scanner
CameraRear Camera: 8MP Auto-Focus with Flash LED and Flashlight (torch)
Front Camera: 5MP Fixed-Focus with Face Authentication
PaymentEMV Contactless ISO 14443-A/B, MiFare, ISO-18092
EMV Chip Card Reader (chip and pin-on-glass)
CertificationsPCI-PTS 6.2 (PCI Approval Number: 4-30551)
EMV L1 & L2
Visa PayWave
Mastercard PayPass
Amex ExpressPay
Discover D-PAS
Mastercard TQM
Apple Pay™
Google Pay™
Samsung Pay™
Barcode ScannerSE4100 scan engine (1D/2D imager)

*on M100 Scanner models only
WirelessIEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO
BluetoothBluetooth 5.0
LED1x combination Green/Amber LED for charging status
1x combination Blue/Red LED for scan, error, or user programmable
KeyboardOn screen keyboard
AudioDual microphone with noise cancellation
Dual speakers
USB-C PTT headset and USB-C headset support
ButtonsDual scan buttons
Power button
Volume up/down buttons
Dimensions10.06" x 6.38" x 0.54" / 255.48 mm x 161.96 mm x 13.67 mm
Shipping Box Dimensions12.64" x 8.54" x 2.91" / 321 mm x 217 mm x 74 mm
Weight (Unpackaged)M100 w/ Scanner : 1.74 lbs / 789 g
M100 w/o Scanner: 1.69 lbs / 767 g
M100C w/ Scanner: 1.75 lbs / 794 g
M100C w/o Scanner: 1.70 lbs / 772 g
Weight (Packaged)M100 w/ Scanner : 3.25 lbs / 1473 g
M100 w/o Scanner: 3.20 lbs / 1451 g
M100C w/ Scanner: 3.26 lbs / 1478 g
M100C w/o Scanner: 3.21 lbs / 1456 g
Operating Temperature-20°C to 50°C / -4°F to 122°F
Storage Temperature-20°C to 60°C / -4°F to 140°F
Humidity5% to 95% non-condensing
Regulatory approvals and declarationsUL, FCC (US) - Class B
cUL, IC (Canada)
CB (International safety)
CE (Europe) - Class B
ESDClass B: 8kV contact, 15kV air
Drop RatingMultiple 1m drops per MIL 810-G
1.6m drops with the ruggedized case per MIL 810-G
Warranty1-year
Extended Service Options2 year warranty coverage - Elo P/N: E764955
3 year warranty coverage - Elo P/N: E765148
4 year warranty coverage - Elo P/N: E765352
5 year warranty coverage - Elo P/N: E765553
2 year warranty coverage + AUR - Elo P/N: E765759
3 year warranty coverage + AUR - Elo P/N: E765956
4 year warranty coverage + AUR - Elo P/N: E766156
5 year warranty coverage + AUR - Elo P/N: E766346
3 year warranty coverage + ADP - Elo P/N: E672040
5 year warranty coverage + ADP - Elo P/N: E672239
1 year warranty coverage + AUR + ADP - Elo P/N: E894512
3 year warranty coverage + AUR + ADP - Elo P/N: E672440
5 year warranty coverage + AUR + ADP - Elo P/N: E672646
3 year OS 360 - Elo P/N: E822682
4 year OS 360 - Elo P/N: E834310
5 year OS 360 - Elo P/N: E822484
OS SupportBi-monthly Android security updates available with Elo OS 360
SealabilityIP54 per IEC standard 60529
What's in the BoxElo Pay M100
USB Type C Charger with Qualcomm Quick Charge 3 (US. EU and UK plugs)
USB C Cable
Quick Install Guide
Optional Accessories4 Device Charger - Elo P/N: E118661
Device Charger - Elo P/N: E118851
Rotating POS Dock - Elo P/N: E119034
Rotating POS Dock (USB-C) - Elo P/N: E640102
Mobile VESA Mount - Elo P/N: E193052
Rugged Case - Elo P/N: E119632
Hand Strap - Elo P/N: E119827
Rotating Hand Strap - Elo P/N: E120428
Rotating Neck Strap - Elo P/N: E120022
Carry Strap - Elo P/N: EE120228
Stylus - Elo P/N: E120625
Fingerprint Reader - Elo P/N: E121016
Spare Battery – Elo P/N: E326107
Large Hub -Elo P/N: E815235
Small Hub - Elo P/N: E815044
Back Bracket - Elo P/N: E640293

Elo Pay M100 Mobile POS Tablet

Anewtech-Systems-Elo-Touch-Solutions-Elo-Pay-M100-Mobile-POS-Tablet-pin

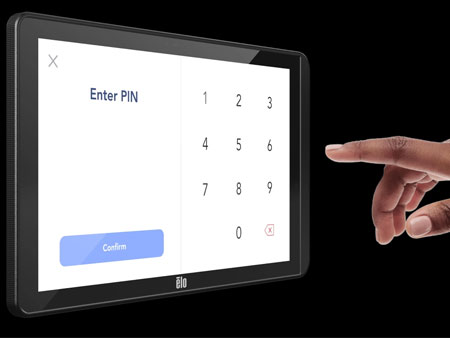

Pin on Glass

Enter your pin directly on the screen.

Anewtech-Systems-Elo-Touch-Solutions-Elo-Pay-M100-Mobile-POS-Tablet-emv

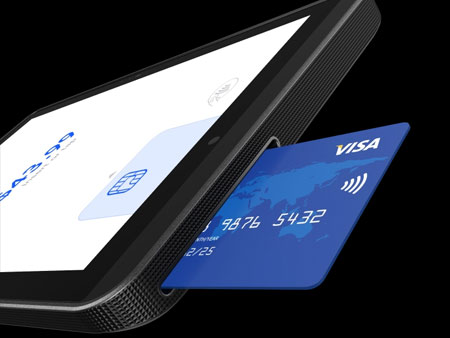

EMV

Insert cards with chips.

Anewtech-Systems-Elo-Touch-Solutions-Elo-Pay-M100-Mobile-POS-Tablet-NFC

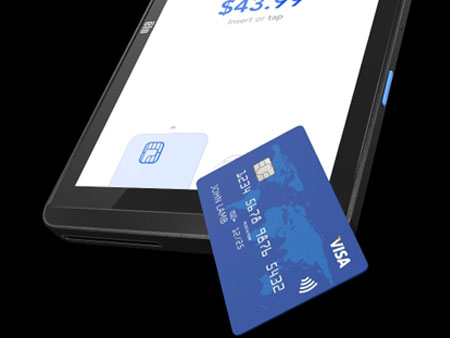

NFC

Tap with contactless payments.
