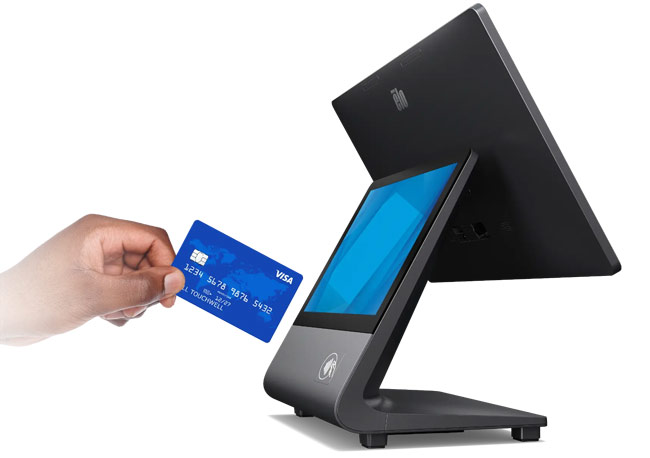

Elo Pay Z30 ‘Tap to Pay’
15.6", 16:9 Android Tap to Pay POS System
- Optically-bonded 15.6" AiO touchscreen provides enhanced durability, increased touch accuracy & brilliant display clarity
- Offer customers a point of interaction with the built in interactive CFD
- Integrated I/O hub & concealed cable routing simplify peripheral connectivity
- Enterprise-Grade Support - Security updates, seamless provisioning, Elo Home, OEMConfig and more
Datasheet
Elo Pay Z30 ‘Tap to Pay’
Experience enterprise-grade performance with the Elo Pay Z30 point-of-sale terminal. Powered by Android 14 and the Qualcomm 6490 processor, the Z30 combines merchant- and customer-facing displays and integrated NFC for fast, secure, contactless payments.
| Part Number(s) | E769124 |
| Enclosure Color | Dark Gray Metallic |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Processor | Qualcomm Snapdragon QCS6490 |
| Memory (RAM) | 8GB |
| Storage | 64GB |
| OS | Android 14 with Google Play Services and EloView content deployment and management Planned upgrade to Android 16 and Android 18 available with OS 360 subscription |
| Diagonal Size | 15.6'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area | 13.55" x 7.62" / 344 mm x 194 mm |
| Resolution | 1920 x 1080 @ 60Hz |
| Number of Colors | 8-bit (16.7 million) |
| Brightness (typical) | 350 nits TouchPro PCAP: 280 nits |
| Response Time-total (typical) | 20 ms |
| Contrast Ratio | 1000:1 |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
| I/O Ports | DC Input 4 x USB-A 3.0 (900mA) RJ45 Ethernet LAN (Gigabit) RJ12 (Serial/cash drawer)* 12/24V - User will need to select mode Powered USB 24V USB-C output - CFD (DisplayPort, touch and power delivery up to 27W) |
| Integrated Customer-Facing Display | Size -10.1 inch Resolution - 1920 x 1200 @ 60 Hz Active Display Area (H x V) - 8.53" x 5.33" / 216.58 mm x 135.36 mm Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total Brightness - LCD Panel: 450 nits, TouchPro PCAP: 387 nits Number of Colors - 8-bit (16.7M) Touch Technology - TouchPro PCAP Sealing - Touchscreen sealed to LCD Number of Touches - 10 |
| NFC | Front facing NFC antenna Programmable rear-lit LED illuminates NFC contactless logo (red, green and white) Fully SoftPOS compatible |
| Webcam | 8MP Max Resolution: 3264x2448 30fps Auto Focus |
| Wireless | 802.11a/b/g/n/ac/ax + Bluetooth 5.2 |
| Audio Ports | 2x built-in Digital Microphones |
| Speakers | 2x 1W |
| Power Supply | AC input voltage: 100-240 VAC Input frequency: 50-60 Hz |
| Power Consumption (Typical) | On: 18W Off: < 0.5W Sleep: 13W |
| Dimensions | 14.58" x 12.80" x 7.63" / 370.3 mm x 325.2 mm x 193.9 mm |
| Shipping Box Dimensions | 19.41" x 15.08" x 13.19" / 493 mm x 383 mm x 335 mm |
| Weight (Unpackaged) | 9.1 lbs / 4.14 kg |
| Weight (Packaged) | 17.2 lbs / 7.84 kg |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 50°C / -4°F to 122°F |
| Humidity | Operating: 20% to 80% Storage: 10% to 90% |
| Regulatory approvals and declarations | UL/cUL (US) FCC (US) Class B IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) BSMI/NCC (Taiwan) KCC (Korea) CCC/SRRC (China) |
| Supported Countries | Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey |
| Real-Time Clock | lithium coin cell battery |
| MTBF | 50,000 hours demonstrated |
| Warranty | 2-year |
| Extended Service Options | 3 year OS 360 - Elo P/N: E897877 4 year OS 360 - Elo P/N: E898079 5 year OS 360 - Elo P/N: E898282 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053 |
| OS Support | Bi-monthly Android security updates available with Elo OS 360 package. |
| Sealability | Touchscreen optically bonded to LCD |
| What's in the Box | Elo Pay Z30 North American Power Cable European Power Cable Quick Install Guide 150W Power Brick 2 x Zip Ties 1 x M4x8 mm screw in a plastic bag Base Plate – for mounting to a countertop |
