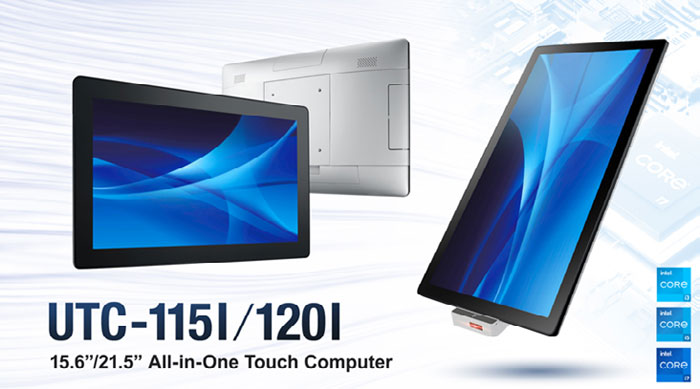

AD-UTC-115I
15.6" Ubiquitous Touch Computer with 11th Gen Intel® Core™ i7/i5/i3 Processor
- Slimmer and Lighter design
- Low power and fanless system design
- Built-in Intel® Core™ i5-8365UE
- 15.6" monitor with 16:9 widescreen display
- IP65-rated front panel for water and dust resistance
- Clean back cover design with 3 Way IO cable routing
- Supports both landscape and portrait screen orientations
- VESA 100 mm standard mounting holes for varied mounting demands
- Support DeviceOn/iService software for remote device management
| Model | UTC-115IP-WWW1F |
| Color | |
| Color | Silver |
| Display | |
| Size | 15.6" TFT LCD |
| Max. Resolution | FHD (1920 x 1080) |
| Brightness | 250 cd/m² (optional 400 nits) |
| Touch Screen | |
| Type | Projected Capacitive |
| Processor System | |
| CPU | Intel® Core™ i5-1145G7E |
| RAM | 8G DDR4 |
| Storage | 128G SSD |
| OS | Windows 10 IoT Enterprise 64bit |
| I/O Interface | |
| Serial Port | 2 x COM (RS-232) |
| USB Port | 3 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 1 x DC-in USB Type-C |
| Output | 1 x HDMI 1.4 |
| Audio | 1 x Audio Phone Jack |
| Ethernet | 2 x Gigabit Ethernet ports |
| Speaker | 2 x 2W Speaker |
| Extendable Slot | 1 x M.2 key2230, 1 x M.2 key2242 |
| Peripheral | |
| Bluetooth | Optional |
| WLAN | Optional |
| Enviroment | |
| Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) |
| Operating Humidity | 10 ~ 95% @ 40°C non-condensing |
| Vibration | 0.5G |
| Shock | 10G peak acceleration (11 msec. duration) |
| System Protection | IP 65 Compliant |
| Power | |
| Input Rating | 20V/4.5A (90W) |
UTC-115 features an all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas.
15.6 inch All-in-One touchscreen Panel PC. Available in 4 platforms
AD-UTC-115H
Whiskey Lake
Intel® Core™i3-8145UE & i5-8365UE
AD-UTC-115G
Apollo Lake
Intel® Pentium®N4200
AD-UTC-115I
Tiger Lake
11th Gen Intel® Core™ i5/i3 Processor
AD-UTC-115K
Alder Lake
12th Gen Intel® N50/N97/Core™ i3-N305 processor
UTC-100 Series: 15.6"~ 23.8" Slim, Lightweight, All-in-One Touch Computers
Slim, Lightweight Design
One of the thinnest, most lightweight AiO PCs for easy installation, integration, and maintenance in public spaces.
Flexible Display Orientation
Supports both landscape and portrait display orientations to ensure flexible installation in diverse environments.
Recessed Cable Management
Internal cable routing with three channels eliminates clutter and protects against accidental I/O disconnections.
Expandable Functions
The UTC-100 series c an be easily integrated with optional peripherals to expand the system functions for specific applications.
