AD-UTC-520K
21.5" Ubiquitous Touch Computer with Intel® N97/Core™ i3-N305 Processor
- Low-power, fanless system design
- Built-in Intel® N97/Core™ i3-N305
- 21.5" monitor with 16:9 widescreen display
- IP65-rated front panel for water and dust resistance
- All-in-one aluminum extrusion design
- Supports both landscape and portrait screen orientations
- VESA 100 mm standard mounting holes for varied mounting demands
- Side groove design for integrating peripherals
- Optional 400 nits LCD panel
| Model | UTC-520KP-ATB0E | UTC-520KR-ATB0E |
|---|---|---|
| Display | ||
| Size | 21.5" TFT LCD | 21.5" TFT LCD |
| Max. Resolution | FHD (1920 x 1080) | FHD (1920 x 1080) |
| Brightness | 250 cd/m² (optional 400 nits) | 250 cd/m² (optional 400 nits) |
| Touch Screen | ||
| Type | Projected Capacitive | Analog Resistive 5-wire |
| Processor System | ||
| CPU | Intel® Atom® N97 | Intel® Atom® N97 |
| RAM | 1 x 262pin SO-DIMM DDR5 4800MHz up to 16GB | 1 x 262pin SO-DIMM DDR5 4800MHz up to 16GB |
| Storage | 1 x 2.5 internal SATA HDD bay | 1 x 2.5 internal SATA HDD bay |
| OS | Windows 10/11 IoT Enterprise, Android 14, Linux | Windows 10/11 IoT Enterprise, Android 14, Linux |
| I/O Interface | ||
| Ethernet | 2 x RJ-45 | 2 x RJ-45 |
| Output | 1 x HDMI / 1 x DP | 1 x HDMI / 1 x DP |
| Audio | 1 x Line-out, 1 x Mic-in | 1 x Line-out, 1 x Mic-in |
| USB Port | 2 x USB 3.2, 2 x USB 2.0 | 2 x USB 3.2, 2 x USB 2.0 |
| Serial Port | 2 x RS-232/422/485 | 2 x RS-232/422/485 |
| Speaker | 2 x 3W Speaker | 2 x 3W Speaker |
| Extendable Slot | 1 x E-Key 2230 (PCIe x1, USB2.0), 1 x B-Key 2280 (SATA x1), 1 x B-Key 3052 (USB3.2, USB 2.0 or *optional PCIe x1) w/ Nano-SIM | 1 x E-Key 2230 (PCIe x1, USB2.0), 1 x B-Key 2280 (SATA x1), 1 x B-Key 3052 (USB3.2, USB 2.0 or *optional PCIe x1) w/ Nano-SIM |
| Power | ||
| Input Rating | 12 V/7 A (84 W ITE Adapter) | 12 V/7 A (84 W ITE Adapter) |
| Environment | ||
| System Protection | IP65 front panel | IP65 front panel |
| Operating Temperature | 0 ~ 40 °C (32 ~ 104 °F) | 0 ~ 40 °C (32 ~ 104 °F) |
| Operating Humidity | 95% @ 40 °C/104 °F, non-condensing | 95% @ 40 °C/104 °F, non-condensing |
| Shock | 10G peak acceleration (11 msec. duration) | 10G peak acceleration (11 msec. duration) |

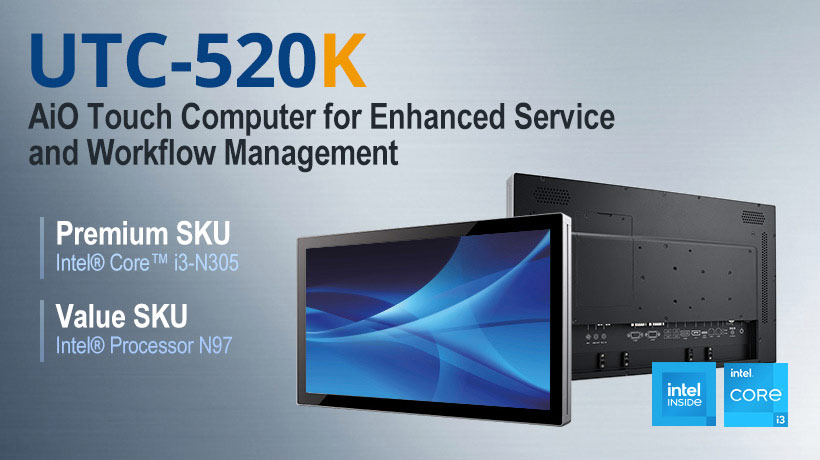

UTC-520K All-in-One Touch Computer for Enhanced Service and Workflow Management
UTC-500 series touch computer— UTC-520K, is a 21.5-inch all-in-one touch computer with new platform technology and enhanced serviceability. By default, the system is powered by the Intel® Alder Lake-N series N97 processor. Alternatively, an optional Intel® Core™ i3-N305 processor with up to 8 cores is also available. The Intel® Alder Lake-N series N97 processor is one of the best budget-friendly options for standard tasks.
It’s also optimized for edge and IoT applications, building efficient solutions for various domains, such as visual and transactional retail, education and industrial use. The new system delivers improved performance, higher graphics capability, breakthrough memory & I/O features, and an enhanced user experience compared to prior generations of entry processors.
Moreover, it features an IP65-rated front bezel and fanless cooling system housed within rugged aluminum to facilitate reliable 24/7 operation in harsh industrial environments. The industrial ruggedness makes the UTC-520K an ideal solution for industrial-grade applications such as production line displays, touchscreen displays for warehouse process management, and kitchen display systems.
