WM-W10IE3S-SPH2-B

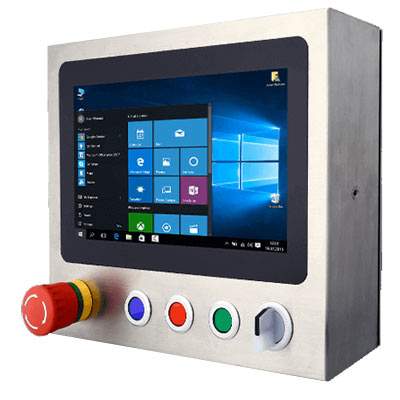

10.1" Intel® Celeron® N6210 IP65 Stainless B Series Panel PC
- Intel® Celeron® Elkhart Lake N6210 processor
- Fanless cooling system
- SUS 316 / AISI 316 stainless steel for food and chemical industries
- A true flat, easy-to-clean front surface with edge-to-edge design
- Supports VESA mount
- Rotary switch adjust different touch mode for Hand / Rain / Glove application
- Emergency and Flat buttons for automation device control
- Optical bonding (optional)
Datasheet
Product Specification
| Display | |
| Size | 10.1 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1280x800 |
| Panel Brightness | 350 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Active Area | 216.96x135.6 mm |
| System Specification | |
| Processor | Intel® Celeron® N6210 (1.5M Cache, up to 2.6GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 293 x 250 x 69 mm |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x M12 waterproof connector for 1 x USB2.0 & Giga LAN |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| Expansion Port | CN1 and CN2 for front button control |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Power Input | 1 x M12 waterproof connector for 12V DC |
| Control | |
| Button | Rear side: 1 x Power Button 1 x Reset Button Front side: 1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector 1 x Rotary Switch for touch mode |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter with waterproof connector Power Cord External USB & LAN cable with waterproof connector External COM cable with waterproof connector External cables for CN1 & CN2 with waterproof connector Waterproof caps RJ45 female-female converter VESA screws |
| Optional Accessory | 1 x Open wire cable for M12 connector |
| Power | |
| Power Rating | M12 Type: 12V DC 9~36V DC (Optional) |
