SYS-111AD-WN2R
1U 14th Gen intel Core edge server with 6 external 2.5" drive bays and PCIe 5.0

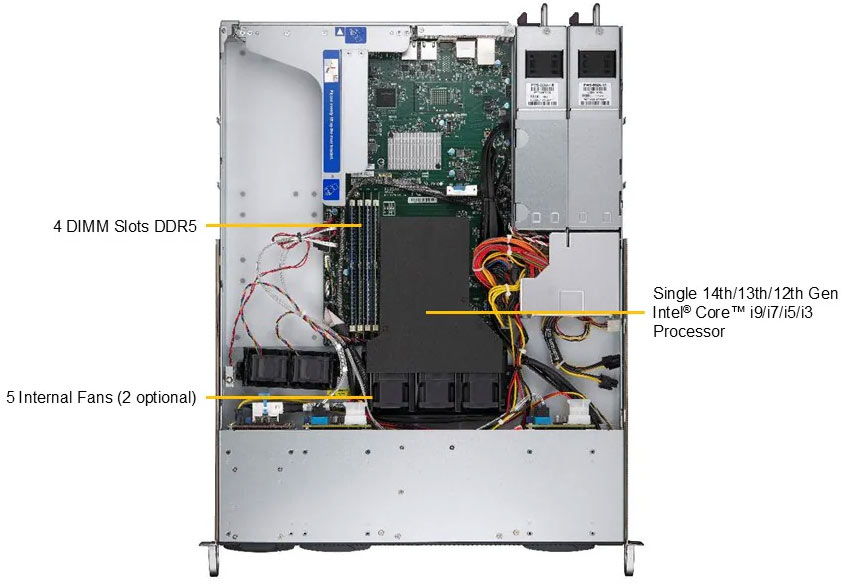

- Single LGA-1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors up to 80W with air cooling
- Support for up to 1 double-width PCIe GPU accelerator cards
- Up to 4 DIMMs supporting up to 192GB DDR5-4400 in 2DPC
- Up to 6 external 2.5" drive bays, 4x SATA & 2x NVMe
- Up to 2 PCIe 5.0 x8 FHFL + 1 PCIe 4.0 x4 LP slots
- 2 RJ45 2.5GbE
- 1 Redundant 600W Titanium Level power supply
Key Applications
- Virtualization
- Firewall Applications
- Edge/Cloud Computing Services
- CDN/vCDN/Cloud CDN
- vRAN/o-RAN
Datasheet
Product Specification
| Product SKUs | SuperServer SYS-111AD-WN2R |
| Motherboard | Super X13SAW-F |
| Processor | |
| CPU | Single LGA-1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors |
| Note | Supports up to 80W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | 1 double-width or 1 single-width GPU |
| Supported GPU | NVIDIA PCIe: A1000, T1000, A2 |
| System Memory | |
| Memory | Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 192GB 4400MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | Intel® R680E |
| Network Connectivity | 2 RJ45 2.5GbE with Intel® I226 |
| Input / Output | |

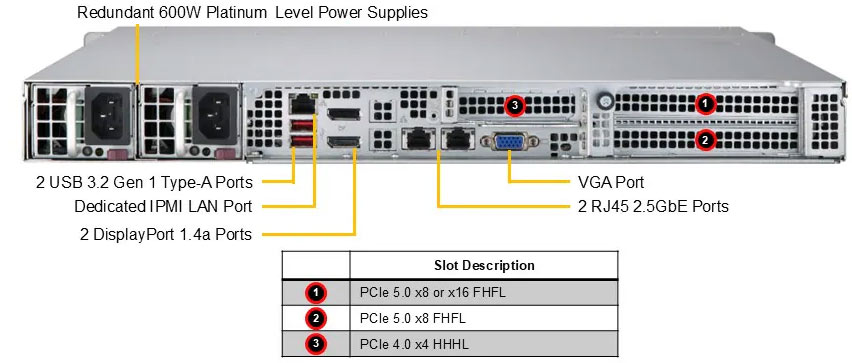

| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 2.5 GbE LAN ports (Intel® I226) |
| USB | 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front) |
| Video | 1 VGA port 2 DisplayPort 1.4a ports |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | Plug and Play (PnP) ACPI 6.5 SMBIOS 3.6 or later UEFI 2.8 USB Keyboard support |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| Temperature | SuperDoctor® 5 System resource alert via SuperDoctor®5 Platform Environment Control Interface (PECI) 3.0 support |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-112TS-R000RWNP |
| Dimensions and Weight | |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 22" (559 mm) |
| Package | 8" (H) x 27" (W) x 24" (D) |
| Weight | Gross Weight: 29 lbs (13.15 kg) Net Weight: 17.6 lbs (8 kg) |
| Available Color | Black |
| Front Panel | |
| LED | Device Activity LAN 1 Activity LAN 2 Activity Power status System information |
| Buttons | Power On/Off UID button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 2 PCIe 5.0 x8 FHFL slots 1 PCIe 4.0 x4 LP slot Option A 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 1 PCIe 4.0 x4 (in x8) HHHL slot |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 6 bays 2 front fixed 2.5" NVMe drive bays 4 front fixed 2.5" SATA drive bays |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280) 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110) |
| System Cooling | |
| Fans | 5 Heavy duty counter-rotating Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 1x 600W | 1x 600W Redundant Titanium Level (96%) power supply |
| 1x 800W | 1x 800W Redundant Titanium Level (96%) power supply |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 5°C to 40°C (41°F to 104°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 85% (max 24° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
