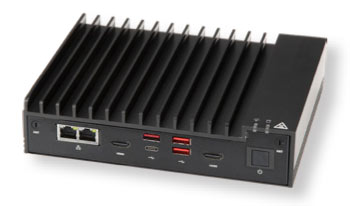

SYS-E100-12T-E
Embedded systems supports 11th Gen Intel® Core™ i5-1145GRE Processor
- 11th Generation Intel® Core™ i5-1145GRE Processor; Single Socket FCBGA-1449
- System-on-Chip
- M.2: B-Key, M-Key, E-Key M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCI-E Gen3 x1) with nano SIM holder M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280 M-Key (PCI-E 4.0 x4), NVMe support
- Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 3200MHz; 2 DIMM slots
- Dual 2.5GbE LAN w/ Intel I225-IT
- 4 COM (RS-232/422/485), 3 USB 3.2, 1 USB-C 3.2, 4 USB 2.0, 1 DIO via DB9
- 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b
- -30°C to 50°C Operating Temperature
- Lockable 12V DC 84W power adapter
Product Specification
| Product SKU | |
| SYS-E100-12T-E | SuperServer E100-12T-E (Black) |
| Motherboard | Super X12STN-E-WOHS |
| Processor/Cache | |
| CPU | 11th Generation Intel® Core™ i5-1145GRE Processor Single Socket FCBGA-1449 System-on-Chip CPU TDP support up to 12/15/28W |
| Note | BIOS version 2.0 or above is required |
| System Memory | |
| Memory Capacity | Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots |
| Memory Type | DDR4 up to 3200MHz |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Controllers | Dual 2.5GbE LAN with Intel® I225-IT |
| Audio | ALC 888S HD Audio |
| Video | Intel® Xe Graphics |
| Input / Output | |
| USB | 3 USB 3.2 ports, 1 USB-C 3.2 port, 4 USB 2.0 ports |
| Video Output | 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b |
| COM Port | 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control |
| Audio | 1 HD Audio header(Mic-in/Line-Out) [optional] |
| Others | 8-bit configurable GPIO via DB9 |
| Chassis | |
| Form Factor | 3.5" SBC |
| Model | CSE-E101-03 |
| Dimensions | |
| Width | 7.68" (195mm) / 11.81" (300mm) - pkg. |
| Height | 1.73" (44mm) / 5.12" (130mm) - pkg. |
| Depth | 5.94" (150mm) / 11" (279mm) - pkg. |
| Weight | Gross Weight: 4.5 lbs (2.04 kg) Net Weight: 2.65 lbs (1.2 kg) |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED and Hard drive activity LED |
| Expansion Slots | |
| M.2 | Key: B-Key, M-Key, E-Key M.2 2242/3042/2280 B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280 M-Key (PCI-E 4.0 x4), NVMe support |
| System Cooling | |
| Fans | Fan-less design |
| Power Supply | Lockable 12V DC 84W power adapter |
| System BIOS | |
| BIOS Type | AMI UEFI |
| Management | |
| Software | SuperDoctor® 5, Watch Dog, vPro, AMT |
| Power Configurations | +12V ~ +24V DC Wide power range input ACPI Power Management Control of power-on for recovery from AC power loss Force Power On by Jumper CPU thermal trip support for processor protection |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: -30°C ~ 50°C (-22°F ~ 122°F) with 0.7 m/s air flow. The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature. Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms |
