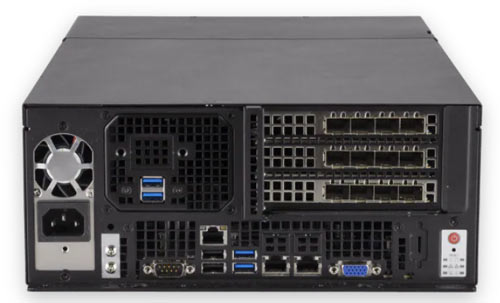

SYS-E403-12P-FN2T
Embedded System supports Single Socket Intel® Xeon-SP (Ice Lake) up to 32 Cores

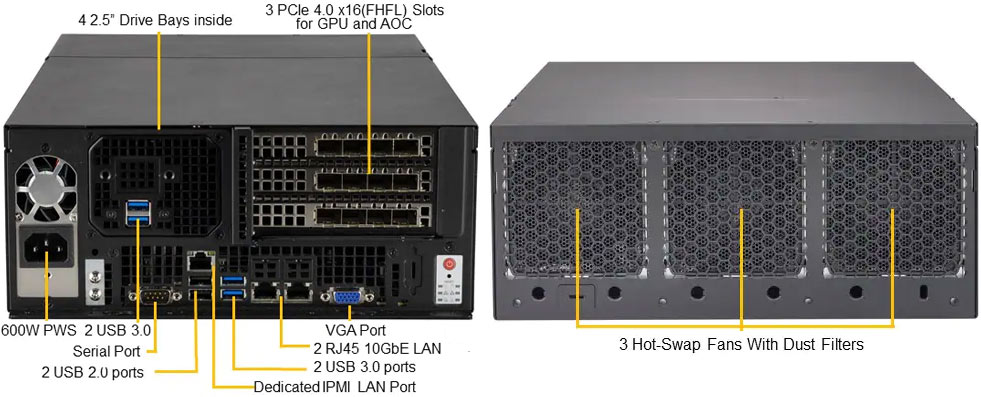

- Single Socket Intel® Xeon-SP (Ice Lake) up to 32 Cores
- 3x PCI-E4.0 x16 slot
- 2x 10 Gigabit Ethernet Ports
- 4x 2.5" Internal Drive Bays
- 4x USB 3.0, 2x USB 2.0
Datasheet
Product Specification
| Product SKU | |
| SYS-E403-12P-FN2T | SuperServer SYS-E403-12P-FN2T |
| Motherboard | Super X12SPW-TF |
| Processor | |
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors |
| Cores | Up to 32C/64T; Up to 48MB Cache |
| Note | Supports 85W - 205W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Memory Voltage | 1.2 V |
| On-Board Devices | |
| SATA | SATA3 (6Gbps); RAID 0/1 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT port(s) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 front) |
| System BIOS | |
| BIOS Features | ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later |
| Management | |
| Software | SUM SPM Intel® Node Manager KVM with dedicated LAN NMI Watch Dog SuperDoctor® 5 IPMI 2.0 |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| Chassis | |
| Form Factor | Box PC |
| Model | CSE-E403iF-000NBP |
| Dimensions and Weight | |
| Height | 4.3" (109mm) |
| Width | 10.5" (267mm) |
| Depth | 16" (406mm) |
| Package | 9.75" (H) x 15.75" (W) x 21.5" (D) |
| Weight | Net Weight: 18 lbs (8.16 kg) Gross Weight: 24 lbs (10.89 kg) |
| Available Color | Black |
| Front Panel | |
| Buttons | Power On/Off , UID button |
| LEDs | HDD activity, LAN1 activity, LAN2 activity, Power status, System information |
| Expansion Slots | |
| PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 FHFL |
| Drive Bays / Storage | |
| Drive Bays | 4x 2.5" SATA drive bays |
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 M-Key, 2280/22110 |
| System Cooling | |
| Fans | 3 heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply | 600W AC 100-240V Power Supply |
| Dimension (W x H x L) | 100 x 40 x 220 mm |
| AC Input | 600W: 100-240Vac / 3.5A-7.5A / 50-60Hz |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Visual Inferencing Optimized
Compact edge platform with up to 2 GPUs
Key Features
- GPU: Up to 2 Intel® Data Center GPU Flex Series
- CPU: Single 3rd Gen Intel® Xeon® Scalable processor up to 32 cores
- Memory: 8 DIMMs
- Drives: 4x 2.5” internal SATA drive bays
