SYS-212B-LN2T
X14 2U compact front I/O edge AI system with up to 7 PCIe 5.0 slots and redundant AC/DC PSU
- Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
- Up to 8 DIMMs supporting up to 1TB DDR5-6400
- 2x10GbE LAN (X550), 2x USB3.2
- Support for up to 4 single-width GPU accelerator cards, 1 double-width GPU (optional)
- 1 PCIe x16 (FHFL, optional), 3 PCIe 5.0 x16(HHFL), 3 PCIe 5.0 x8(HHFL)
- 4x 2.5” NVMe (Optional), 2 M.2 M-Key NVMe, 22110
- 1 Redundant 2000W Titanium Level power supply
- Onboard TPM9672: TCG2.0, FIPs 140-2 Level 2, Intel TXT and Microsoft Windows certification
Key Applications
- 5G Core and Edge
- AI Inference and Machine Learning
- Network Function Virtualization
- Cloud Computing
Datasheet
Product Specification
| Product SKU | SuperServer SYS-212B-LN2T |
| Motherboard | Super X14SBI-TF |
| Processor | |

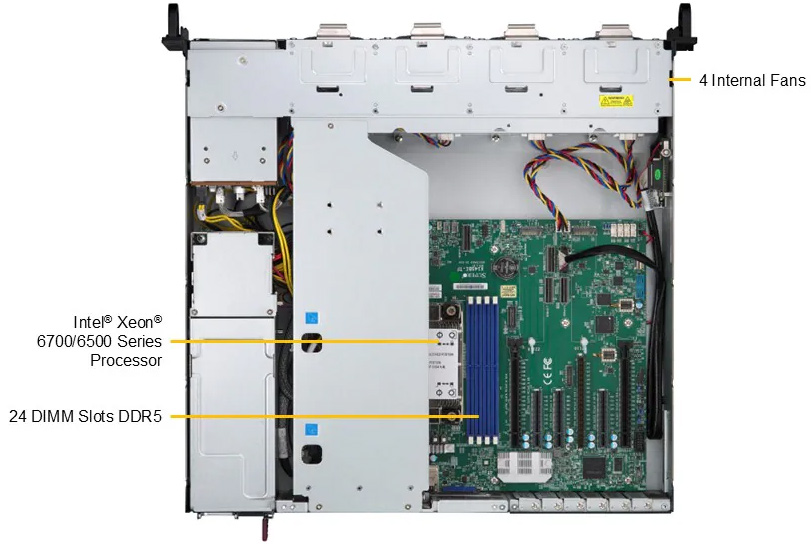

| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 205W only supported under specific conditions. |
| GPU | |
| Max GPU Count | Up to 1 double-width or 4 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory | |
| Memory | Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GBASE-T with Intel® X550 |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports |
| USB | 2 USB 3.2 Gen1 Type-A ports(front) |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | ACPI 6.5 SMBIOS 3.7 or later UEFI 2.9 |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management Power-on mode for DC power recovery |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Temperature | Monitoring for CPU and chassis environment CPU thermal trip support, PEPI |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-223M2-R000LPNDP |
| Dimensions and Weight | |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 17.72" (450 mm) |
| Package | 14.57" (H) x 23.23" (W) x 26.18" (D) |
| Weight | Gross Weight: 23 lbs (10.43 kg) Net Weight: 17 lbs (7.7 kg) |
| Available Color | Black |

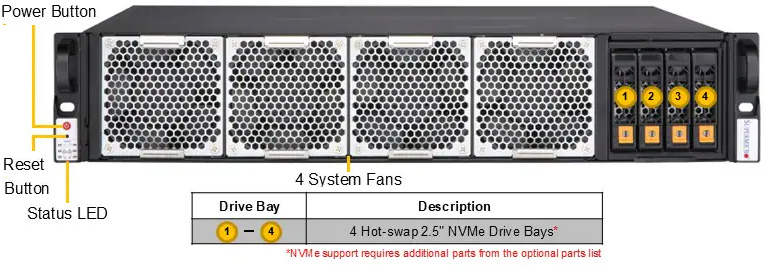

| Front Panel | |
| LED | HDD activity LAN1 activity LAN2 activity Power status System information |
| Buttons | Power On/Off UID button |

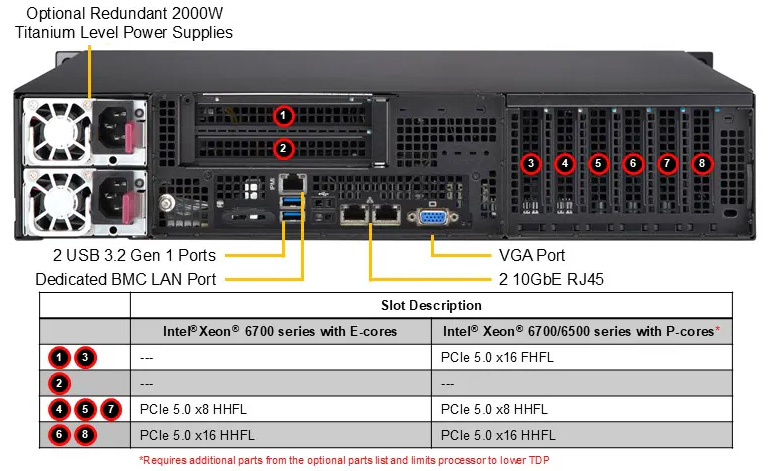

| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default* 3 PCIe 5.0 x16 (in x16) HHFL slots 3 PCIe 5.0 x8 (in x8) HHFL slots Option A* 3 PCIe 5.0 x16 (in x16) HHFL slots 3 PCIe 5.0 x8 (in x8) HHFL slots 1 PCIe 5.0 x16 (in x16) FHFL double-width slot (*Requires additional parts) |
| M.2 | 2 M.2 NVMe slots (M-key 22110) |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 4 bays 4 rear hot-swap 2.5" NVMe* drive bays (*NVMe support may require additional storage controller and/or cables) |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110) |
| System Cooling | |
| Fans | 4x 4-PIN PWM 8cm Fan(s) |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 1x 2000W | 1x 2000W Redundant Titanium Level (96%) power supply |
| 1x 1000W | 1x 1000W Redundant Titanium Level (96%) power supply |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
