AS-A126GS-TNMR
DP 10U AMD GPU System with AMD Instinct™ MI355X Accelerators
- Dual AMD EPYC™ 9005/9004 Series Processors
- Total of 8x MI355x onboard OAM GPU accelerator modules (Air-cooled)
- Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 memory (1DPC only)
(Please check System Memory Section for detail) - 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots

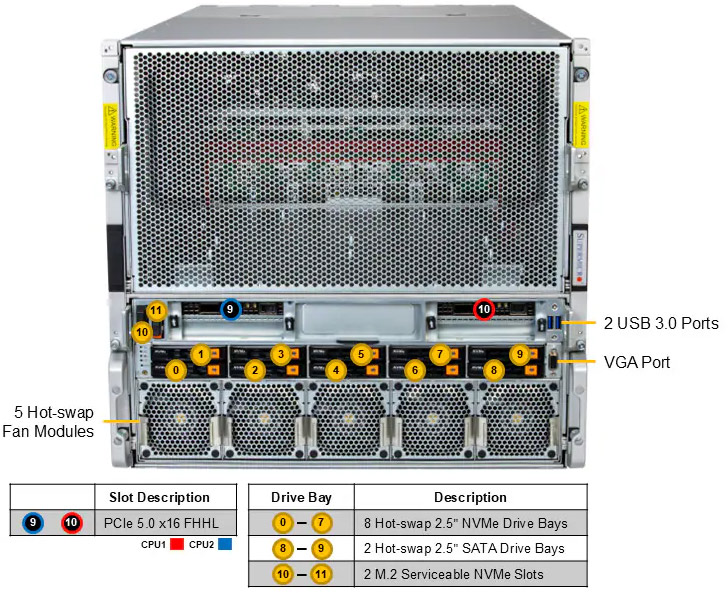

Dual 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI - 8 front hot-swap 2.5" NVMe + 2 hot-swap 2.5" SATA drive bays

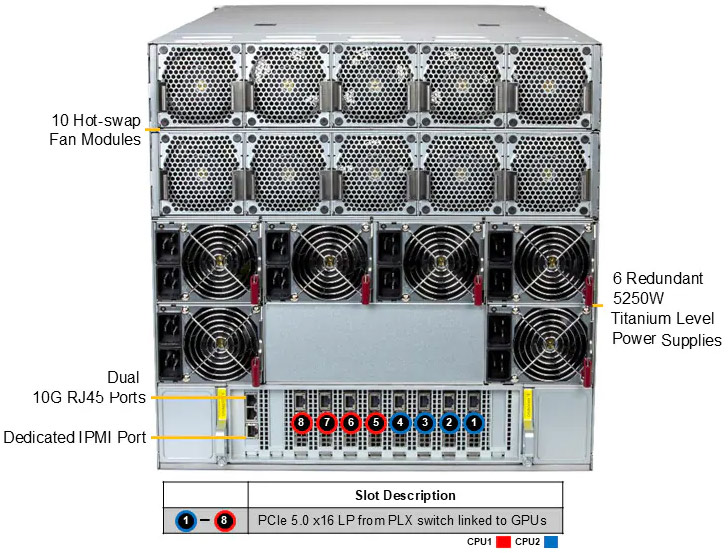

Dual Serviceable M.2 slots with RAID - Total of 6x 5250W (3+3) Titanium Level redundant power supplies
(Power supply full redundancy based on configuration and application load)
Key Applications
- Scientific Research
- High Performance Computing
- AI/Deep Learning Training
- Industrial Automation, Retail
- Data center
- Conversational AI
- Business Intelligence & Analytics
- Drug Discovery
- Climate and Weather Modeling
- Finance & Economics
Datasheet
Product Specification
| Product SKU | A+ Server AS -A126GS-TNMR |
| Motherboard | Super H14DSG-OD |
| Processor | |
| CPU | Dual processor(s) AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 384C/768T |
| Note | Supports up to 500W TDP CPUs |
| GPU | |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | AMD: Instinct™ MI355X Accelerators |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | AMD Infinity Fabric™ Link |
| System Memory | |
| Memory | Slot Count: 24 DIMM slots/1 Channels Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 Type-A ports(Rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Automatic Firmware Recovery Cryptographically Signed Firmware Runtime BMC Protections Secure Boot Secure Firmware Updates Supply Chain Security: Remote Attestation System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF2 |
| Dimensions and Weight | |
| Height | 17.2" (438.8 mm) |
| Width | 17.6" (449 mm) |
| Depth | 33.2" (843.28 mm) |
| Package | 27.95" (H) x 50.39" (W) x 28.74" (D) |
| Weight | Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activity Network activity LEDs System information (overheat/UID) UID |
| Buttons | Power On/Off UID/ Reset button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 8 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 10 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5" SATA drive bays |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | |
| Fans | Up to 19x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 6x 5250W | 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
