ARS-123GL-NRB-ALC
1U NVIDIA Vera Rubin NVL4 system with 4-port 800G ConnectX®-9
- NVIDIA Vera Rubin with 4 NVIDIA NVLink® (VR NVL4)
- Dual NVIDIA 88-core Vera CPUs with liquid cooling
- Quad NVIDIA Rubin GPUs with liquid cooling
- 1536GB onboard memory
- Quad OSFP 800Gbps Infiniband/Ethernet + Dual QSFP112 400Gbps Infiniband/Ethernet
- 2 front hot-swap E1.S NVMe drive bays
- 48-52V DC Busbar
Key Applications
- GPU Accelerated Compute
- High-performance Computing (HPC)
- AI/Deep Learning Training and Inference
Datasheet
| Product SKUs | ARS-123GL-NRB-ALC |
| Motherboard | Super GPU-NVVR-NVL4 |
| Processor | |
| CPU | Dual processor(s) NVIDIA Vera CPU with Dual 88-core processors |
| Core Count | 88C/176T; 164MB Cache per CPU |
| Note | Supports up to 550W TDP CPUs (Liquid Cooled) |
| GPU | |
| Max GPU Count | 4 onboard GPUs |
| GPU-GPU Interconnect | Sixth-Generation NVIDIA NVLink™ |
| System Memory | |
| Memory | Onboard Memory 1536GB ECC LPDDR5X |
| On-Board Devices | |
| Network Connectivity | 1 RJ45 1GbE with Realtek 4 OSFP 800Gb InfiniBand with NVIDIA ConnectX®-9 2 QSFP112 400Gb InfiniBand with NVIDIA BlueField®-4 |
| Input / Output | |
| LAN | 1 RJ45 1 GbE BMC Shared LAN port (ASPEED AST2600) |
| USB | 1 USB 3.2 Gen1 Type-C port (Front) |
| Video | 1 DisplayPort over USB Type-C port (Front) |
| TPM | 1 TPM Onboard TPM & TPM Header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer® (SCC) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Secure Firmware Updates |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Temperature | Monitoring for CPU and chassis environment; CPU Thermal Trip Support; I²C Temperature Sensing Logic |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-MG108TS-V01DP-NVL4 |
| Dimensions and Weight | |
| Height | 1.7" (43.6 mm) |
| Width | 17.26" (438 mm) |
| Depth | 30.15" (766 mm) |
| Package | 9.05" (H) x 24.8" (W) x 45.27" (D) |
| Weight | Gross Weight: 79.36 lbs (36 kg) Net Weight: 77.16 lbs (35 kg) |
| Available Color | Silver |

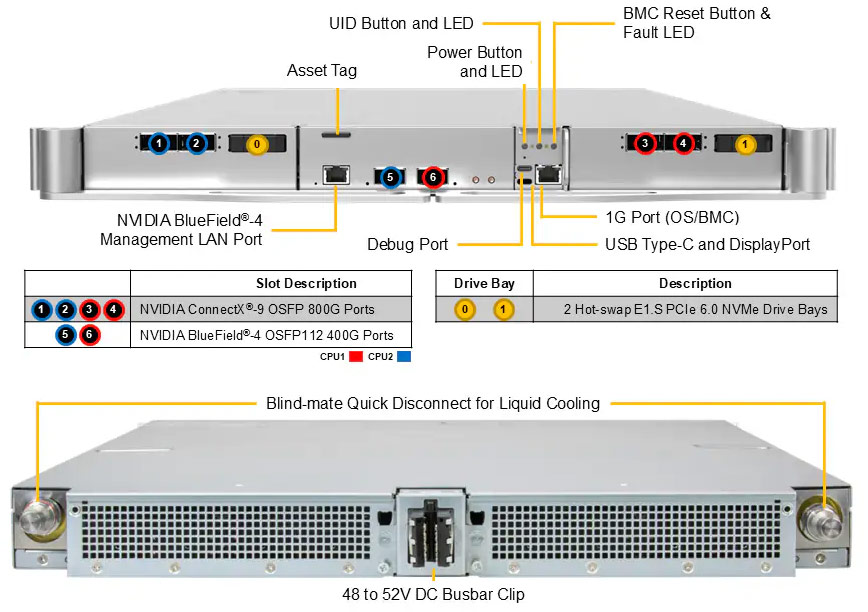

| Front Panel | |
| Buttons | Power On/Off |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 2 bays 2 front hot-swap E1.S PCIe 6.0 x4 NVMe drive bays |
| M.2 | 1 M.2 PCIe 6.0 x4 NVMe slot (M-key 22110(default)/2280) |
| System Cooling | |
| Fans | N/A |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | |
| Power Supply | Power via Busbar (48-52V DC) |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
