AS-2127H7-N

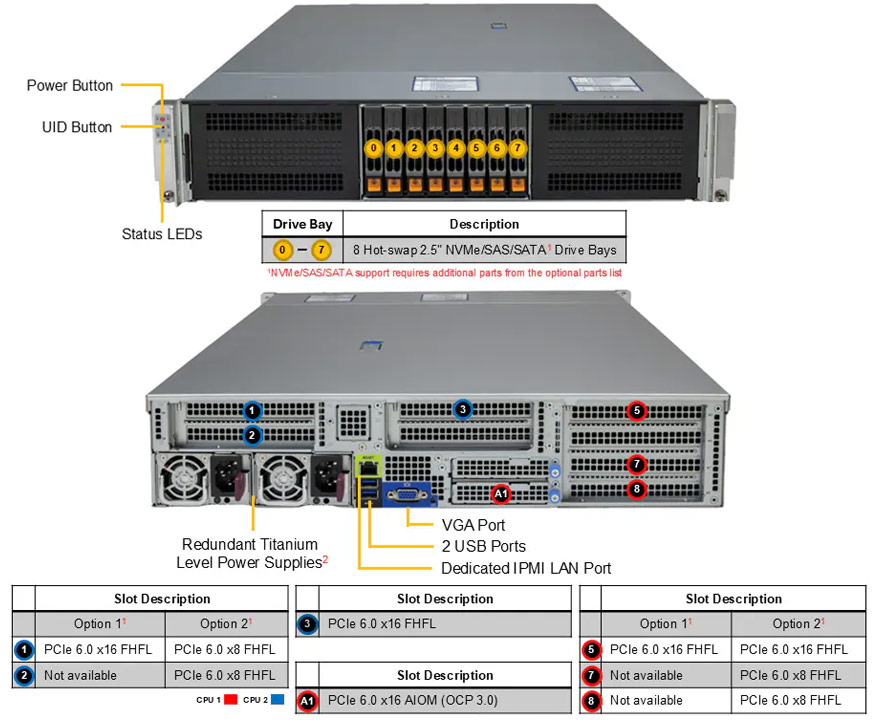

2U dual socket Hyper with up to 24 hot-swap drive bays and 4 PCIe 6.0 x16 slots + 1 PCIe 6.0 x16 AIOM slot
- Dual Socket AMD EPYC™ 9006 SP7 Series Processors up to 512 Cores
- Supports up to 4 PCIe 6.0 x16 slots
- Supports up to 32 DDR5 RDIMMs/MRDIMMs
- Flexible networking with 1 AIOM slot (OCP 3.0 SFF/TSFF compliant)
- Modular front drive bay design supporting up to 16 U.2/E3.S or 12 E1.S hot-swappable NVMe drives
- Front PCIe slot available on select configurations
- Dual Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Key Applications
- Virtualization
- Software-defined Storage
- AI Inference and Machine Learning
- Cloud Computing
- Enterprise Server
- High Performance Computing (HPC)
Datasheet
| Product SKUs | AS -2127H7-N |
| Motherboard | Super H15DPH |
| Processor | |
| CPU | Dual processor(s) AMD EPYC™ 9006 SP7 Series Processors |
| Core Count | Up to 512C/1024T |
| Note | Supports up to 600W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 8TB 8000MT/s ECC DDR5 RDIMM/3DS RDIMM Max Memory (1DPC): Up to 8TB 12800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) USB Keyboard support ACPI 6.6 UEFI 2.11 SMBIOS 3.8 or later |
| Management | |
| Software | SuperCloud Composer® (SCC) Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMIView |
| Power configurations | ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| Fan | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-HS202-R000NFP |
| Dimensions and Weight | |
| Height | 3.5" (88.9 mm) |
| Width | 17.26" (438.4 mm) |
| Depth | 32.64" (829 mm) |
| Package | 10.4" (H) x 26.5" (W) x 43.6" (D) |
| Weight | Gross Weight: 50.4 lbs (22.9 kg) Net Weight: 25.3 lbs (11.5 kg) |
| Available Color | Black front & silver body |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Option A* 4 PCIe 6.0 x16 FHFL double-width slots 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) Option B* 3 PCIe 6.0 x16 FHFL double-width slots 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) Option C* 2 PCIe 6.0 x16 FHFL double-width slots 2 PCIe 6.0 x8 FHFL slots 1 PCIe 6.0 x16 AIOM slot (OCP 3.0 compatible) (*Requires additional parts, please see the optional parts list for details.) |
| CXL Support | Up to 4 CXL 3.1 x16 devices |
| Drive Bays / Storage | |
| Drive Bays Configuration | Option A: Total 24 bays24 front hot-swap 2.5" SAS*/SATA* drive bays Option B: Total 16 bays16 front hot-swap 2.5" PCIe 6.0 NVMe* drive bays Option C: Total 16 bays16 front hot-swap E3.S 1T PCIe 6.0 NVMe* drive bays Option D: Total 12 bays12 front hot-swap E1.S PCIe 6.0 NVMe* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; Optional, hot-swappable with RAID) |
| System Cooling | |
| Fans | 6 counter-rotating 60x60x56mm Fan(s) |
| Air Shroud | 2 Air Shrouds |
| Power Supply | |
| 2x 2000W | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 1600W | 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 2600W | 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 2000W | 2x 2000W Redundant (1 + 1) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
