SYS-112B-WN2T

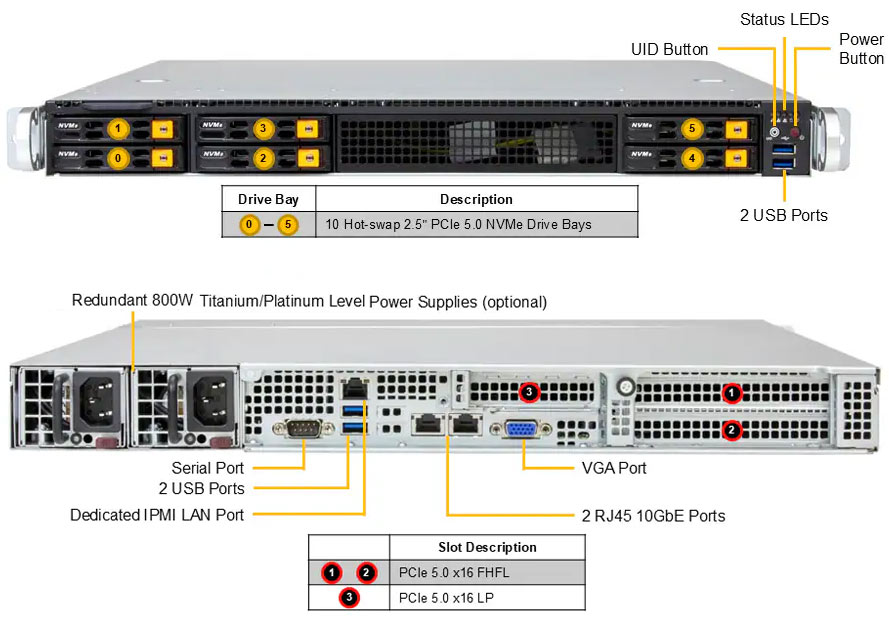

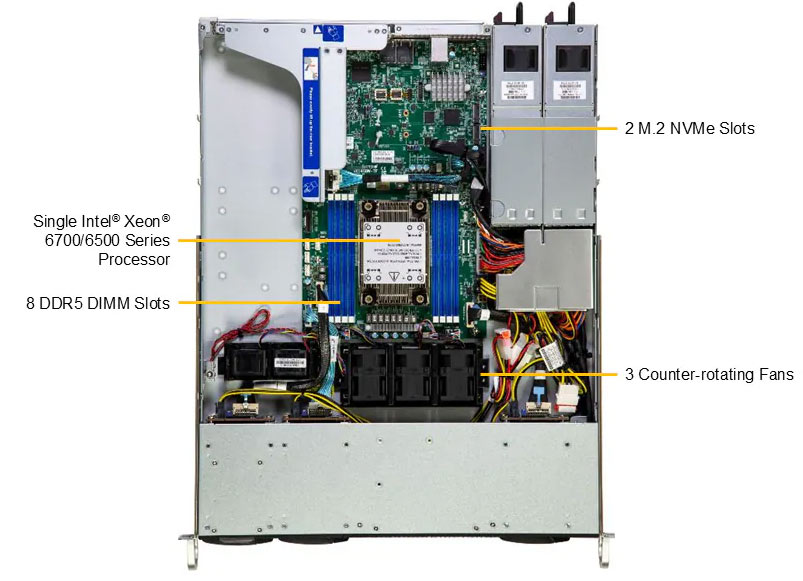

1U Single processor WIO server. 6 hot-swap 2.5" NVMe bays and 3 PCIe 5.0 slots
- Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 350W with air cooling
- Up to 2TB ECC RDIMM DDR5-6400 or 512GB MRDIMM DDR5-8000 in 8 DIMM slots
- Support for up to 2 single-width PCIe GPU accelerator cards
- Up to 2 PCIe 5.0 x16 FHFL + 1 PCIe 5.0 x16 LP slots
- Onboard 2 RJ45 10GbE
- Up to 6 front hot-swap 2.5" NVMe drive bays
- 2 Redundant 800W Platinum Level Hot-plug power supplies
Key Applications
- Virtualization
- Cloud Computing
- Data Center Optimized
- Firewall Applications
- GPU Accelerated Compute
- CDN/vCDN/Cloud CDN
Datasheet
| Product SKUs | SYS-112B-WN2T |
| Motherboard | Super X14SBW-TF |
| Processor | |
| CPU | Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Core Count | P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 2 single-width GPUs |
| System Memory | |
| Memory | Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only) |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Network Connectivity | 2 RJ45 10GbE with Intel® X550 View AOC Options |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports |
| USB | 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front) |
| Video | 1 VGA port |
| Serial | 1 COM port(rear) |
| TPM | 1 TPM header |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-112TS-R000WNDP |
| Dimensions and Weight | |
| Height | 1.7" (43 mm) |
| Width | 17.2" (437 mm) |
| Depth | 22" (559 mm) |
| Package | 8" (H) x 27" (W) x 24" (D) |
| Weight | Gross Weight: 29 lbs (13.15 kg) Net Weight: 17.6 lbs (8 kg) |
| Available Color | Black |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | 2 PCIe 5.0 x16 FHFL slots |
| Drive Bays / Storage | |
| Drive Bays Configuration | Default: Total 6 bays 6 front hot-swap 2.5" NVMe drive bays |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling | |
| Fans | Up to 5x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 2x 800W | 2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
