AS-2115HV-TNRT
2U UP rackmount workstation with 8 hot-swap NVMe/SAS/SATA drive bays and PCIe 5.0
- 2600W Redundant Power Supplies Titanium Level Certified
Optional Configuration: 1600W and 2000W Redundant Power Supplies (*Full redundancy based on configuration and application load) - AMD Ryzen™ Threadripper™ PRO 9000WX/7000WX series up to 350W TDP Processors, CPU and Memory Overclocking supported
- 8 DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-6400MT/s Up to total 2TB
- 1 AIOM/OCP NIC 3.0 Slot (Optional parts required for 2nd AIOM slot)
Up to 4 PCIe 5.0 x16 FHFL slots or 8 PCIe 5.0 x8 FHFL slots - 8 Hot-swap 2.5" NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor: 2280/22110M.2 Key: M-Socket
Key Applications
- Deep Learning/AI/Machine Learning Development
- Cloud Gaming
- Rack Workstation
Datasheet
Product Specification
| Product SKUs | A+ Workstation AS -2115HV-TNRT |
| Motherboard | Super H13SRH |
| Processor | |
| CPU | Single Socket sTR5 (LGA-4844) AMD Ryzen™ Threadripper PRO 9000WX/7000WX series |
| Core Count | Up to 96C/192T; Up to 384MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU | |
| Max GPU Count | Up to 4 double-width or 8 single-width GPUs |
| Supported GPU | NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX A6000, RTX 6000 Ada Generation, L40S, L4 AMD PCIe: Instinct™ MI210 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory | |

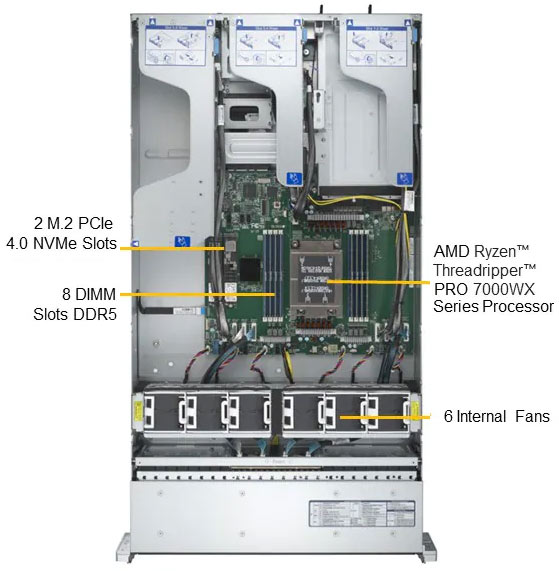

| Memory | Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Video | 1 VGA port |
| System BIOS | |
| BIOS Type | AMI 256MB SPI Flash |
| BIOS Features | UEFI 2.8 SMBIOS 3.5 or later UEFI 2.9 Plug and Play (PnP) USB Keyboard support ACPI 6.5 SMBIOS 3.6 or later |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism, |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-HS201-R000NFP |
| Dimensions and Weight | |
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (437 mm) |
| Depth | 31.74" (806.2 mm) |
| Package | 9.96" (H) x 26.46" (W) x 43.31" (D) |
| Weight | Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg) |
| Available Color | Silver |
| Front Panel | |
| LED | HDD activity LAN1 activity Power status System information |
| Buttons | Power On/Off UID button |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A 8 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) |
| Drive Bays / Storage | |

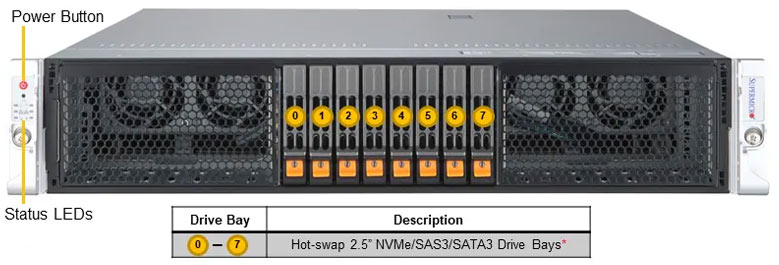

| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) |
| System Cooling | |
| Fans | 6x 6cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Power Supply | |
| 2x 2600W | 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 1600W | 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| 2x 2000W | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
