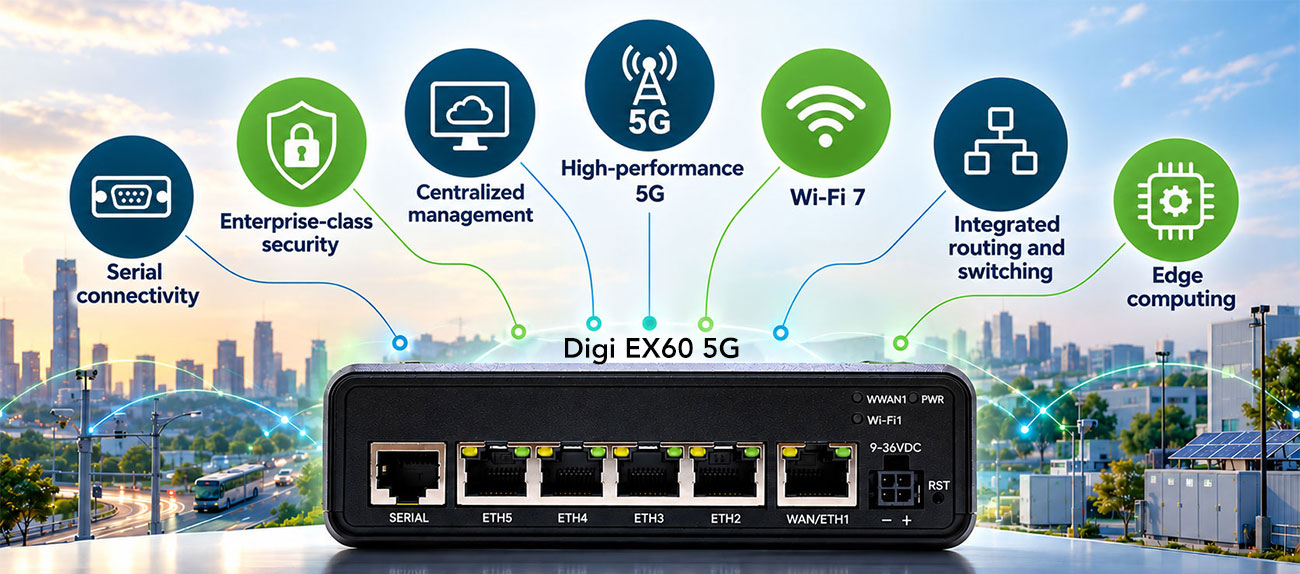

Digi EX60 5G
Next-generation 5G enterprise branch router with Wi-Fi 7, 2.5 GbE and centralized fleet management for distributed enterprise environments
- 5G eMBB enterprise branch router based on Qualcomm SDX72
- Built on a 3GPP Release 17 5G platform enabling higher uplink performance, improved spectral efficiency and enhanced enterprise feature support
- Wi-Fi 7 tri-band, dual-concurrent 2.4 and 5/6 GHz for high-capacity branch wireless
- 2.5 GbE WAN port eliminates cellular throughput bottlenecks
- Four 1 GbE LAN ports for wired distribution to branch devices
- Dual SIM slots for carrier flexibility and wireless failover, including embedded Digi eSIM for zero-touch device setup
- Locking USB-C and RJ-50 serial for secure peripheral and OOB management connections
- Compact indoor enclosure with desktop and wall mounting options
- Value-added services include DANI, Digi Containers, Digi WAN Bonding 5G/LTE WAN aggregation with immediate failover and Digi Mobile VPN for secure, persistent mobile connectivity
- Includes the Digi 360 solution with limited lifetime warranty, customer care and Digi Remote Manager to streamline setup, deployment, mass configuration and lifecycle management
Datasheet
| Model | Digi EX60 5G with Digi 360* |
|---|---|
| WIRELESS INTERFACES | |
| CELLULAR / WWAN** | |
| 5G NR SUB-6 GHZ QUALCOMM SDX72, COMPLIANT WITH 3GPP RELEASE 17, WITH LTE-ADVANCED PRO FALLBACK | 5G NR bands: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48 (CBRS), n66, n70, n71, n77, n78; Power Class 1.5 (29 dBm): n38, n41, n77, n78; 4G LTE bands: B2, B4, B5, B7, B12, B13, B14 (FirstNet®), B17, B25, B26, B29, B30, B38, B41, B42, B43, B48 (CBRS), B66, B71 |
| CONNECTORS | (4) 50 Ω SMA (center pin: female) |
| SIM SLOTS / ESIM SUPPORT | (2) Nano-SIM (4FF) slots; soldered MFF2 Digi eSIM with eUICC (SGP.32) for remote provisioning and carrier switching (user selectable between one of the 4FF and eSIM slots); Dual SIM Dual Standby (DSDS) support |
| SIM SECURITY | SIM slot cover plate with security screws included |
| WI-FI | |
| TECHNOLOGY | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) radio supporting tri-band dual-concurrent 2.4 and 5/6 GHz operation |
| SECURITY | WPA2 and WPA3 Personal and Enterprise, Open and Open Enhanced security standards |
| HOTSPOT | Captive portal with customizable splash page, terms and conditions, shared password, user-specific password, RADIUS authentication |
| THIRD-PARTY SERVICES | Content filtering, embedded advertising |
| MODES | Up to 8 access points and up to 64 clients |
| CONNECTORS | Internal antennas |
| WIRED INTERFACES | |
| ETHERNET | |
| PORTS / CONNECTOR | (1) WAN 2.5 GbE (4) LAN 1 GbE; all ports WAN/LAN switchable |
| SERIAL | |
| PORTS / CONNECTOR | (1) EIA RS-232 DTE / RS-485, 10-pin RJ-50; for out-of-band management of connected network appliances and servers |
| USB | |
| PORTS / CONNECTOR | (1) USB 3.1 with DRD (Dual-Role Data) / DRP (Dual-Role Power) support, Type-C |
| SOFTWARE AND MANAGEMENT* | |
| REMOTE MANAGEMENT | Digi Remote Manager (cloud based); SNMP v2c/v3 (user installed/managed) |
| LOCAL MANAGEMENT | Web UI (HTTPS); CLI (SSH, serial) |
| MANAGEMENT TOOLS | SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog |
| MEMORY | |
| RAM / FLASH | 2 GB / 8 GB |
| POWER REQUIREMENTS | |
| POWER INPUT | 9 – 36 VDC, 4-pin Molex power input connector; AC power supply included (North America) or USB-C power input with locking connection |
| POWER CONSUMPTION | 6 W typical (idle); 23 W peak |
| PHYSICAL | |
| DIMENSIONS | 192 mm x 133 mm x 38 mm (7.56 in x 5.24 in x 1.5 in) |
| WEIGHT | 0.74 kg (1.6 lb) |
| STATUS LEDS | Power, WWAN, Wi-Fi, LAN/WAN status |
| ENCLOSURE / RATING | ABS plastic indoor enclosure |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | −30 °C to 60 °C (−22 °F to 140 °F) |
| STORAGE TEMPERATURE | −40 °C to 85 °C (−40 °F to 185 °F) |
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) |
| APPROVALS** | |
| CELLULAR | PTCRB, AT&T, T-Mobile, Verizon; visit digi.com/resources/certifications for latest approvals and updates |
| SAFETY / SECURITY | IEC 62368-1, EN 62311, FIPS 140-3 |
| EMISSIONS / IMMUNITY | FCC Part 15 Class B, ICES-003 |
| WARRANTY*** | |
| PRODUCT WARRANTY | Limited lifetime |
*Includes the Digi 360 solution for Digi EX60 5G (1-year) with Digi Remote Manager, limited lifetime warranty and customer care included for the duration of the Digi 360 subscription.
**Visit digi.com/resources/certifications for latest approvals and updates.
***Limited lifetime warranty with an active Digi 360 subscription.
For a comprehensive list of operating system features, please visit digi.com/solutions/by-technology/dal-operating-system/features
