AD-AIMB-522
AMD Ryzen™ AM4 5000 Series MicroATX Motherboard with 1 DP/HDMI/VGA, 6 COM, 4 GbE LAN
- Supports AMD AM4 Ryzen™ 5000 series processor with X570 chipset
- Supports PCIe Gen4, max up to 8x USB 3.2 Gen2, 4x USB 3.0 Gen2, 3x USB 2.0, 4x SATAIII, 4x 10GbE LANs, M.2 (M Key)
- Supports triple displays. (DP, VGA, HDMI display)
- Supports DeviceOn and Embedded Software APIs
Model | AIMB-522G4-00A1 | AIMB-522G2-00A1 |
| Form Factor | ||
| Form Factor | Micro ATX | Micro ATX |
| Processor | ||
| CPU TDP | 105W/65W | 105W/65W |
| Core Number | up to 16C | up to 16C |
| Frequency | 3.4GHz~3.9GHz | 3.4GHz~3.9GHz |
| L3 Cache | 16MB~64MB | 16MB~64MB |
| BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Chipset | AMD X570 | AMD X570 |
| Memory | ||
| Max. Capacity | 128GB | 128GB |
| Technology | Dual Channel DDR4 3200MHz UDIMM | Dual Channel DDR4 3200MHz UDIMM |
| ECC Support | No | No |
| Socket | 4 x 288-pin DIMM | 4 x 288-pin DIMM |
| Display | ||
| DDI (HDMI/DVI/DisplayPort) | HDMI/DP/VGA | HDMI/DP/VGA |
| Multiple Display | Dual/ Triple | Dual/ Triple |
| Expansion | ||
| PCI Express x 16 | 1 | 1 |
| PCI Express x 4 | 2 | 2 |
| Ethernet | ||
| Controller | 2 x INTEL LAN i225LM, 2 x Realtek 8119i | 2 x INTEL LAN i225LM, 2 x Realtek 8119i |
| Speed | Up to 2.5GbE | Up to 2.5GbE |
| Connector | RJ45 x 2 | RJ45 x 2 |
| Audio | ||
| CODEC | Realtek ALC888S | Realtek ALC888S |
| Connector | 2 (Line out, Mic-in) | 2 (Line out, Mic-in) |
| Watchdog Timer | ||
| WatchDog Timer | Yes | Yes |
| Storage | ||
| SATA | 4 x SATA III (Max. Data Transfer Rate600 MB/s) | 4 x SATA III (Max. Data Transfer Rate600 MB/s) |
| RAID | Software RAID 0, 1, 5, 10 | Software RAID 0, 1, 5, 10 |
| I/O | ||
| GPIO | 8-bit GPIO | 8-bit GPIO |
| USB3.0 | 8 | 8 |
| USB2.0 | 3 | 3 |
| COM Port | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) |
| TPM | 1 | 1 |
| Power | ||
| Power Type | ATX | ATX |
| Connector | ATX24P | ATX24P |
| Environment | ||
| Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance | 3.5 Grm (Non-Operation Mode) | 3.5 Grm (Non-Operation Mode) |
| Physical | ||
| Dimension (mm) | 244 x 244 mm | 244 x 244 mm |
| Weight | 1.2 kg (2.64 lb), weight of total package | 1.2 kg (2.64 lb), weight of total package |
| Operating System | ||
| Microsoft Windows | Yes | Yes |
| Linux | Yes | Yes |
| SUSIAccess | Yes | Yes |
| Ubuntu | V | V |
AD-AIMB-522, industrial Micro-ATX motherboard designed for AI image processing in automation and surveillance.
Powered by AMD first desktop processor “Ryzen™ Embedded 5000” with up to 8 high performance “Zen 3” cores, AD-AIMB-522 achieves new level of processing and power efficiency.
AD-AIMB-522 come with a full suite of technologies to elevate your applications including high computing performance-efficiency, high expandability with PCIe Gen4, and up to 4x Gigabit Ethernet ports and 8x USB 3.2, yielding an ideal solution for factory automation, smart logistics and intelligent surveillance.
Empowering Edge AI with AMD Technology
The advent of edge computing has revolutionized the IoT landscape, taking it to new heights by enabling local nodes to host individual services and applications. Key requirements for successful edge computing in various industries include computing power, low latency, data security, analytics, and AI capabilities.
The High-Performance Edge Platform, featuring the latest industrial motherboards, delivers a comprehensive range of cutting-edge benefits for edge computing. This platform empowers customers to effortlessly upgrade their edge devices, equipping them to handle the escalating demand for local services.

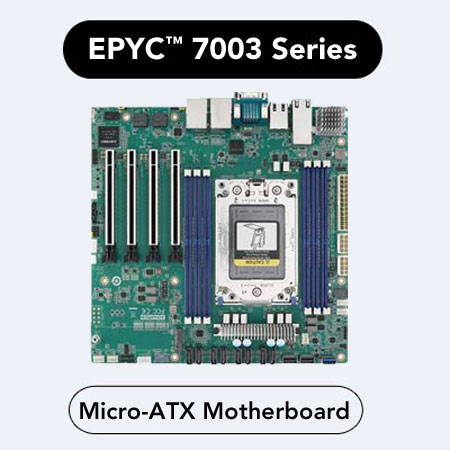

- AIMB-592
- 64-core CPU and up to 768GB DDR4 memory
- Four PCIe Gen 4.0 x16 slots, high bandwidth for double-deck GPU
- Dual 10GbE LAN provides high-throughput data connectivity
- AIMB-523
- Desktop APU up to 12C computing power
- 6 x LAN ports (2.5GbE), 2 for IP-based devices
- PCIe Gen5 x16 slot and 8 x USB 3.2, 1 x M.2 M-Key for NVMe SSD

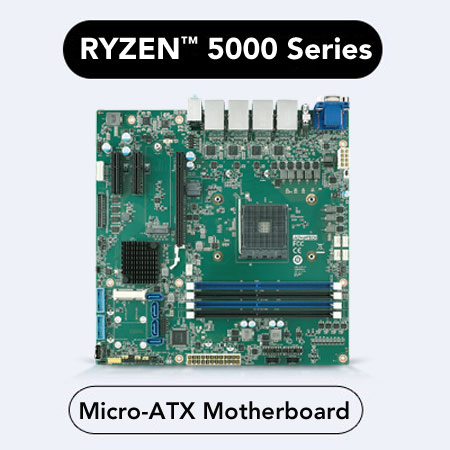

- AIMB-522
- Energy-efficient desktop CPU
- High-speed PCIe Gen4 x16 slot
- Rich I/O: Triple displays, 8 x USB 3.2 10Gbps, 2 x USB 2, 4 x SATA and 4 x GbE LAN ports
