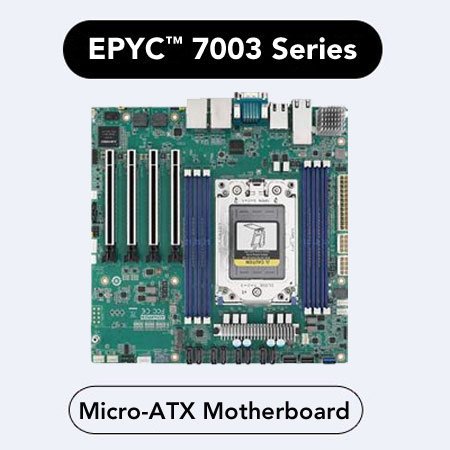

AD-AIMB-592
AMD EPYC™ 7003 MicroATX with 1 VGA, 1 COM, 2 10GbE LANs, 2 2.5GbE LANs, 5 USB 3.2, 8 SATA III, 1 M.2(M key)
- Supports AMD EPYC 7003 processor
- Supports 128GB DDR4 3200MHz with 6 RDIMMs
- Supports 4 PCIe Gen 4 x16 slots
- Supports high speed 2x 10Gbe LANs, 2x 2.5GbE LANs
- Supports 2 x PCIe x4 slimline SAS 4i
- Supports Ubuntu 20.04 LTS; SUSI API and WISE-DeviceOn
The high-performance, Micro-ATX form factor AD-AIMB-592 motherboard leverages AMD EPYC™ 7003 Series Processors and 4 x steel PCIe 4.0 x16 slots to deliver excellent computing power and support GPU extension.
Indeed, AD-AIMB-592 supports up to 64 CPU cores and onboard 768GB memory (via 6 x DDR4 RDIMM slots) to deliver best-in-class performance. It features dual 10Gbe LAN, dual 2.5GbE LAN, and dual slimline functions (dual PCIe 4.0 x4) to augment bandwidth networking and empower big data cloud services while maximizing transmission efficiency. It also provides intelligent remote management services via M.2 M-Key and IPMI 2.0.
This combination of features and attributes makes AD-AIMB-592 an ideal solution for data-intensive applications at the edge.
| Model | AIMB-592SF-0AA1 | AIMB-592SL-0AA1 |
| Form Factor | ||
| Form Factor | Micro ATX | Micro ATX |
| Processor | ||
| CPU TDP | Up to 225W | Up to 225W |
| Core Number | Up to 64C | Up to 64C |
| Frequency | 3.675 ~ 3.7GHz | 3.675 ~ 3.7GHz |
| L3 Cache | Up to 256MB | Up to 256MB |
| BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Memory | ||
| Max. Capacity | 128GB | 128GB |
| Technology | Six Channel DDR4 3200MHz RDIMM | Six Channel DDR4 3200MHz RDIMM |
| ECC Support | Yes | Yes |
| Socket | 6 x 288-pin DIMM | 6 x 288-pin DIMM |
| Expansion | ||
| PCI Express x 16 | 4 | 4 |
| Ethernet | ||
| Controller | 2 x INTEL LAN I226LM, 2 x INTEL LAN X550 | 2 x INTEL LAN I226LM, 2 x INTEL LAN X550 |
| Speed | Up to 10GbE | Up to 10GbE |
| Connector | RJ45 x 4 | RJ45 x 4 |
| Watchdog Timer | ||
| WatchDog Timer | Yes | Yes |
| Storage | ||
| SATA | 8 x SATAIII (Max. Data Transfer Rate 600 MB/s) | 8 x SATAIII (Max. Data Transfer Rate 600 MB/s) |
| I/O | ||
| GPIO | 8-bit GPIO | 8-bit GPIO |
| USB 3.2 | 5 | 5 |
| USB2.0 | 3 | 3 |
| COM Port | 1 (1 x RS-232) | 1 (1 x RS-232) |
| TPM | TPM 2.0 | TPM 2.0 |
| Power | ||
| Power Type | ATX | ATX |
| Connector | ATX24P | ATX24P |
| Environment | ||
| Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance | 3.5 Grm (Non-Operation Mode) | 3.5 Grm (Non-Operation Mode) |
| Physical | ||
| Dimension (mm) | 244 x 244 mm | 244 x 244 mm |
| Weight | 1.9 kg (4.18 lbs) | 1.9 kg (4.18 lbs) |
| Operating System | ||
| Microsoft Windows | Yes | Yes |
| Linux | Yes | Yes |
| SUSIAccess | Yes | Yes |
| Ubuntu | V | V |
High-Performance Edge Computing
The advent of edge computing has revolutionized the IoT landscape, taking it to new heights by enabling local nodes to host individual services and applications. Key requirements for successful edge computing in various industries include computing power, low latency, data security, analytics, and AI capabilities.
The High-Performance Edge Platform, featuring the latest industrial motherboards, delivers a comprehensive range of cutting-edge benefits for edge computing. This platform empowers customers to effortlessly upgrade their edge devices, equipping them to handle the escalating demand for local services.
