AD-ARK-2251
Intel 13th Generation Core™ i3/i5/i7 Modular Fanless Box PC
- Intel 13th Gen Intel® Core™ U-series 10 cores (2 P-cores and 8 E-cores) SoC

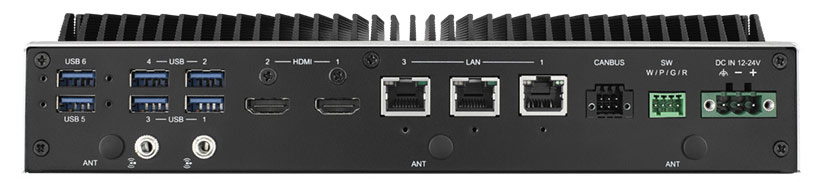

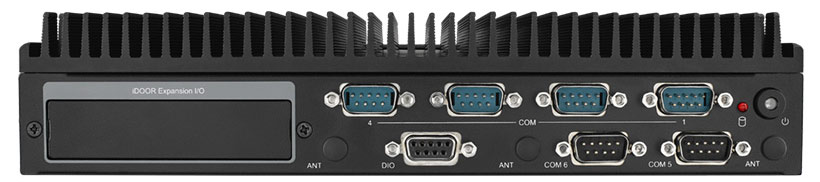

- 3x Intel GbE, 6x USB 3.1, 6x RS-232/422/485, 2x HDMI and 2x CANBus
- Dual Channel DDR5-4800 memory up to 64GB
- Support NVMe storage devices with PCIe x4
- 12-24V DC wide range power input
- -20-60°C wide operating temperature
- Internal expansions with mPCIe, M.2 E and M key, and USB 2.0
- Optional iDoor modules for IO expansion, TPM module and PoE module
| Model | ARK-2251-S2A1 | ARK-2251-S3A1 | ARK-2251-S7A1 | ARK-2251-S2A1U | ARK-2251-S3A1U |
| Processor | Core i3-1315UE | Core i5-1335UE | i7-1365UE | Core i3-1315UE | Core i5-1335UE |
| Core Number | 2P+4E | 2P+8E | 2P+8E | 2P+4E | 2P+8E |
| Frequency | 1.2 GHz | 1.3 GHz | 1.7 GHz | 1.2 GHz | 1.33 GHz |
| Memory | DDR5 4800 MHz , 64GB (up to 32GB per SO-DIMM) , 2 x 262 pin DDR5 SO-DIMM | ||||
| Storage | 1 x PCIe x4 with M.2 M key, 1 x Full-size mini-PCIe | ||||
| Expansion | 1 x full size Mini PCIe with SIM holder, 1 x M.2 2230 E key + 1 x M.2 2280 M key | ||||
AD-ARK-2251, a sleek and full-function fanless embedded computer powered by 13th Gen Intel® Core™ i3/i5/i7 processors. This cutting-edge system delivers robust computing power, streamlined processing, and real-time analytics and stands out with its 19+ I/O connections, making it easy to connect with various sensors and devices.
You can also add features such as fieldbus protocol, with 10+ iDoor modules. AD-ARK-2251 supports wireless connections with Wi-Fi 6 and 5G modules via an M.2 slot, adding an extra layer of security and remote management capabilities through optional TPM 2.0 modules and DeviceOn software. Its slim profile, with a height of only 2.13 inches makes it ideal for various applications and environments such as conveyor systems and autonomous mobile robots (AMRs).
