P-BCO-6000-RPL
Industrial Computer with 12th/13th Gen Intel® IoTG Processor, 2x DP, 1x HDMI, 2x COM, 3x LAN, 1x PCIe x16 (or 2x PCIe x8) Expansion
- Support 12th/13th Gen Intel® IoTG Processor Core i9/i7/i5/i3, Pentium, Celeron (35W only)
- 2x DDR4 SODIMM. Max. up to 64GB (Default: 8GB)2x Display Port, 1x HDMI, Triple Independent Display
- 3x 2.5GbE LAN
- 1x M.2 M-Key (Default: 128GB SSD), 1x M.2 E-key, 1x M.2 B-key
- 4x COM, 6x USB 3.2 Gen 2, 2 USB 3.2 Gen 1, x2 USB 2.01x PCIe x16 Slot (or 2x PCIe x8 Slot)
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature 0°C to 50°C
- TPM 2.0 Supported
- CE, FCC Class A, UL 62368 Ed. 3
| System | |
| Processor | Intel® IOTG: 12th/13th Gen Intel® Core™ Processor i9/i7/i5/i3, Pentium, Celeron (35W only) |
| System Chipset | Intel® Q670E Express Chipset |
| LAN Chipset | Intel® I226LM PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN |
| Audio Codec | Realtek ALC897 |
| System Memory | 2x DDR4 3200MT/s SODIMM. Max. up to 64 GB (Default: 8GB & Non- ECC supported) |
| Graphics | Intel® UHD Graphics GPU Graphics |
| BIOS | AMI UEFI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| AI Accelerator | Supports 1x Hailo-8™ module through M.2 B-Key |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x Dual Mode DisplayPort 1.4a Max Resolution 4096 x 2304 @60Hz |
| HDMI | 1x HDMI 1.4b Max Resolution 4096 x 2304 @24Hz |
| Multiple Display | 3x Independent Displays |
| Storage | |
| M.2 M-Key | 1x M.2 M-key Type (2242/2280): Support 1x PCIe x4 Gen 3 NVMe SSD From PCH (Default 128GB SSD) Support B+M Key, AI/Storage Module (Pending) |
| Expansion | |
| M.2 B-Key | 1x M.2 B-key ( 3042) Support 1x Nano SIM Holder Support 1x PCIe x1, 1x USB 3.2 Gen 2, 1x USB 2.0, 5G/4G/LTE Module |
| M.2 E-Key | 1x M.2 E key ( 2230) Support 1x PCIe x1, 1x USB 2.0; Support CNVi Devices Supported: Intel® AX210 Wi-Fi 6E & BT-5.1 (vPro Supported) |
| PCIe | Optional: 2x PCIe x8 or 1x PCIe x16 (Support A2000 GPU) |
| Network Modules | Optional Through M.2 B-Key: 5G/4G/LTE Module |
| I/O | |
| Audio | Line-out/Mic-in |
| COM | 4x DB9 COM1: RS232/422/485 COM2: RS232/422/485 COM3: RS485 COM4: RS485 |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 3x RJ45 (2.5GbE) |
| USB | 6x USB 3.2 Gen2 2x USB 3.2 Gen1 2x USB 2.0 Type-A |
| Others | 5x Antenna Holes 1x Power button 1x HD LED 1x Power LED 1x Default Industrial Fan |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Kernel |
| Power | |
| Power Adapter | Optional AC/DC 24V/9.2A, 220W for CPU and GPU Expansion |
| Power Mode | AT, ATX (Default ATX) |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 4-pin Terminal Block |
| Environment | |
| Operating Temperature | 0°C to 50°C (35W CPU) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A |
| Vibration | With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimensions (WxDxH) | 330 x 240 x 69mm |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
BCO-6000-RPL Series: High Performance Industrial Computer
The BCO-6000-RPL is an edge inferencing computer purpose-built to drive real-time edge AI workloads and IoT consolidation. By leveraging PCIe expansion, it can support various hardware accelerators to streamline resource-intensive deployment applications.
- 12th/13th/14th Generation Intel Core TE Processors
- Slim, Low-Profile, and Short-Depth Chassis
- Rich, High-Speed I/O
- PCIe Expansion for GPU Integration
- Industrial-Grade Design
- Edge AI Ready with HAILO-8 AI Accelerator
Powerful, Multi-core Processing
- Up to 24 Cores: 8 P-Cores, 16 E-Cores
- Up to 32 Threads
- Increased L2 & L3 Cache
- 35W TE (Power-Optimized Embedded) Processors
GPU Integration for Edge Processing
- 1x PCIe x16 Gen 4 or 2x PCIe x8 Gen 4
- Supports GPU Expansion (NVIDIA RTX A2000)

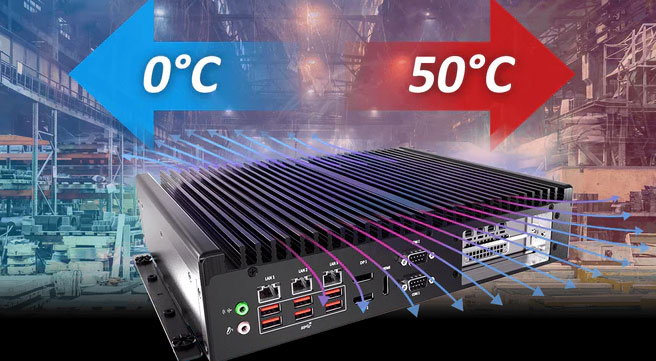

Industrial Grade Design
Following a slim industrial grade design, the BCO-6000-RPL is engineered with operational reliability in harsh industrial environments and conditions.
- Fanless, Semi-Rugged Design
- Wide Operating Temperature: 0°C to 50°C
- Shock & Vibration Resistant (MIL-STD-810G Compliant)
- Wide Power

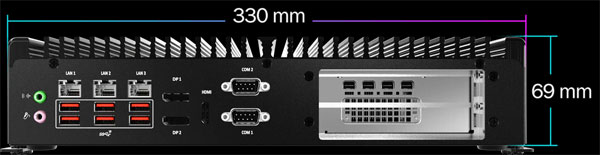

Slim Design for Maximum Performance
The BCO-6000-RPL features a low profile, slim design that makes it optimal to fit within many industrial deployments.

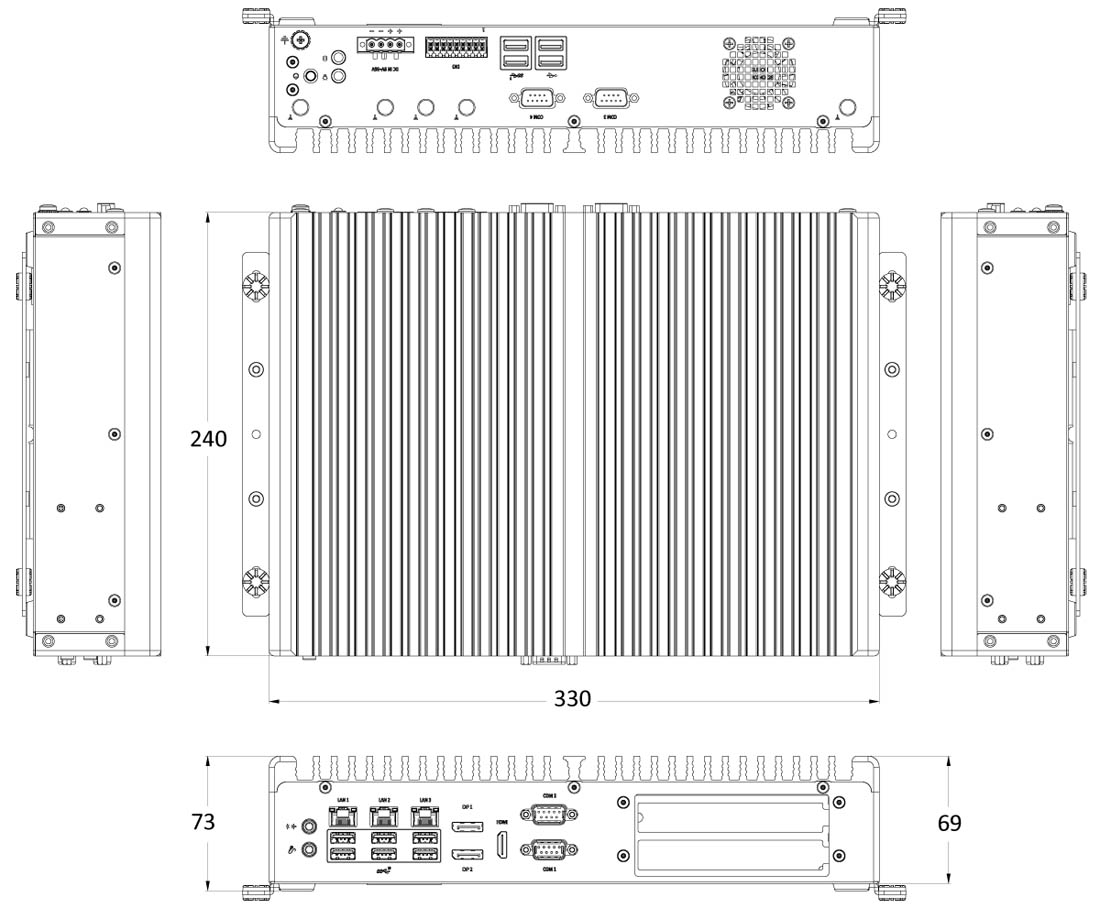

Mechanical Layout
Product Dimension
BCO SERIES: SEMI-RUGGED INDUSTRIAL COMPUTERS
An embedded industrial computer does not need to break the bank to deliver the necessary performance at the rugged edge. Finding the right industrial solution that strikes the perfect balance between size, performance, and cost efficiency is a steep challenge for many rugged edge applications. Achieving operational objectives can often present a dilemma, having to decide which of the three are a priority over another.
The BCO Series are designed and built to withstand deployment in challenging environments, managing workloads at the rugged edge for processing, storage, connectivity, and machine learning. Available in four series, the BCO-500, BCO-1000, BCO-3000, and BCO-6000 Series are capable of accommodating various edge workloads from power efficient computers to scalable GPU computers.
Intel® Alder Lake / Intel® Atom® Processors
- Mini Form Factor
- High-Speed I/O Ports and Wireless Connectivity
- Competitive Price and Long Lifetime Support
Intel® Alder Lake / Intel® Atom® Processors
- Power Efficient 12W Performance
- Digital and Analog I/O Connectivity
- EDGEBoost I/O Technology
- Competitive Price and Long Lifetime Support
Intel® Core Processors
- Powerful 35W Edge Performance
- Rich I/O Ports and M.2 Expansions
- Up to Triple Displays / Triple RJ45 LAN Ports
Intel® Core Processors
- Powerful 35W Edge Performance
- Rich I/O Ports and M.2 Expansions
- 2x PCIe Gen 4 Slots with GPU Support
