P-RCO-6000-RPL
AI Edge Computer with LGA 1700 for Intel® Core™ (Series 2) / 14th / 13th / 12th Gen Processors & R680E PCH
- Intel® Core™ Processors (BTL, Series 2) / 14th / 13th / 12th Gen RPL/ADL Series, LGA1700
- Intel® R680E Chipset
- 2x DDR5 4800/5600MHz SODIMM. Max. up to 96GB
- Triple Independent Display: 2x DisplayPort, 1x DVI-I
- 2x Intel® 2.5 GbE supporting Wake-on-LAN and PXE
- 1x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
- 1x 9mm 2.5" SATA SSD (Internal), 1x 7mm 2.5" SATA SSD (Hot-swap), Support RAID 0, 1
- 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
- 1x M.2 (B Key, 2242/3042/3052, PCIe x2, Support AI Module/NVMe Storage, PCIe x1 & USB 3.2 Gen1, Support 4G/5G)
- 6x RS-232/422/485 (4x internal), 8x USB 3.2 Gen 2, 1x USB 3.2 Gen 1 (internal)
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -25°C up to 70°C
- TPM 2.0 Supported
RCO-6000-RPL series is an extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability fanless embedded systems. It offers dramatically enhanced CPU and graphics performance, wide power and feature scalability, and advanced features, modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-25°C~70°C).
Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, RCO-6000-RPL series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes RCO-6000-RPL series are safety system for all industrial applications.
| System | |
| Processor | Standard 13th Gen Intel® Core™ Processors (Raptor Lake-S) Intel® Core™ i7-13700TE, 35W Intel® Core™ i5-13500TE, 35W 12th Gen Intel® Core™ Processors (Alder Lake-S) Intel® Core™ i7-12700TE, 35W Intel® Core™ i5-12500TE, 35W Project Based Intel® Core™ 3 / 5 / 7 (Series 2, Bartlett Lake-S, 45W) 14th Gen Intel® Core™ i3 / i5 / i7 / i9 (Raptor Lake-S Refresh, 35W~65W) 13th Gen Intel® Core™ i3 / i5 / i7 / i9 (Raptor Lake-S, 35W~65W) 12th Gen Intel® Core™ i3 / i5 / i7 / i9 (Alder Lake-S, 35W~65W) |
| System Chipset | Intel® R680E Express Chipset |
| LAN Chipset | 2.5 GbE1: Intel I226, 2.5 GbE2: Intel I226 Support Wake-on-LAN and PXE, Support TSN |
| Audio Codec | Realtek ALC888S |
| System Memory | 2x 262-Pin DDR5 4800/5600 MT/s SODIMM. Max. up to 96GB (ECC and Non-ECC) |
| Graphics | Intel® UHD Graphics 770/710 |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| AI Accelerator | Supports 3x Hailo-8™ modules |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort 1.4a, Support resolution 5120 x 3200, Up to 7680 x 4320 |
| DVI | 1x DVI-I, support resolution 1920 x 1200 |
| VGA | Yes (by optional split cable) |
| Multiple Display | Triple Display |
| Storage | |
| M.2 | 1x M.2 B Key, 2242/3042/3052 (PCIe x2, Support AI Module/NVMe Storage) (PCIe x1 & USB 3.2 Gen1, Support 4G/5G) |
| mSATA | 1x mSATA (Shared by 1x Mini PCI Express) |
| SIM Socket | 2x External SIM socket (Mini PCIE/M.2 B Key attached) |
| SSD/HDD | 1x 9mm 2.5" SATA HDD Bay (Internal) 1x 7mm 2.5" SATA HDD Bay (Hot-swappable) Support RAID 0, 1 |
| Expansion | |
| M.2 | 1x M.2 (E Key, PCIe x1, USB 2.0, 2230) |
| Mini PCIe | 1x Full-size Mini PCIe (1x shared by 1x mSATA) |
| Expansion Modules | 2x EDGEBoost I/O Brackets: • 4-port GbE module with Intel® I350 Chipset, RJ-45/M12 connector (PoE optional) • 2-Port RJ45 10GbE with Intel X710 Chipset • 4-Port USB 3.0 (share PCIe Gen2 x1 bandwidth) • 1x M.2 B-Key, 2242 for AI/NVMe, 1x M.2 B-Key, 3042/3052 for 5G/AI/NVMe • 1x M.2 M-Key, PCIe x4 Lane, 2242/2260 for AI Module/NVMe • 1x M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), 2x SIM socket, 1x SIM switch |
| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 2x RS-232/422/485 ; 4x RS-232/422/485 (Internal) |
| DIO | 8 in / 8 out (Isolated) |
| EDGEBoost I/O Bracket | 2x EDGEBoost I/O Bracket (By mini PCIe interface) |
| LAN | 2x RJ45 |
| USB | 8x USB 3.2 Gen 2 (10 Gbps) 1x USB 3.2 Gen 1 (5 Gbps, 1x Internal), 2x USB 2.0 (Internal) |
| Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Removable CMOS Battery |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux kernel |
| Power | |
| Power Adapter | Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/15A, 360W (i7/i9 CPU) |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management |
| Power Supply Voltage | 9~48VDC |
| Power Connector | 5-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -25°C to 70°C (35W/45W CPU) -25°C to 60°C (65W CPU) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A |
| Vibration | With HDD: 1 Grms (5 500 Hz, 0.5 hr/axis) With SSD: 5 Grms (5 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimension | 240 (W) x 261 (D) x 79 (H) mm |
| Weights | 4.5 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
RCO-6000-RPL Series AI Edge Inference Computer
Unleash the potential of the 14th Gen Intel® Processor, complemented by scalable AI accelerators for superior edge intelligence. This workstation-grade, fanless computer harnesses cutting-edge technologies, including DDR5, PCIe Gen 4, GPU accelerators, and NVMe storage for rapid performance. Ideal for demanding industry 4.0 and edge-native applications, the RCO-6000-RPL features a ruggedized, fanless design and holds multiple safety certifications, ensuring robust edge reliability.
- 12th/13th/14th Gen Intel® Core™ Processor with R680E PCH (35W TDP)
- Blazing-Fast DDR5 with ECC Support
- Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
- Configurable EDGEBoost I/O Modules for versatile IoT sensor connectivity
Edge Workload Ready: Hybrid P & E Cores
- Intel® Core™ Processors 12th/13th Gen (ADL/RPL) and Series 2 (BTL)
- Up to 24 Cores (8 P-Cores, 16 E-Cores)
- Up to 32 Threads
- Additional L2 & L3 Cache
DDR5 Speed for Volatile Workloads
- 2x DDR5 4800/5600MHz SODIMM
- ECC & Non-ECC Supported

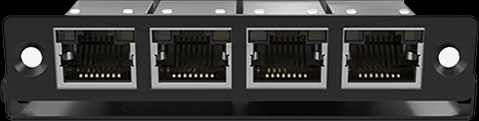

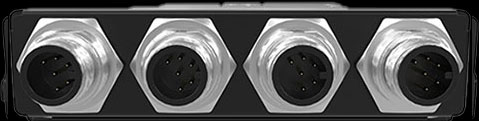

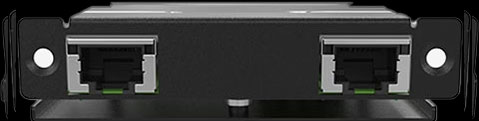

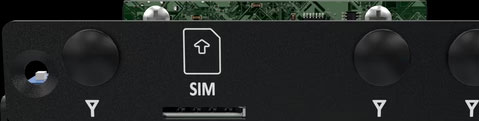

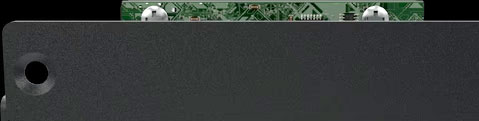

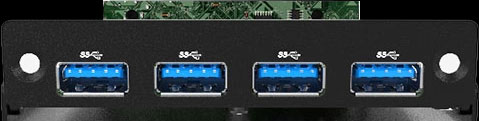

EDGEBoost I/O: Flexible IoT Connectivity
PoE Support, M12 Connection, M.2 Performance Acceleration (5G/NVMe/AI)
Mix and match modular EDGEBoost I/O for flexible IoT connectivity & compatibility. Select from a wide range of EBIO modules including PoE support, 10GbE transfer rates, waterproof-locking M12 connection types, M.2 performance acceleration, and more.

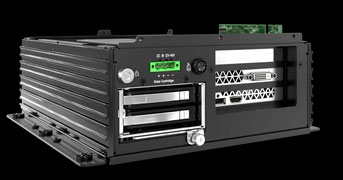

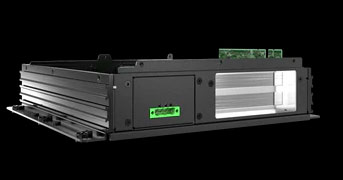

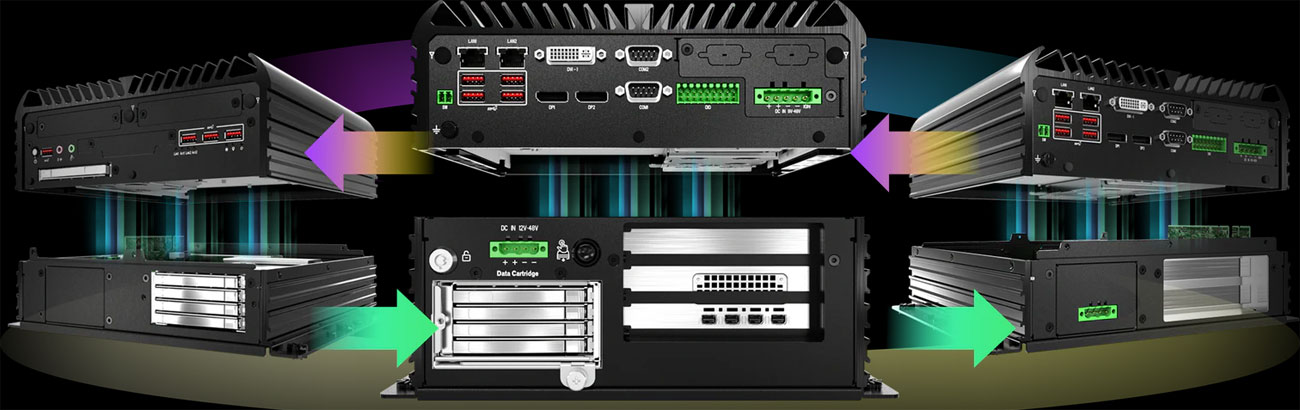

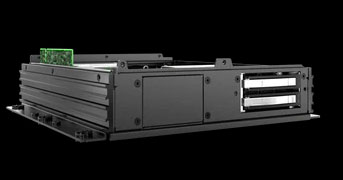

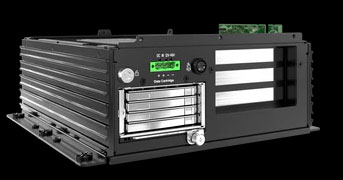

EDGEBoost Nodes: Optimized Performance Acceleration
PCIe Expansion, Dedicated GPU Acceleration, Hot-swappable NVMe/SATA Storage
GPU and NVMe Storage deliver both performance acceleration for edge AI inferencing and high-speed data storage to the rugged edge. Optimize real-time data aggregation and processing with hot-swappable NVMe U.2 EDGEBoost Databricks. Efficiently run complex AI models with GPU hardware acceleration and high-capacity NVMe storage.

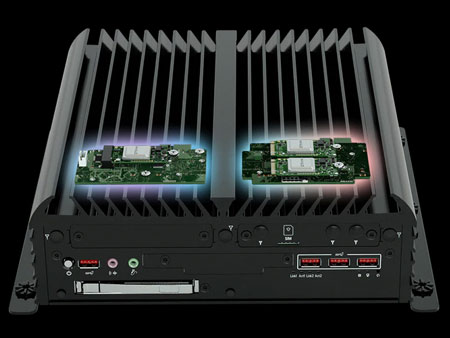

Edge AI Computer Vision Powerhouse
- PCIe Gen 4.0
- Tested & Validated GPU List
- Scalable up to x3 Hailo-8 AI Modules

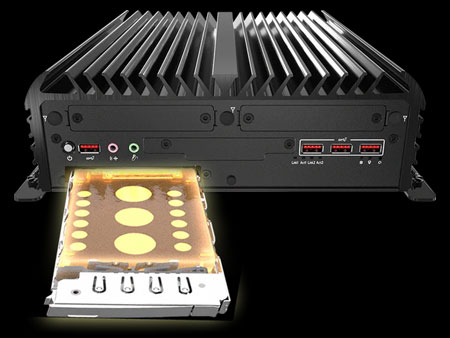

Hot-swappable High-Capacity SATA
- Removable 2.5” SATA SSD Bay

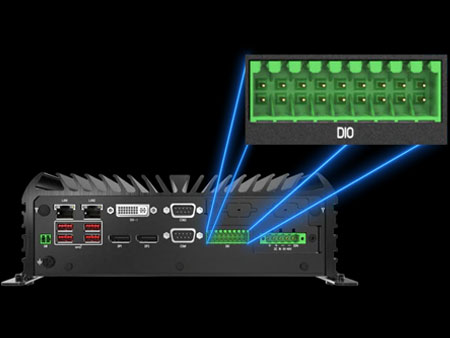

Automation Ready with Isolated DIO
- On-board DIO (8 in/8 out, Isolated)

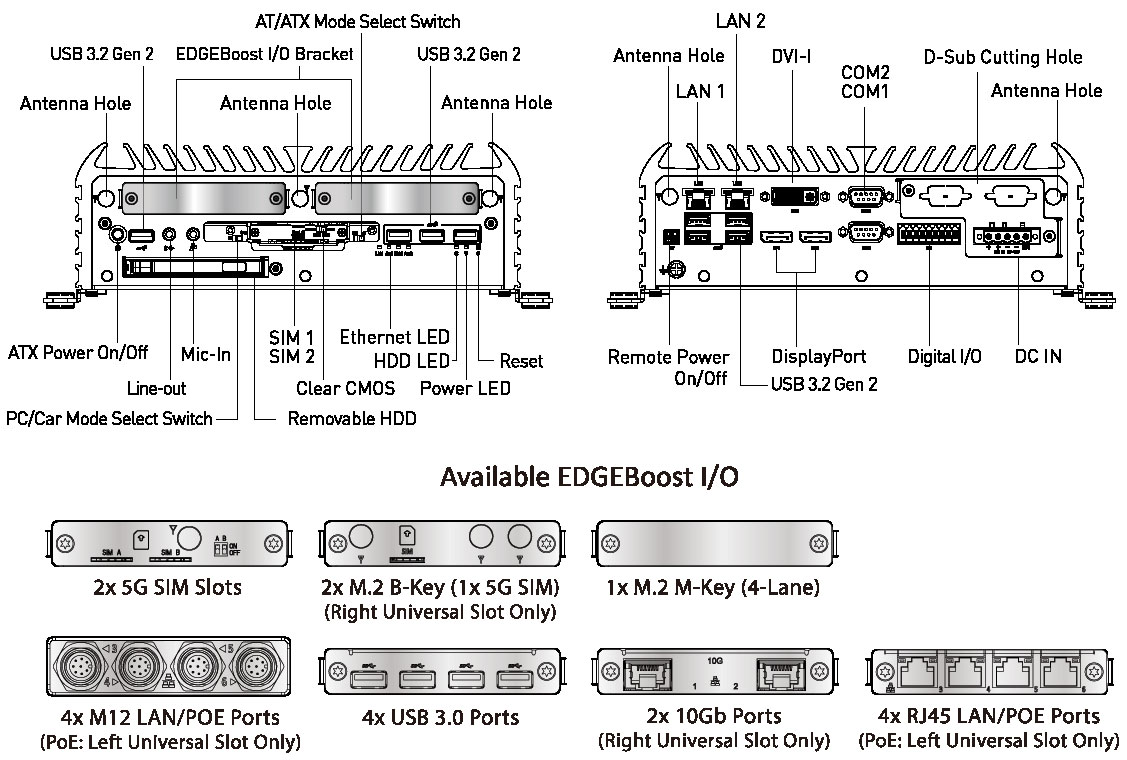

Mechanical Layout

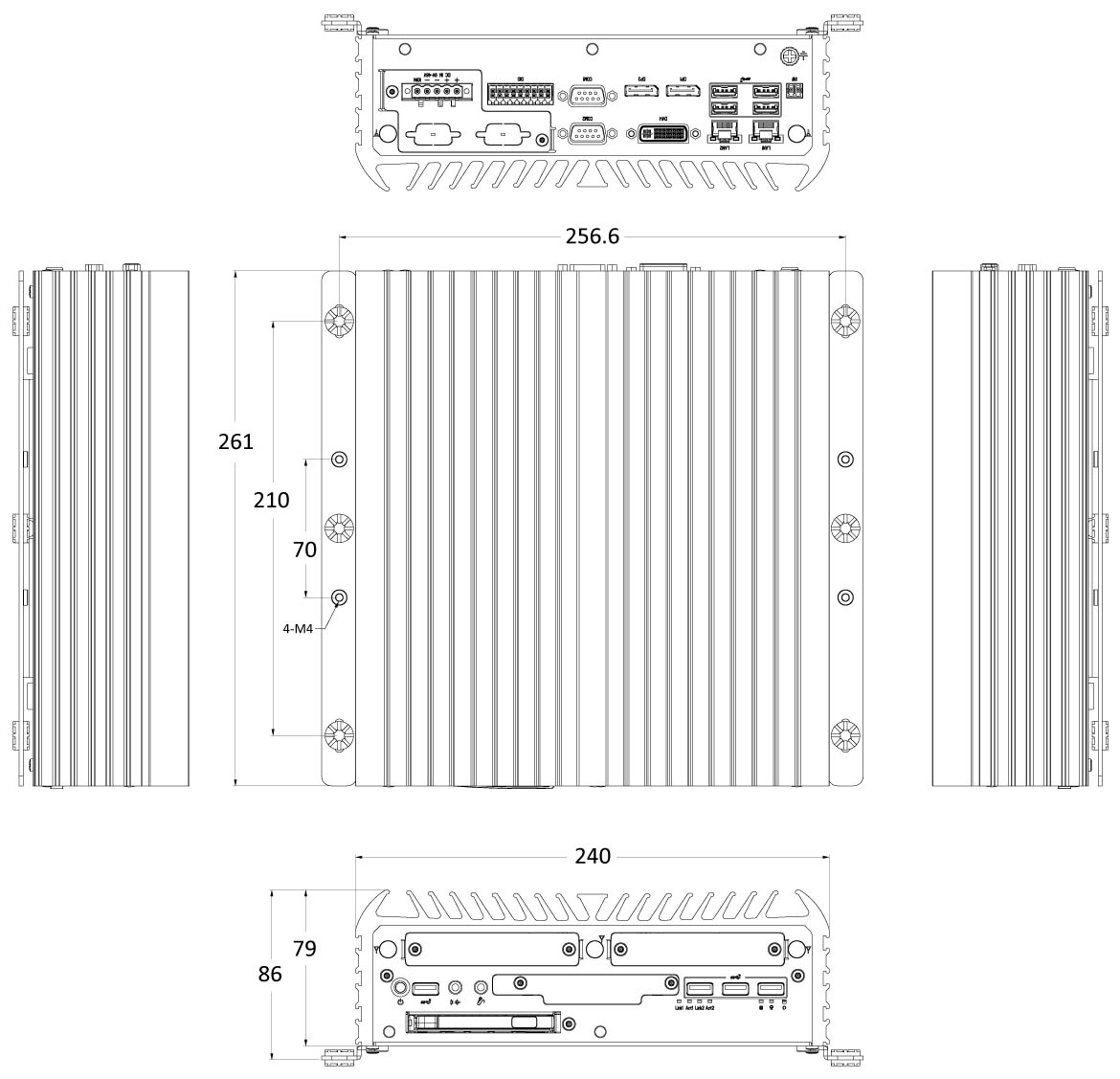

Product Dimension
RCO SERIES: SUPER-RUGGED INDUSTRIAL COMPUTERS
The RCO Series is a line of super-rugged x86 industrial computers purpose-built to enable real-time performance in extreme deployments. By leveraging a fanless and cableless design approach with modular EDGEBoost technologies, these systems can provide seamless configurability to meet varying edge-native deployment requirements while maintaining utmost durability. Available in three series, the RCO-1000, RCO-3000, and RCO-6000 Series.
Intel Atom® Processors
- Up to 3x EDGEBoost I/O
- Lite AI Performance
- Up to 2x PoE and 2x LAN RJ45
- Wide Operating Temperature -40°C up to 70°C
Intel® Core Processors
- 1x EDGEBoost I/O
- Mid-AI Performance
- Up to 4x PoE RJ45/M12
- Wide Operating Temperature -25°C up to 70°C
- EN50155 (EMC) Certified
Intel® Core Processors
- 2x EDGEBoost I/O
- High-AI Performance
- Up to 8x PoE RJ45/M12
- EDGEBoost Nodes Compatible for SSD, GPU and PCIe expansions
- Wide Operating Temperature -25°C up to 70°C
RCO Series: Intel x86 Super-Rugged Edge AI PCs
The RCO series is known for its x86 compute architecture and super rugged features, designed to withstand extreme environments. It consists of three models - RCO 1000, RCO 3000, and RCO 6000 - each tailored to specific performance needs.
It can operate in freezing cold to scorching heat, resist dust, shock, and vibration, making it ideal for harsh industrial and environmental settings. It offers multi-core Intel x86 compute and GPU acceleration capabilities, making it suitable for computer vision and data acquisition in the most demanding applications.
