AS-IMB-1244-WV

Mini-ITX Motherboard Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with Q670 chipset
Anewtech-Systems-Industrial-Motherboard-AS-IMB-1244-WV
  • Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with Q670 chipset
  • 2 x 262-pin SO-DIMM DDR5 4800/5600 MHz , up to 96GB (48GB per DIMM)
  • 1 x Right Angle PCIe x16 (Gen4)
  • 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 3 x COM, 2 x SATA3
  • 1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDS, 1 x eDP 1.4b
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, VMD RAID 0/1
  • 12~28V DC-In
Datasheet
AS-IMB-1244-WV.pdf
Product Specification
Anewtech-Systems-Industrial-Motherboard-AS-IMB-1244-WV-asrock-industrial
Processor System
CPUIntel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
ChipsetIntel® Q670
SocketLGA1700
BIOSAMI SPI 256 Mbit
Form Factor
DimensionsMini-ITX (6.7-in x 6.7-in x 1.0-in, 17.0 cm x 17.0 cm x 2.6 cm)
Memory
TechnologyDual Channel DDR5 4800/5600 MHz*
*Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ
*If motherboard ambient temp. is over 55ºC, the memory thermal solution should be added to avoid thermal issue
Capacity96 GB (48 GB per DIMM)
Socket2 x 262-pin SO-DIMM
Graphics
ControllerIntel® UHD Graphics
HDMIHDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPortDisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDSDual channel 24 bit up to 1920x1200@60Hz
eDPeDP 1.4b
Max resolution up to 4096x2160@60Hz
MultiDisplayQuad Display
Expansion Slot
PCIe1 x Right Angle PCIe x16 (Gen4, Support riser card x8/x8)
M.21 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket1 x Socket connected to M.2 Key B
Audio
InterfaceRealtek ALC897, High Definition Audio. Line-out,Line-in
Ethernet
Controller/ SpeedLAN1: Intel® I226V with 10/100/1000/2500 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro

Connector2 x RJ-45

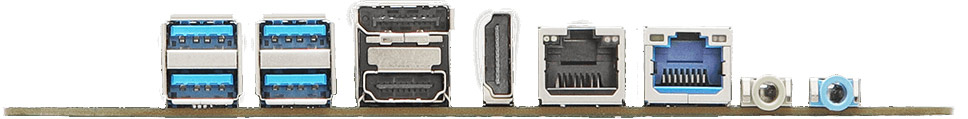

Rear I/O
HDMI2 x HDMI 2.0b
DisplayPort1 x DP 1.4a++
Ethernet1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB4 x USB 3.2 Gen2
Audio2 (Line-in, Line-out or Mic-in, Line-out (optional))
Internal Connector
USB2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COMCOM1, COM3 (RS-232/422/485)
COM4 (RS-232)
GPIO4 x GPI, 4 x GPO
LVDS1
eDP1
SATA PWR Output1
Speaker Header1
Security
TPMTPM 2.0 onboard IC
Storage
M.21 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD*
*Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS)
SATA2 x SATA3 (6Gb/s)
RAIDIntel® VMD RAID 0/1
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port
Watchdog Timer
OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR12~28V DC-In with 4-pin wafer PWR cable
Power OnAT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Environment
Operating Temp-20ºC ~ 70ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%
Accessories
Gift Package1 x I/O Shield (13G02P066000AK)
1 x I/O Shield THIN (13G02P066010AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
1 x SATA Power Cable (14G000100410AK)
2 x COM Cable (14G000000310AK)
2 x SATA Cable (14G00010107DAK)
1 x 2.00mm MINI JUMPER (12G044200021AK)
Bulk Package1 x I/O Shield (13G02P066000AK)
1 x I/O Shield THIN (13G02P066010AK)
4 x SCREW M2*2,D=5 (13G020302031AK)
1 x 2.00mm MINI JUMPER (12G044200021AK)
