15.6-inch I-Series Linux

15.6" I-Series Linux computer. Processor: Rockchip RK3399

Anewtech-Systems-Industrial-Panel-PC-Touch-computer-15-inch-I-Series-Linux-Panel-PC

Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru: Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor: Rockchip RK3399
Memory (RAM): 4GB
Storage: 32GB
OS: Linux Debian 10

Datasheet

Product Specification

Anewtech-Systems-Industrial-Display-Touch-Monitor-EE14339 EloTouch Solutions Singapore Elo Monitor

Part Number(s)	E131747
Enclosure Color	Black
Touch Technology & Capacity	PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru	Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor	Rockchip RK3399
Memory (RAM)	4GB
Storage	32GB
OS	Linux Debian 10
Diagonal Size	15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio	16:9
Active Area	13.55" x 7.62" / 344 mm x 194 mm
Resolution	1920 x 1080 @ 60Hz
Number of Colors	8-bit (16.7 million)
Brightness (typical)	LCD Panel: 250 nits TouchPro PCAP: 215 nits
Response Time-total (typical)	25 msec
Contrast Ratio	700:1
Viewing Angle	Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
I/O Ports	1x USB 3.0 support (900mA) Type C USB output Micro SD slot GPIO Ethernet 1x LAN (Gigabit) DC in
Peripheral Mounting	4x micro-USB 2.0 Elo Edge Connect ports Support for 1.2A on one port and 500mA for the remaining three ports
Webcam	5MP, Max Resolution: 1920x1080 30fps, Auto Focus
Wireless	802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports	1x built-in Analog Microphone
Speakers	2x 2W
Power Supply	AC input voltage: 100-240 VAC Input frequency: 50-60 Hz power adapter (included in accessory box)
Power Consumption (Typical)	On: 8.91W Off: 0.37W Sleep: 3.71W
Power Over Ethernet (PoE)	Supported via Elo PoE Device PN: E413396 Reference the I-Series user guide for details.
Dimensions	15.34" x 9.83" x 0.88" / 389.7 mm x 249.7 mm x 22.3 mm
Shipping Box Dimensions	18.3" x 6.3" x 13.0" / 465 mm x 160 mm x 330 mm
Weight (Unpackaged)	3.5 lbs / 1.6 kg
Weight (Packaged)	7.2 lbs / 3.3 kg
Operating Temperature	0°C to 40°C / 32°F to 104°F
Storage Temperature	-20°C to 50°C / -4°F to 122°F
Humidity	Operating: 20% to 80% Storage: 5% to 95%
Regulatory approvals and declarations	UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) ANATEL (Brazil)
Real-Time Clock	lithium coin cell battery
MTBF	50,000 hours demonstrated
Mounting Options	VESA 75mm and 100mm
Sealability	Touchscreen sealed to LCD
What's in the Box	I-Series North American Power Cable European Power Cable 1x Power Brick Quick Install Guide Screws for cable cover door (located in the power/Ethernet bay)
Optional Peripherals	Magnetic Stripe Reader (MSR) – Elo P/N: E001002 Fingerprint Scanner – Elo P/N: E134286 GPIO Cable - Elo P/N: E211544 POE Module Kit - Elo P/N: E413396 EMV Cradle for MagTek eDynamo - Elo P/N: E375343 EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981 EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930 Status Light (Micro-USB Connectivity) - Elo P/N: E644767 Temperature Sensor Pro – Elo P/N: E534879 3D Camera - Elo P/N: E134699 Webcam - Elo P/N: E201494
Stands, Mounts & Kits	Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088 Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162 Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321 Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382 Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069 Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458 Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663 Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864 Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151 Expansion Module - Long Cable Kit - Mounted under the flip stand - Elo P/N: E923781 Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788 Elo Stand 1902/3-2202/3 - Black (100 mm VESA) - Elo P/N: E804330 Elo Stand 2402/3-2702/3 - Black (100 mm VESA) - Elo P/N: E509844 Elo Stand 1302L - White (75 mm VESA) - Elo P/N: E307974 Elo Stand 1902/3-2202/3 - White (100 mm VESA) - Elo P/N: E808963 Elo Stand 2402/3-2702/3 - White (100 mm VESA) - Elo P/N: E510042 65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304 90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579 Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693 Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260 Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137 Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162 Replacement Cable Kit (NA & EU power cables) – Elo P/N: E512363

All-in-One Touchscreen: I-Series for Linux

The I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management.

Available in 10-, 15- and 22-inch sizes, Elo's I-Series delivers a powerful, commercial-grade interactive platform complete with a Full HD 10-touch display, Linux Debian 10 OS and enhanced CPU performance a Rockchip processor.

Anewtech-Systems-EloTouch-Monitor-10-inch-I-Series-Linux-All-in-one-Panel-PC EloTouch Solutions Singapore Elo Monitor

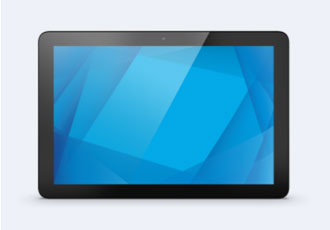

10-inch I-Series
All-in-One Linux Touchscreen

Anewtech-Systems-EloTouch-Monitor-15-inch-I-Series-Linux-All-in-one-Panel-PC EloTouch Solutions Singapore Elo Monitor

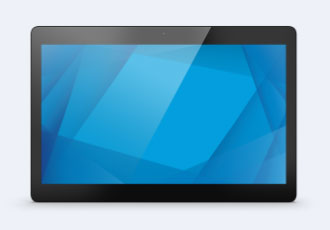

15-inch I-Series
All-in-One Linux Touchscreen

Anewtech-Systems-EloTouch-Monitor-15-inch-I-Series-Linux-Slate-All-in-one-Panel-PC EloTouch Solutions Singapore Elo Monitor

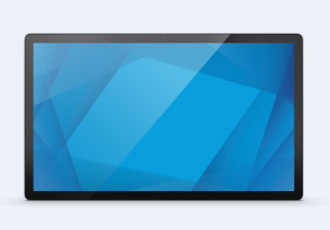

15-inch I-Series Slate
All-in-One Linux Touchscreen

Anewte EloTouch Solutions Singapore Elo Monitor

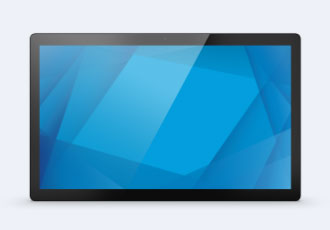

22-inch I-Series
All-in-One Linux Touchscreen

Elo Edge Connect

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for point-ofsale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
