22-inch I-Series 4 Android

22-inch I-Series 4 Android Panel PC. PCAP 10 Touch

Anewtech-Systems-Industrial-Panel-PC-Touch-computer-21-inch-I-Series-4-Android-Panel-PC

PCAP (TouchPro® Projected Capacitive) - 10 Touch
Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399
Memory (RAM):4GB
Android 10 with GMS & AOSP
USB Type-C Compatible
Slim Design

Datasheet

Product Specification

Power Any Interactive Experience

One of our most popular product lines ever, the I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management.

Modular & Innovative

With a universal VESA mount and Elo Edge Connect compatibility that allows you to easily attach a variety of accessories including payment devices, cameras and barcode readers – Elo enables customers to easily configure the I-Series for any use.

Anewtech Elo-touch Android touchscreen-panel-pc 22" E390263 / E391414

Part Number(s)	Standard Model: Black - E390263 White - E412818 (MTO) Value Model: Black - E391414 White - E413211 (MTO)
Enclosure Color	White or Black
Touch Technology & Capacity	PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Thru	Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
Processor	Standard Model: Qualcomm Snapdragon SDA660 Value Model: Rockchip RK3399
Memory (RAM)	4GB
Storage	Standard Model: 64GB Value Model: 32GB
OS	Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size	21.5" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio	16:9
Active Area (mm)	18.74" x 10.54" / 476 mm x 268 mm
Resolution	1920 x 1080 @ 60Hz
Number of Colors	8-bit (16.7 million)
Brightness (typical)	Standard Model: LCD Panel: 250 nits TouchPro PCAP: 215 nits Value Model: LCD Panel: 250 nits TouchPro PCAP: 215 nits
Response Time-total (typical)	Standard Model: 14 msec Value Model: 5 ms
Contrast Ratio	1000:1
Viewing Angle	Standard Model: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total Value Model: Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
I/O Ports	1x USB 3.0 support (900mA) Type C USB output Micro SD slot GPIO Ethernet 1x LAN (Gigabit) DC in
Peripheral Mounting	4x micro-USB 2.0 Elo Edge Connect ports Support for 1.2A on one port and 500mA for the remaining three ports
Webcam	Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus
Wireless	802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports	Standard Model: 2x built-in Digital Microphones Value Model: 1x built-in Analog Microphone
Speakers	Standard Model: 2x 0.8W Value Model: 2x 2W
Power Supply	AC input voltage: 100-240 VAC Input frequency: 50-60 Hz
Power Consumption (Typical)	Standard Model: On: 19.8W, Off: 0.4W, Sleep: 4.4W Value Model: On: 15.7W, Off: 0.45W, Sleep: 3.4W
Power Over Ethernet (PoE)	Supported via Elo PoE Device PN: E413396
Dimensions	20.66" x 12.79" x 1.17" / 524.8 mm x 324.8 mm x 29.7 mm
Operating Temperature	0°C to 40°C / 32°F to 104°F
Storage Temperature	-20°C to 50°C / -4°F to 122°F
Humidity	Operating: 20% to 80% Storage: 5% to 95%
Regulatory approvals and declarations	UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)
Real-Time Clock	lithium coin cell battery
MTBF	50,000 hours demonstrated
Mounting Options	VESA 75mm and 100mm
Sealability	Touchscreen sealed to LCD

All-in-One Touchscreen: I-Series 4 for Android

The I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management.

Available in 10-, 15- and 22-inch sizes, Elo's I-Series delivers a powerful, commercial-grade interactive platform complete with a Full HD 10-touch display, flexible Android 10 OS and enhaced CPU performance with your choice of Qualcomm or Rockchip processor options.

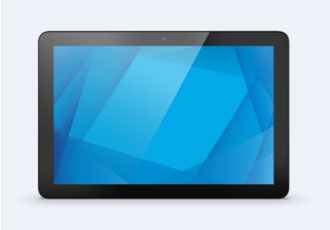

Anewtech-Systems-EloTouch-Monitor-10-inch-I-Series-4-Android-All-in-one-Panel-PC.

10-inch I-Series 4
All-in-One Android Touchscreen

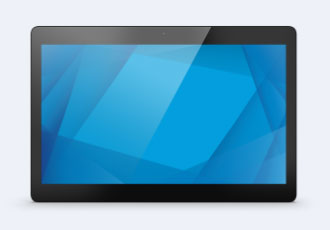

Anewtech-Systems-EloTouch-Monitor-15-inch-I-Series-4-Android-All-in-one-Panel-PC

15-inch I-Series 4
All-in-One Android Touchscreen

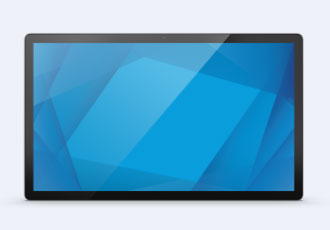

Anewtech-Systems-EloTouch-Monitor-15-inch-I-Series-4-Slate-Android-All-in-one-Panel-PC

15-inch I-Series 4 Slate
All-in-One Android Touchscreen

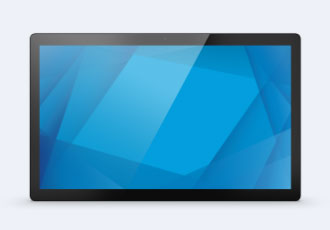

Anewtech-Systems-EloTouch-Monitor-22-inch-I-Series-4-Android-All-in-one-Panel-PC

22-inch I-Series 4
All-in-One Android Touchscreen

Modular & Ready to Configure

10-inch I-Series 4 Android Panel PC offers a flexible design that can be easily configured to fit any use with Elo Edge Connect™ compatibility. Choose from a variety of accessories including payment devices, cameras, barcode readers and many others - configuration is up to you and can be easily changed at any time.
