ARS-E103-JONX-H2
Compact fanless edge AI platform, with 8-core CPU. Up to 157 TOPS
- Fanless DIN Rail Mounted System
Jetson Orin NX Fanless Edge AI Inferencing System - 8-core Arm ® Cortex ® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
- 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, Up to 157 TOPS
- 1 10G/1G LAN optional by Sku (10G: -H(2), 1G: -L(2))
4 1Gbe w/ POE or 2 x1Gbe w/ PoE+ (by AOM-POE-001 jumper setting) - 1 M.2 B-key 3042/3052 (USB3.2, USB2.0) w/ dual nano-SIM
1 M.2 E-key 2230 (PCIe x1, USB2.0)
1 M.2 M-key 2280 (PCIe4.0 x4) - 1 NVMe 2280 at M.2 M-Key
- DC 9-36V
Operating Temperature -25℃ to 60 ℃ (-40°F to 131°F) with 0.7m/s airflow and Industrial Grade peripherals
Key Applications
- Artificial Intelligence (AI)
- Imaging and Computer Vision
- Industrial Automation, Retail, Smart Medical Expert Systems
- Digital Signage Kiosk, Interactive info system
Datasheet
Product Specification
| Product SKU | ARS-E103-JONX-H2 |
| Motherboard | Super AOM-JSOR-001 |
| Processor | |
| CPU | Arm® Cortex®-A78AE v8.2 64-bit CPU |
| Core Count | Up to 8C/8T; Up to 6MB Cache |
| Note | Supports up to 40W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: Onboard Memory Max Memory: Up to 16GB ECC LPDDR5X |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 4 RJ45 1GbE with Intel® I210-IT 1 RJ45 10GbE with Marvell® AQC113C No NIC option supported |
| Input / Output | |
| LAN | 4 RJ45 1 GbE LAN ports (Intel® I210-IT) 1 RJ45 10 GbE LAN port (Marvell® AQC113) |
| USB | 1 USB 3.2 Gen2 Type-C port(Front) 3 USB 3.2 Gen2 Type-A ports(Front) |
| Video | 1 HDMI 2 port(Front) |
| Serial | 2 COM RS232/RS422/RS485 ports(Front) |
| Others | 1 CANBus port 1 4 DI/4 x DO (terminal block) port |
| Management | |
| Power configurations | +9~36V DC Power Input |
| Chassis | |
| Form Factor | Fanless Embedded |
| Model | CSE-E102L |
| Dimensions and Weight | |
| Height | 3.15" (80 mm) |
| Width | 7.28" (185 mm) |
| Depth | 5.5" (140 mm) |
| Package | 7.87" (H) x 11.42" (W) x 9.06" (D) |
| Weight | Gross Weight: 4.3 lbs (1.95 kg) Net Weight: 3.7 lbs (1.68 kg) |
| Available Color | Black |

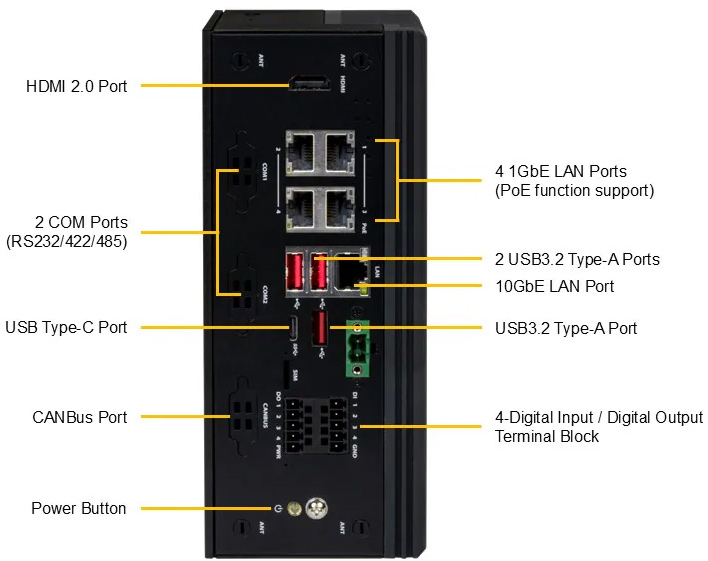

| Front Panel | |
| Buttons | Power On/Off |
| LED | Power status |
| Expansion Slots | |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default)) 1 M.2 PCIe 4.0 x1 slot (E-key 2230(default); USB 2.0) 1 M.2 slot (B-key 3052(default)/3042; USB 3.0) |
| Drive Bays / Storage | |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default)) |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: -25°C to 60°C (-40°F to 131°F) with 0.7 m/s airflow Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
