AS-1115HS-TNR
1U Hyper AMD Server. Up to 1 double-width GPU. 8 Hot-swap 2.5” NVMe/SAS/SATA
- 4th Generation AMD EPYC™ 9004 Series Processor
- ASPEED AST2600
- 24 DIMM slots with 2 DIMM per channel (up to 6TB DDR5-4000MHz(1R)/3600MHz(2R)) OR
- 12 DIMM slots with 1 DIMM per channel (up to 3TB DDR5-4800MHz)
- 1 PCIe 5.0 x16, FH, 6.6"L
- 2 PCIe 5.0 x16 FH, 10.5"L
- Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

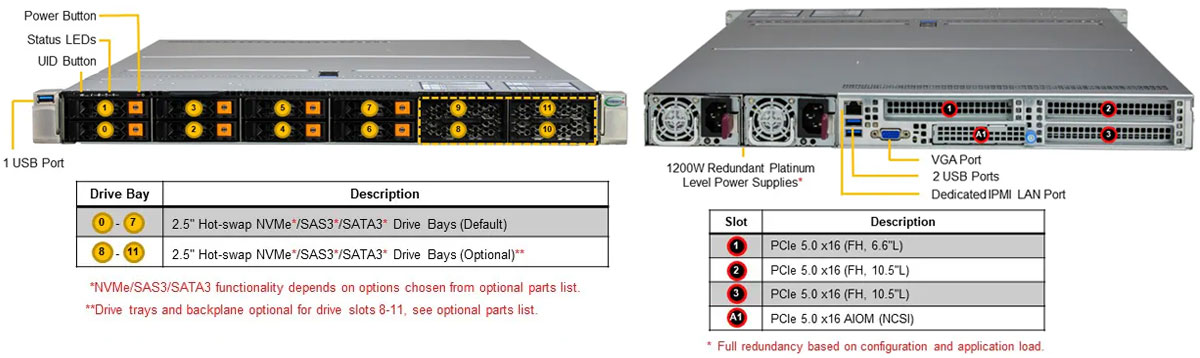

- 8 Hot-swap 2.5” NVMe/SAS/SATA (Option for up to 12 drives)
- (Optional parts required for NVMe/SAS/SATA configurations)
- 800/1200W Redundant Power Supplies (Titanium Level)
- (*Full redundancy based on configuration and application load)
- 2 On-board PCIe Gen4 M.2 NVMe 80mm/110mm (Boot)
Datasheet
Product Specification
| Product SKUs | A+ Server AS -1115HS-TNR (Black front & sliver body) |
| Motherboard | Super H13SSH |
| Processor | |
| CPU | Single Socket SP5 AMD EPYC™ 9004 Series Processors |
| Core Count | Up to 128C/256T |
| Note | Supports up to 360W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 280W only supported under specific conditions. |
| GPU | |
| Max GPU Count | Up to 1 double-width GPU(s) |
| Supported GPU | NVIDIA PCIe: H100 |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | PCIe |
| System Memory | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1 V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | |
| LAN | 1 Dedicated IPMI LAN port |
| USB | 3 USB 3.0 port(s) (1 front; 2 rear) |
| Video | 1 VGA port(s) |
| System BIOS | |
| BIOS Type | AMI 256MB SPI Flash |
| BIOS Features | ACPI 6.4 Plug and Play (PnP)SM BIOS 3.5 or later UEFI 2.8 USB Keyboard support |
| Management | |
| Software | IPMI 2.0 KVM with dedicated LAN Super Diagnostics Offline SuperDoctor® 5 Supermicro Update Manager (SUM) Supermicro Server Manager (SSM) Redfish API |
| Power Configurations | Power-on mode control for AC power loss recovery ACPI Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis | |
| Form Factor | 1U |
| Model | CSE-HS119-R1K24P2-A |
| Dimensions and Weight | |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 29.4" (747mm) |
| Package | 8.1" (H) x 23.8" (W) x 40.6" (D) |
| Weight | Net Weight: 32 lbs (14.5 kg) Gross Weight: 51 lbs (23.1 kg) |
| Available Color | Black front & sliver body |
| Front Panel | |
| Buttons | Power On/OffUID button |
| LEDs | HDD activity LAN1 activity Power status System information |
| Expansion Slots | |
| PCI-Express (PCIe) | 1 PCIe 5.0 x16 FH, 6.6"L slot(s) 2 PCIe 5.0 x16 FH, 10.5"L slot(s) |
| Drive Bays / Storage | |
| Hot-swap | 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (Up to 12x 2.5" hot-swap NVMe/SATA/SAS support with additional parts) |
| M.2 | 2x NVMe (PCIe Gen4, Boot drive only) M-Key, 22110 (Default) |
| System Cooling | |
| Fans | 8x 4cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud(s) |
| Power Supply | 1000W Redundant Titanium Level power supplies |
| Operating Environment | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Note | Operating Temperature based on configurations |
Flexible and Efficient Single-Socket Server Family
The time has arrived when a single-socket server can power workloads with more cores than most 2-socket servers could manage only a short time ago. The 128 cores delivered by 4th Gen AMD EPYC™ processors can power many data center workloads with less CPU cost and lower power consumption. With this processor generation, the reason for moving to two sockets—more I/O and more memory—has been eliminated. Even a single-socket server can have up to 6 TB of memory and 128 lanes of PCIe 5.0 connectivity.
You can strike a new balance in your data center: max out the 6 TB of memory to support the demands of memory-intensive workloads, or choose 3 TB of memory for IT operations.
- One 4th Gen AMD EPYC™ processor
- Up to 24 DIMMs for up to 6 TB of DDR5 memory
- PCIe 5.0 with CXL 1.1+ support
- Flexible NVMe, SAS, and SATA3 drive options
- Configurable PCIe 5.0 expansion capabilities with CXL 1.1+ memory expansion
- Open Compute Project (OCP) 3.0 AIOM slot
- Titanium-Level efficient power supplies
Leading Multi-node Architecture with Front or Rear I/O
Enterprise-focused platform designed for single-socket performance and flexibility
Deliver flexibility, power efficiency, memory density, and serviceability to many IT workloads
Supermicro H13 Hyper-U series are the ultimate single processor servers that can offer more cores than most 2 socket servers can, ideal for cloud native workloads, such as virtualization and HCI.
