SYS-222FT-HEA-ALC
2U 4-Node FlexTwin™ Sever with 2 hot-swap E1.S drives per node
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual Intel® Xeon® 6900 Series Processors with P-cores up to 500W with Advanced liquid cooling
- Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 3TB 8800MT/s DDR5 MRDIMM
- Flexible networking with up to 1 OCP 3.0 compatible AIOM slots
- Optional 1 PCIe 5.0 x16 FHHL slot + Default 1 PCIe 5.0 x16 LP slot
- Optional 2 E1.S Slots + Optional 2 M.2 NVME drive Slots
- 4 Redundant Up to 3200W Titanium Level Power Supplies
Key Applications
- Oil & Gas
- Scientific Research
- High Performance Computing (HPC)
- Research Lab
Product Specification
| Product SKU | SuperServer SYS-222FT-HEA-ALC |
| Motherboard | Super X14DBT-FLAP |
| Processor | |
| CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| Note | Supports up to 500W TDP CPUs (Liquid Cooled) |
| System Memory (per Node) | |
| Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices (per Node) | |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Chipset | System on Chip |
| Network Connectivity | Via AIOM |
| Input / Output (per Node) | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 2.0 Type-A ports(front) |
| Video | 1 VGA port(Front) |
| System BIOS | |
| BIOS Type | AMI 64MB SPI Flash |
| Management | |
| Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery ACPI/APM Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| PC Health Monitoring | |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-F214EC-000NP |
| Dimensions and Weight | |
| Height | 3.46" (88 mm) |
| Width | 17.67" (449 mm) |
| Depth | 36.08" (916.6 mm) |
| Package | 11.54" (H) x 27.6" (W) x 50.63" (D) |
| Weight | Gross Weight: 148.2 lbs (67.28 kg) Net Weight: 124.2 lbs (56.39 kg) |
| Available Color | Silver |
| Front Panel | |

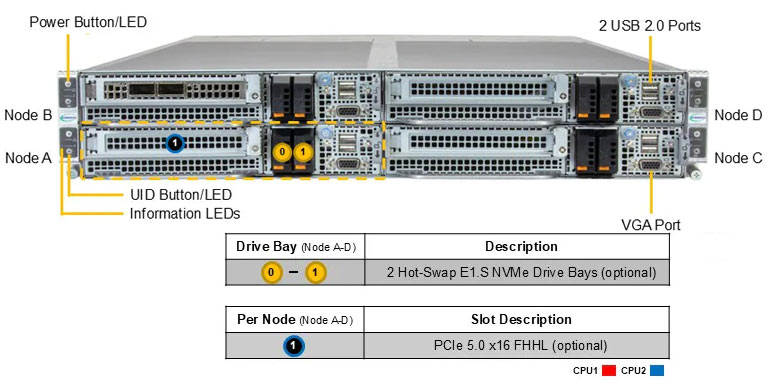

| LED | HDD activity LED Information LEDs Network activity LEDs Power Button/LED Power status LED UID Button/LED Universal Information (UID) LED |
| Buttons | Power On/Off button UID button |
| Expansion Slots (per Node) | |

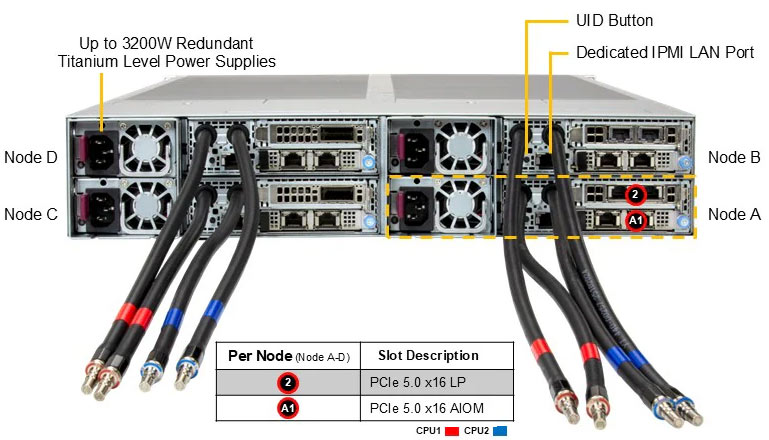

| PCI-Express (PCIe) Configuration | Default 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A* 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 FHHL slot (*Requires additional parts) |
| M.2 | 2 M.2 NVMe slots (M-key 22110(default); optional configuration) |
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Option A: Total 2 bays 2 front hot-swap E1.S NVMe* drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) |
| M.2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110; optional configuration) |
| System Cooling | |
| Fans | Up to 16x 31K RPM Counter Rotating 40x40x56mm Fan(s) |
| Air Shroud | 4 Air Shrouds |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Power Supply | |
| 4x 3200W | 4x 3200W Redundant (2 + 2) Titanium Level (96%) power supplies |
| 4x 2000W | 4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies |
| 4x 2700W | 4x 2700W Redundant (2 + 2) Titanium Level (96%) power supplies< |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
