E-2703LM
27" Medical Grade Touchscreen Monitor
- IP-54 Rating: Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution
- IEC 60601: IEC 60601 compliant power supply included.
- DICOM 14: Ensures accurate and uniform image reproduction for reliable review
- Integrated Touch: TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves
DICOM Medical Grade Touchscreen Monitors
The Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
| Part Number(s) | TouchPro PCAP White with stand - E659793 TouchPro PCAP Black with stand - E659596 TouchPro PCAP White without stand - E381844 TouchPro PCAP Black without stand - E381654 |
| Enclosure Color | White or Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
| Diagonal Size | 27'' diagonal, Active matrix TFT LCD (LED) |
| Aspect Ratio | 16:9 |
| Active Area (mm) | 23.54" x 13.24" / 597.88 x 336.31 mm |
| Resolution | 1920 x 1080 @ 50, 60Hz |
| Other Supported Resolutions | 640 x 480 60Hz 640 x 400 70Hz 720 x 400 70Hz 800 x 500 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 720 @ 58Hz, 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 300 nits TouchPro PCAP: 270 nits |
| Response Time-total (typical) | 14 msec |
| Contrast Ratio | 1000:1 |
| Touch Interface | USB, Serial (via VGA) |
| Surface Treatment | Anti-glare |
| On Screen Display | Accessible through switches along the bottom: Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean Lockouts: OSD, Power |
| I/O Ports | VGA (RS232 touch supported via E810917) HDMI Combo Jack DC jack USB Type B USB 2.0 Type A 4x Micro USB |
| Speakers | Two x 2W internal speakers |
| Input Video Format | VGA (VGA DE-15 (DB-15) Male connecter cable included) HDMI (HDMI cable included) |
| Input Video Frequency | Horizontal: 30 – 82KHz Vertical: 50 - 75Hz |
| Power Consumption (Typical) | Monitor + AC/DC adapter ON (Default - 75% Brightness): 17.37 W ON (Typical - 100% Brightness): 22.41W SLEEP: 1.006 W OFF: 0.24 W |
| Input Voltage | 12VDC +/- 5% 100-240VAC, 50/60Hz |
| Input Connector | Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter) |
| Peripheral Mounting | 4x Micro USB side ports (Top, Bottom, Left, Right) |
| Monitor Dimensions (without Stand) | 15.52" x 25.50" x 1.77" / 394.1 mm x 647.6 mm x 44.9 mm |
| Monitor Dimensions (with Stand) | 17.75" x 25.50" x 9.17" / 450.9 mm x 647.6 mm x 233 mm |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature) |
| Sealability | Touchscreen sealed to bezel; Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 4-hole 100mm mounting interface on rear of unit |
| Regulatory approvals and declarations | Canada CUL, IC China CCC Europe CE United Kingdom UKCA Korea KCC Taiwan BSMI United States FCC, UL Japan VCCI International CB Australia RCM Russia EAC Mexico CoC RoHS, China RoHS, WEEE, REACH India BIS UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1 cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1 CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1) CE: IEC 60601-1-2:2014 (Ed. 4) Risk Management: ISO 14971:2007 + EN ISO 14971:2012 Usability: IEC 60601-1-6:2010+A1:2013 (Ed. 3.1), IEC 62366:2007+A1:2014 (Ed. 1.1) |
| DICOM | DICOM Part 14 (AAPM secondary display) |
| Ingress Protection | IP54 entire enclosure |
| Impact Protection | IK06 |
Features:
Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution
IEC 60601 compliant power supply included
Ensures accurate and uniform image reproduction for reliable review
TouchPro® PCAP offers a 10-touch tablet-like experience, use with wet or dry gloves
DICOM Medical Grade Touchscreen Monitors
DICOM 14 - Designed for Consistent Image Review
Help ensure healthcare providers and patients can view clear, accurate and consistent medical images. The 03-Series Medical Monitors are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series Medical Monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo can help develop and customize products for almost any medical device including ventilators, anesthesia machines, patient monitoring and medication dispensers.

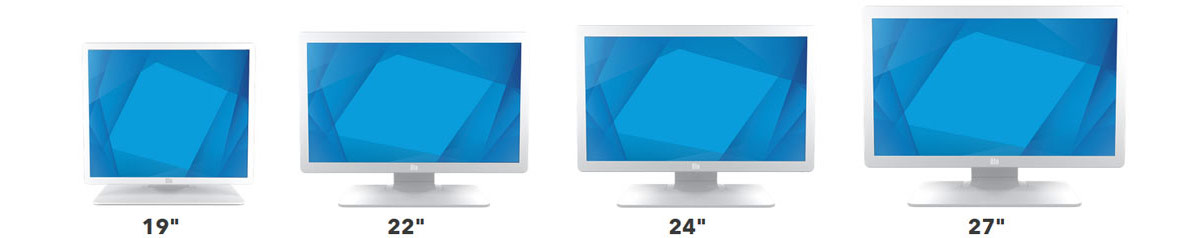

Medical Grade Touchscreen Monitors
Its compact form factor and sleek design make it ideal for patient entertainment, virtual health, patient monitoring, respiratory and medication dispensing devices, and laboratories.
