WM-M133WK

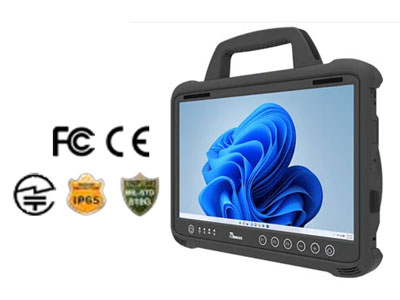

13.3" Intel® Core™ i5-8265U Ultra Rugged Tablet PC
- Intel® Core™ i5-8265U Whiskey Lake processor
- 13.3” 1920 x 1080 IPS wide viewing angle LED Panel
- Magnesium alloy housing with all-around elastomeric rubber
- Built-in kickstand usable as carrying handle(indefinitely adjustable)
- Cold swap Battery Pack
- IP65 waterproof and dustproof
- Optical bonding technology
- TPM 2.0
Datasheet
Product Specification
Custom Configuration
| Display Specifications | |
| Size | 13.3" |
| Brightness | 500 nits with Optical Bonding (Optional 800 nits) |
| Resolution | 1920 x 1080 |
| Contrast Ratio | 1000:1 |
| Touch | Multi-touch Projected Capactive with Glove/Rain/Stylus Modes Active Stylus Support |
| Viewing Angle | 89/89/89/89 |
| Panel Viewability | Anti-glare technology (Default) Intel HD Graphics (built-in CPU) video controller |
| System Specification | |
| Processor | Intel® Core i5-8265U, 1.60 GHz (up to 3.90 GHz) |
| Memory | 4GB SODIMM DDR4-2400 (up to 16GB) |
| Storage | 1 x 128GB M.2 SSD (up to 512GB) Optional M.2 SSD (up to 512GB) |
| Audio | 1 x built-in Digital Mic with Noise Cancellation, 2 x 1 watt speaker |
| Wireless Communication | |
| WLAN | WLAN: 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth 5.0 |
| WWAN | 4G LTE (Optional) |
| GPS | GPS/GLONASS (Optional) |
| I/O Connectors | |
| I/O | 1 x Docking connector 1 x RJ45-10/100/1000 Mbps USB 2 x USB 3.0 Type A 2 x USB 3.0 Type A 1 x USB 3.1 Type-C (Gen1) Power Input 1 x Power Jack (DC Input) 1 x SDXC Slot Service Window Access to SSD + 2 x WiFi |
| In front Control | |
| LED indicator | Power, Battery, SSD, RF |
| Mechanical and Environment | |
| Dimensions (W x L x H) | 338.2 x 240 x 30 mm |
| Net Weight (kg) | 2.2 Kg (With Kickstand) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| IP Proof | IP65 |
| Operating Humidity | 30% to 80% RH, non-condensing |
| Certifications | CE, FCC |
| Gross Weight(kg) | Approximately 2.2 kg (Tablet only) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 4 ft to concrete |
| ESD | 12kV contact /12kV air |
| Housing | Rear Magnesium Alloy Die-Casting Design |
| Power Management | |
| Power Input | 19V DC |
| Battery | 14.8V typ. 5900 mAh Li-Polymer Battery (4S1P) Cold swap (with power connected) |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Battery Operating Time | More than 10 hours (BAPCo Tabl etMark v3) |
| Product Specification | |
| OS | Windows 10 IoT Enterprise |
| Security | |
| Security | Trusted Platform Module (TPM) V2.0 Kensington lock slot |
