P-JCO-1000-ORN-A
Lite-Range AI Computer NVIDIA Jetson Orin™ NX 8G/16G or Nano 8G/4G GPU with 32 Tensor Cores
- NVIDIA® Jetson Orin™ NX 8GB/16GB or Nano 8GB/4GB GPU with 32 Tensor Cores
- 1x HDMI 2.0, 3840 x 2160 @ 60Hz
- 1x 2.5 GbE LAN
- 1x External Dual Nano SIM socket
- 1x M.2 (M Key, 2242/2280, PCIex 4, NVMe Storage) (128GB Default)
- 4x USB 3.2 Gen 2, 1x USB Type-C (For OS Flash)
- 4x DI + 4x DO with isolation
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -20°C up to 60°C
Built Super-Rugged. Built Ready.
The JCO-1000-ORN Series emphasizes its operational reliability and resilience for rugged edge deployments with a fanless and cableless design.
| System | |
| Processor | NVIDIA® Jetson Orin™ NX Super/Nano Super GPU with 32 Tensor Cores • NX 16 GB: 1024-core NVIDIA Ampere architecture GPU (40W/157 TOPS) • NX 8 GB: 1024-core NVIDIA Ampere architecture GPU (40W/117 TOPS) • Nano 8 GB: 1024-core NVIDIA Ampere architecture GPU (25W/67 TOPS) • Nano 4 GB: 512-core NVIDIA Ampere architecture GPU (25W/34 TOPS) |
| LAN Chipset | RJ45 GbE: RGMII |
| Audio Codec | ALC5640 |
| Watchdog | Software Programmable Supports 1~110 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| HDMI | • NX Series 1x HDMI 2.0, 3840 x 2160 @ 60Hz • Nano Series 1x HDMI 1.4, 3840 x 2160 @ 30Hz |
| Storage | |
| M.2 | 1x M.2 (M Key, 2242/2280, PCIe x4, NVMe) (Default 128GB) |
| SD | 1x Micro SD 2.0 Slot |
| SIM Socket | 1x External Dual Nano SIM socket (Attached to M.2 B Key) |
| Expansion | |
| M.2 | 1x M.2 (B Key, 2242/3042/3052, PCIe x1, USB 3.2 Gen2, Support 4G/5G Module) 1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth) |
| I/O | |
| CAN | CAN 2.0 B |
| COM | 2x RS-232/422/485 (Switchable by Software) |
| DIO | 4 in / 4 out (Isolated) |
| LAN | 1x GbE RJ45 |
| OOB | 1x RJ45 (Optional OOB Management Module, Occupied 1x COM & Micro USB Console Port) |
| USB | 4x USB 3.2 Gen 2 (10 Gbps) 1x USB Type-C (For OS Flash) 1x Micro USB (Console) |
| LED | 3x LED LED 1 : Programmable LED (Blue Color) LED 2 : Programmable LED (Blue Color) LED 3 : Programmable LED (Red Color) |
| Others | Service Panel: • 1x Micro USB (For Console) • 1x USB Type-C (For OS Flash) • 1x PC/CAR Mode Switch • 1x AT/ATX SW • 1x Micro SD Slot • 1x Dual SIM Slot 5x WiFi Antenna Holes 1x Power Switch and 1x Reset Switch, 1x 2P Terminal Block for Remote SW 1x CMOS Battery Cable 1x 4-Pin FAN Connector 1x MIPI CSI-2 22-Pin Connector 1x MIPI CSI-2 15-Pin Connector Intregated RTC |
| Audio | 1x Mic-in, 1x Line-out |
| Operating System | |
| Linux | Linux Ubuntu 22.04 with JetPack 6.2 |
| Power | |
| Power Adapter | Optional AC/DC 24V/5A, 120W Optional AC/DC 20/7.5A, 150W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable Power Ignition Management |
| Power Supply Voltage | DC IN 9~36V |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -20°C to 55°C (15W, 25W) -20°C to 35°C (40W) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class B, UL 62368-1, 3rd Ed., RoHS 3.0, REACH |
| Vibration | With SSD: 5 Grms (5 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimension | 150 (W) x 105 (D) x 65 (H) mm |
| Weights | 1.1kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting/DIN rail (Optional) |
JCO-1000-ORN
Entry-Level AI Edge Computer With NVIDIA Jetson Orin Nano & NX Processor
Featuring NVIDIA Jetson Orin NX (16GB/8GB) and Nano (8GB/4GB) Orin system-on-module (SOM), the JCO-1000 Series offers entry-level AI performance with up to 157 TOPS in the whole JCO series. With configurable power modes (10W to 40W), rugged design, NVMe data storage, and rich I/O, the JCO-1000-ORN is deployment-ready for the harshest conditions.
- NVIDIA Jetson Orin NX & Nano Modules with 157 TOPS of AI Performance
- 4x USB 3.2 Gen 2 (10 Gbps)
- 4K Display
- 1x External Dual Nano SIM socket
- 8-bit Isolated DIO, CAN Bus
- OOB (Out-of-Band) Management
- World-Class Certification: CE, FCC, UL-Listed
NVIDIA Jetson Orin NX & Nano Super Modules
The NVIDIA Jetson Orin NX Super & Nano Super modules deliver up to 157 TOPS of AI performance in the smallest Jetson form-factor, with power options between 10W and 40W.
- Jetson Orin NX Super & Nano Super Module
- Up to 157 TOPS AI Performance
- 10W – 40W TDP
- AMRs, vision sensors, and embedded AI systems

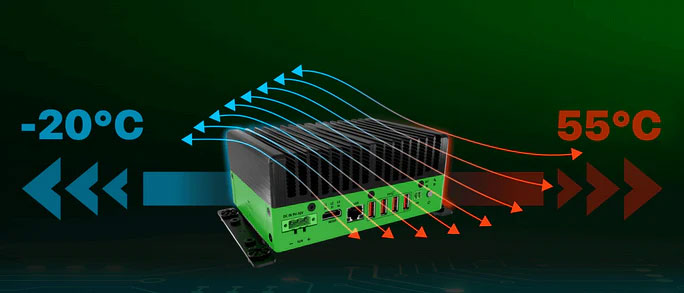

Built Rugged, Built Ready
The JCO-1000 series is engineered for industrial-grade durability, ensuring reliable performance under harsh conditions.
- Wide Operating Temperature (-20°C to 55°C)
- Shock & Vibration Resistance (MIL-STD-810G Compliant)
- Power Protection: OVP, OCP, and RPP
- TPM 2.0

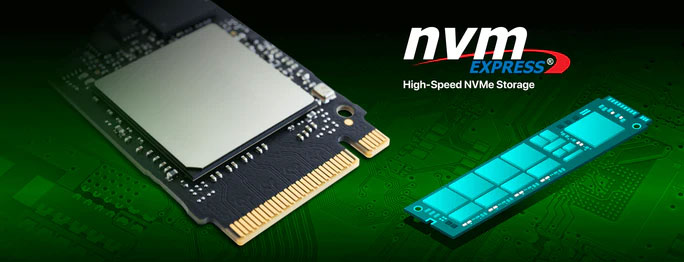

High-Speed NVMe Storage
- One high-speed PCIe x4 M.2 M Key with NVMe capabilities
- Provide high-speed storage options for enhanced data transfer and system performance.

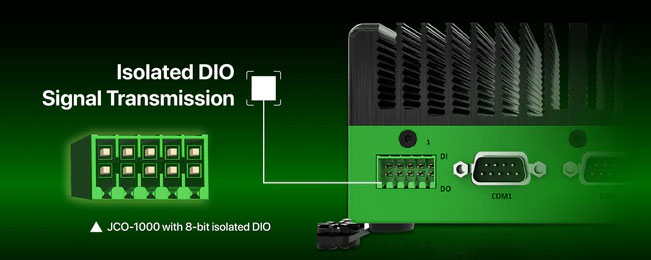

Isolated DIO Signal Transmission
The JCO-1000 Series is designed with 8-bit isolated DIO, providing essential digital signaling capabilities suitable for basic control and monitoring tasks.
Wireless Connectivity
Gain wireless connectivity on JCO-1000-ORN through SIM cards, M.2 B Key and E Key.
- 1 x External Dual Nano SIM socket for 5G, and 4G/LTE connectivity
- M.2 E Key for Wi-Fi and Bluetooth
Jetpack 6.2 SDK Support
JCO Series now fully supports NVIDIA Jetpack 6.2 SDK, introducing critical upgrades such as the groundbreaking "Super" performance mode, latest Linux OS, and enhanced libraries, APIs & developer tools, delivering cutting-edge performance for mission-critical applications.
Beyond the Network : Out-Of-Band Management
Gain easy and reliable 24/7 remote management for your edge deployments even when the OS is unresponsive. Utilizing the Allxon Portal (a secure cloud-based management platform from Allxon), IT teams are able to tap into:
- Dedicated RJ45 port for secure, hardware-level access
- Control hardware at the BIOS level for power cycling and troubleshooting
- Recover systems remotely even when the OS or main network is down
- Manage devices centrally across distributed edge mesh network deployments

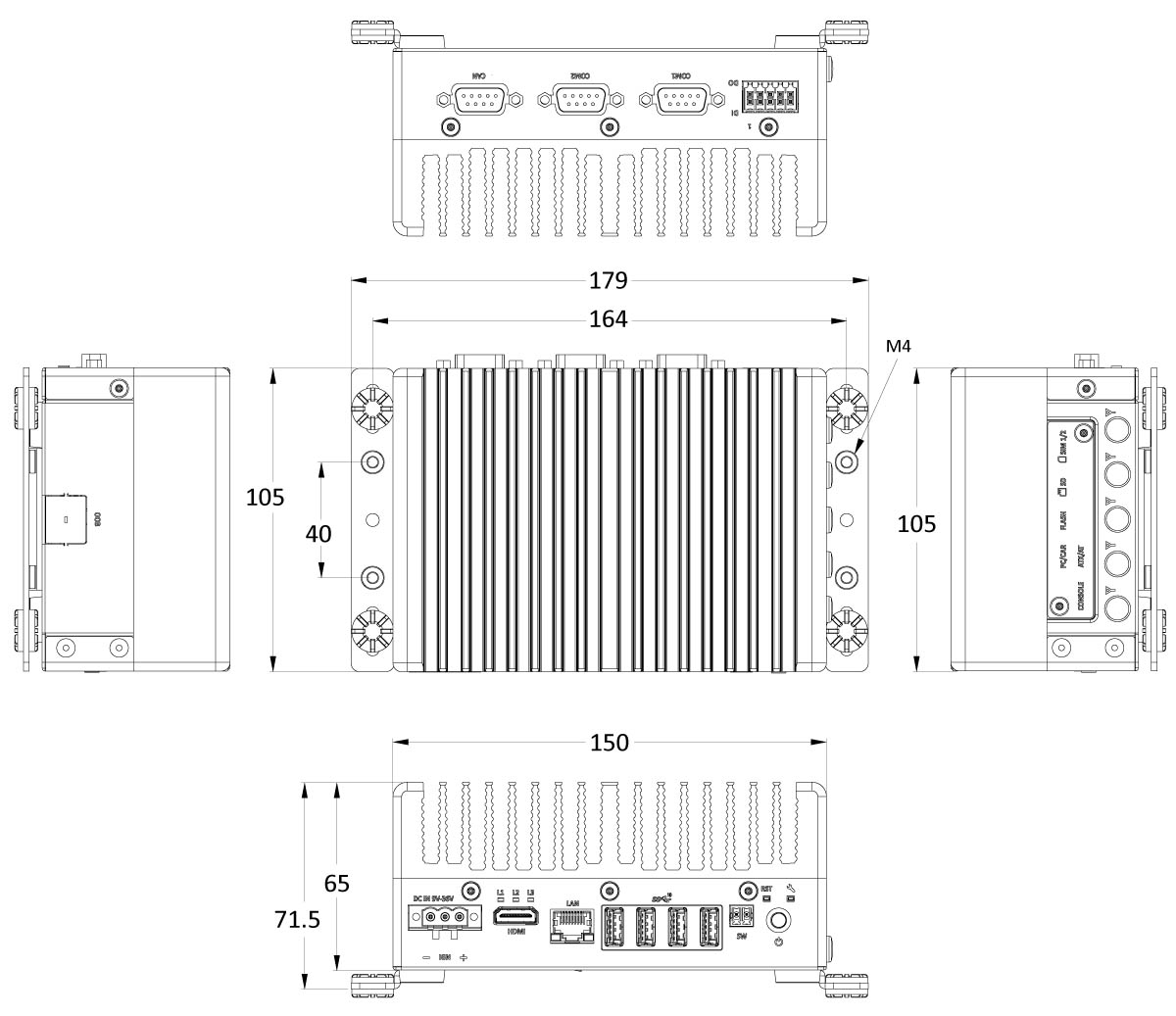

Mechanical Layout
Product Dimension
