P-JCO-3000-ORN-B
Mid-Range AI Edge Computer with NVIDIA Jetson Orin™ NX or Nano Super
- NVIDIA® Jetson Orin™ NX 8GB/16GB or Orin Nano Super 8GB/4GB
- 1x HDMI 4K, 3840 x 2160 @ 60Hz
- 4x GbE RJ45 LAN with Optional PoE option
- 1x External Dual Nano SIM socket
- 1x M.2 (M Key, 2242/2280, PCIex 4,Support NVMe)
- 4x USB 3.2 Gen 2, 1x USB Type-C
- 8x DI + 8x DO with isolation
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -20°C up to 60°C
| System | |
| Processor | NVIDIA® Jetson Orin™ NX GPU or Orin™ Nano Super GPU • NX 16G: 1024-core NVIDIA Ampere architecture GPU (25W/100 TOPS) • NX 8G: 1024-core NVIDIA Ampere architecture GPU (20W/ 70 TOPS) • Nano Super 8G: 1024-core NVIDIA Ampere architecture GPU (25W/67 TOPS) • Nano Super 4G: 512-core NVIDIA Ampere architecture GPU (25W/34 TOPS) |
| LAN Chipset | GbE1: RGMII GbE2~4: Intel LAN IC |
| System Memory | 8G/16G LPDDR5 @ 3200 MHz on SOM |
| TPM | TPM 2.0 |
| Display | |
| HDMI | 1x HDMI 4K (3840*2160) 60Hz |
| Storage | |
| M.2 | 1x M.2 (M Key, 2242/2280, PCIe x4, NVMe) (Default 128GB) |
| SD | 1x Micro SD Slot |
| SIM Socket | 1x External Dual Nano SIM socket (M.2 B Key attached) |
| Expansion | |
| M.2 | 1x M.2 (B Key, 2242/3042/3052, USB 3.2 Gen1, Support 4G/5G) 1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth) |
| I/O | |
| CAN | CAN 2.0 B |
| COM | 2x RS-232/422/485 (Switch by MCU) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 4x RJ45 LAN |
| OOB | 1x RJ45 (Optional OOB Management Module, Occupied 1x COM & Micro USB Console Port) |
| PoE | 4x RJ45 (Optional, PoE+ 120W Module, Type 2, Max 25W per Port) |
| USB | 4x USB 3.2 Gen 2 (10 Gbps, Shared with USB 3 Hub) 1x Micro USB (Console) 1x USB Type-C (USB 2.0, For Flash OS) |
| Others | 6x WiFi Antenna Holes 1x Power Switch, 1x Reset Switch, 1x Force Recovery Switch 1x 2P Terminal blcok for Remote Power SW 1x CMOS Battery Cable 1x 4-Pin FAN Connector |
| Operating System | |
| Linux | Linux Ubuntu 22.04 with JetPack 6.2 |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W Optional AC/DC 24V/5A, 120W (For PoE Model) Optional AC/DC 24V/9.2A, 220W (For PoE Model) |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable Power Ignition Management |
| Power Supply Voltage | 9~36VDC 12V: PoE Power Budget Supports Up to 60W 24V: PoE Power Budget Supports Up to 120W |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -20°C to 60°C (15W) -20°C to 55°C (25W) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | • CE, FCC Class A • UL 62368-1, 3rd Ed. • E-mark (E24) • RoHS 3.0, REACH |
| Vibration | With SSD: 5 Grms (5 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimension | 192 (W) x 140(D) x 58(H) mm |
| Weights | 2.8 ~ 3.6 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting/DIN rail (Optional) |
JCO-3000-ORN Series
Mid-Range AI Edge Computer With Nvidia Jetson Orin NX/Nano Processor
Featuring NVIDIA Jetson NX (16GB/8GB) and Nano (8GB/4GB) Orin system-on-module (SOM), the JCO-3000 Series offers mid-range AI performance with up to 100 TOPS. With configurable power modes (7W to 25W), rugged design, NVMe data storage, and rich I/O, it meets the demands of edge computing in the harshest conditions.
- Power Efficient Edge AI Computer with Nvidia Jetson Orin NX and Nano Modules
- Support up to 4x PoE Camera)
- Isolated DIO Ports up to 8 or 16x DIO
- Out-of-Band Module for Remote Management
- Built Rugged. Built Ready Fanless Design
- CAN Bus and Power Ignition Management
- World-Class Certification: CE, FCC, UL-Listed

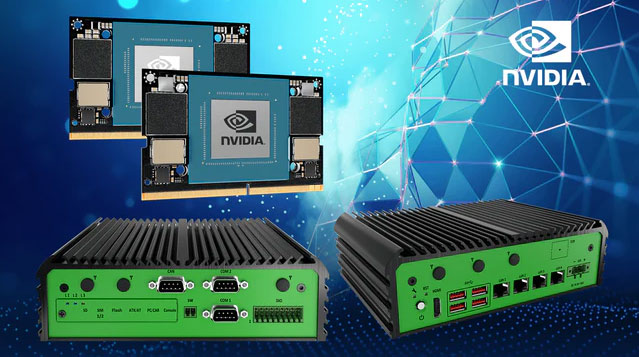

NVIDIA Jetson Orin NX and Nano Modules
The NVIDIA Jetson Orin NX and Orin Nano modules are pivotal in enhancing edge AI capabilities, providing substantial AI performance with efficient power consumption.
| AI Performance | TDP | Applications | |
| Orin NX | 70 -100 TOPS | 10W - 25W | A wide range of edge applications |
| Orin Nano | 20 – 40 TOPS | 7W - 15W | Edge device and IIoT |
| Orin Nano Super | 20 – 67 TOPS | 7W - 25W | Smart City, IIoT |
Built Rugged, Built Ready
- Wide Operating Temperature (-20°C to 55°C)
- Shock & Vibration Resistant (MIL-STD-810G Compliant)
- TPM 2.0

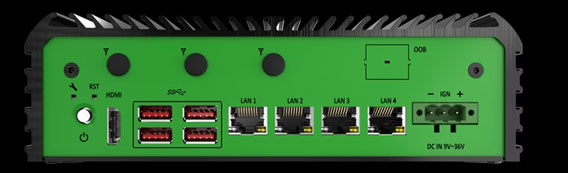

Configurable PoE+ for Machine Vision
The JCO-3000 Series supports up to 4x RJ45 PoE+ ports designed to support flexible network configurations and IoT vision cameras.
- JCO-3000-ORN-B_4L: 4x RJ45 GbE/Optional PoE+
Isolated DIO Signal Transmission
The JCO-3000 Series is designed to support isolated DIO ports with two distinct configurations for a wide range of industrial applications:
- JCO-3000-ORN-B_4L: 16x DIO (8 in / 8 out) configuration
Jetpack 6.2 SDK Support
JCO Series now fully supports NVIDIA Jetpack 6.2 SDK, introducing critical upgrades such as the groundbreaking "Super" performance mode, latest Linux OS, and enhanced libraries, APIs & developer tools, delivering cutting-edge performance for mission-critical applications.
Beyond the Network : Out-Of-Band Management
Gain easy and reliable 24/7 remote management for your edge deployments even when the OS is unresponsive. Utilizing the Allxon Portal (a secure cloud-based management platform from Allxon), IT teams are able to tap into:
- Dedicated RJ45 port for secure, hardware-level access
- Control hardware at the BIOS level for power cycling and troubleshooting
- Recover systems remotely even when the OS or main network is down
- Manage devices centrally across distributed edge mesh network deployments

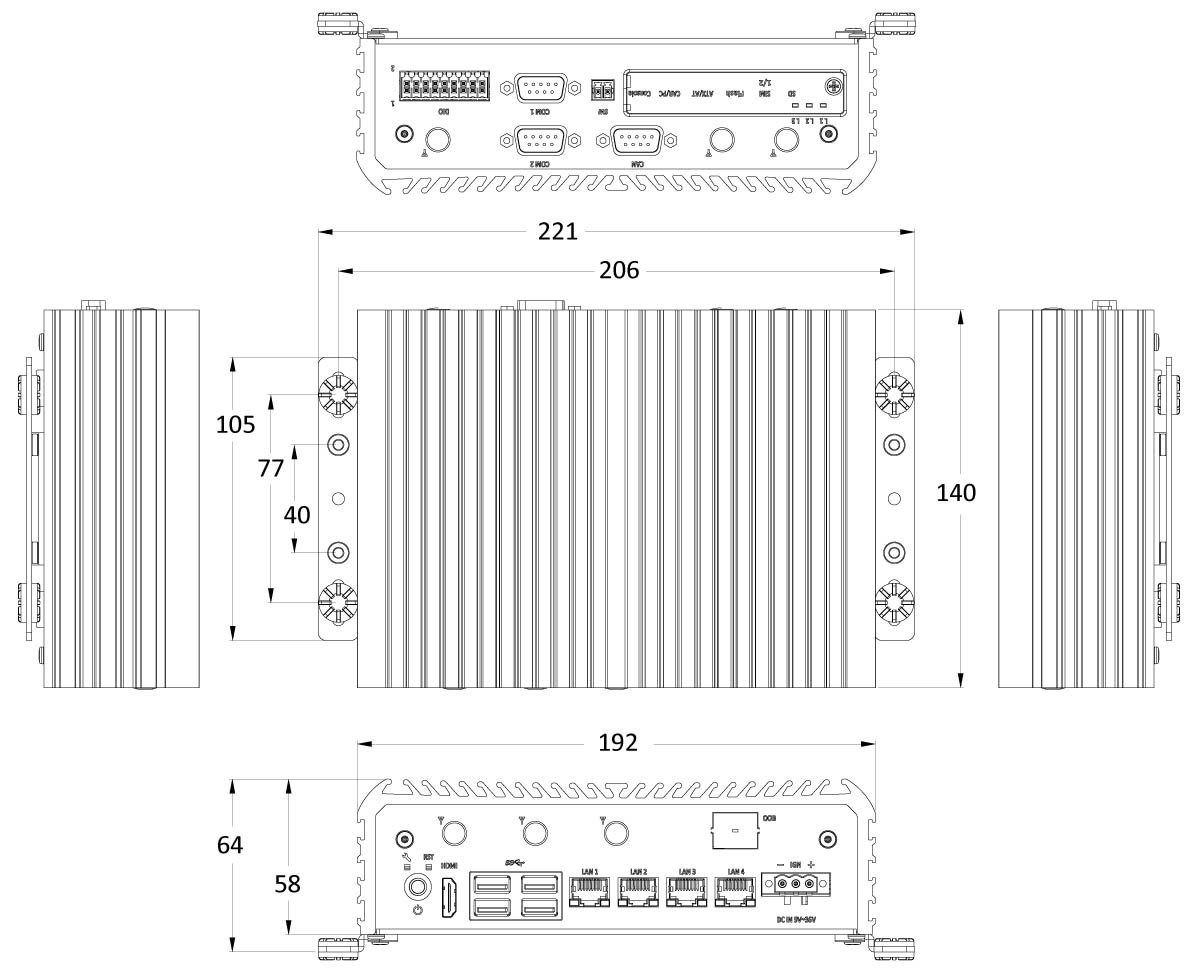

Mechanical Layout
Product Dimension
JCO Series:
AI Edge Fanless Industrial Computers
NVIDIA Jetson Modules Power-Efficient Edge AI And Embedded Computing
The JCO Series is a powerful Al Edge computer series with NVIDIA Jetson Orin modules. This series offers exceptional Al computing capabilities, making it perfect for sophisticated robotics, autonomous machinery, and high-end embedded Al tasks.
Designed to withstand harsh industrial conditions, the JCO Series ensures consistent performance even in extreme environments.
Jetson AGX Orin
- Best Edge AI (TOPS) Performance
- Unmatched I/O Configurations
- EDGEBoost I/O Technology
- Certification Ready: UL, FCC, CE
Jetson Orin NX
- Small Form Factor AI (TOPS) Performance
- Small Form Factor I/O configuration
- Certification Ready: UL, FCC, CE
Jetson Orin Nano
- Fanless Mini Edge AI (TOPS) Performance
- Ultra-Mini fixed I/O configuration
- Certification Ready: UL, FCC, CE
Jetson AGX Orin Series
High Performance
- Jeton AGX Orin System on Module (32GB/64GB)
- Unmatched I/O Configurations
- Low-Power Configurations (15W and 60W)
Jetson Orin NX Series
Mid Performance
- Jeton NX Orin System on Module (16GB/8GB)
- Up to 100 TOPS AI Performance
- Low-Power Configurations (10W ~ 25W)
Jetson Orin Nano Series
Entry Performance
- Jeton Nano Orin System on Module (8GB/4GB)
- Up to 40 TOPS AI Performance
- Low-Power Configurations (7W and 15W)
Benefits Of Nvidia Jetson
AI Supercomputing at the Edge:
Experience unmatched AI performance with Jetson Orin's powerful GPU cores, dedicated AI accelerators, and high-speed connectivity. Perform complex AI inferencing tasks in real-time with ease.
Next-Generation Architecture:
Built on NVIDIA's cutting-edge architecture, Jetson Orin delivers a quantum leap in performance and efficiency, enabling groundbreaking AI applications at the edge.
Embedded and Energy-Efficient Form Factor:
Jetson Orin packs immense computing power into a compact and energy-efficient package, making it perfect for deployment in space-constrained and power-limited environments.
Scalability and Flexibility:
From entry-level to high-performance applications, Jetson Orin offers scalability and flexibility to meet the diverse needs of your project.
Developer-Friendly Environment:
Dive into AI development with confidence. Jetson Orin comes with comprehensive developer tools, SDKs, and libraries, empowering you to accelerate your AI projects.
