P-JCO-6000-ORN-A
High Performance AI Edge Computer with NVIDIA Jetson AGX Orin™, 2x EDGEBoost I/O Support
- 8-core/12-core Arm® Cortex®-A78AE v8.2 64-bit CPU
- LPDDR5 3200MHz on SOM. 32 GB/64 GB
- 1x HDMI, 3840 x 2160 @ 60Hz1x GbE, 1x 10 GbE (Wake-on-LAN and PXE)
- 2x External SIM Socket, 1x Micro SD Socket
- 1x eMMC 5.1 Storage, 64 GB
- 1x M.2 (M Key, 2280, PCIe x4, Support NVMe)
- 1x USB 3.2 Gen 2, 1x USB Type C, 1x USB 2.0
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -20°C to 55°C (60W CPU)
- Support GMSL 2 QUAD Port Mini Fakra, 8x Ports | 1280x720 @30FPS (optional)
- Up to 2x EDGEBoost I/O Support
| System | |
| Processor | • 64 GB, 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU (60W/275 TOPS) • 32 GB, 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (40W/200 TOPS) |
| LAN Chipset | GbE1: Marvell 88e1512 (right) 10 GbE2: Marvell AQC113(left) |
| System Memory | AGX Orin 32 GB/64 GB LPDDR5 @ 3200 MHz on SOM |
| TPM | TPM 2.0 |
| Display | |
| HDMI | 1x HDMI, 3840 x 2160 @ 60Hz |
| Storage | |
| eMMC | 1x eMMC 5.1, 64 GB |
| M.2 | 1x M.2 (M Key, 2280, PCIe x4, Support NVMe) (Default 128GB) |
| SD | 1x Micro SD Socket |
| SIM Socket | 2x Micro SIM Socket (M.2 B Key attached) |
| Expansion | |
| M.2 | 1x M.2 (B Key, 3042/3052, USB 3.2 Gen 2, Support 4G/5G Module) 1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth) |
| Expansion Modules | |
| Support EDGEBoost I/O Modules | • 4x GbE module with Intel® I350 Chipset, RJ45/M12 connector (PoE optional) • 2x RJ45 10GbE with Intel X710 Chipset • 4x USB 3.0 Locking Type with 2x screw hole • 4x USB 3.0 (share PCIe Gen2 x1 bandwidth) • 1x M.2 M Key, PCIe x4 Lane, 2242/2260 for NVMe Storage *The left EBIO Bracket on the front panel don't support PoE Module |
| Operating System | |
| Linux | Linux Ubuntu 20.04 with JetPack |
| I/O | |
| CAN | 2x CAN 2.0 B |
| COM | 2x RS-232/422/485 (Switch by MCU) |
| DIO | 8 in / 8 out (Isolated) |
| EDGEBoost I/O Bracket | 2x EDGEBoost I/O Bracket |
| GMSL Camera | GMSL 2 Camera Support by 2x Quad Port Mini Fakra, supporting 8x 1280x720 @ 30 FPS (Optional) |
| LAN | 2x RJ45 |
| OOB | 1x RJ45 (OOB Management Module, Optional, Occupied 1x EBIO Bracket and 1x COM & 1x USB Type-C Console Port) |
| PoE | By Optional PoE Power Module, Support up to 4x RJ45/M12 LAN Module |
| USB | 1x USB 3.2 Gen 2 (10 Gbps) 1x USB Type C (Console) 1x USB 2.0 (OS Flash) |
| LED | LED 1 : System Status (Blue) LED 2 : Programmable LED (Blue) LED 3 : Programmable LED (Blue) LED 4 : Programmable LED (Blue) LED 5 : Programmable LED (Blue) LED 6 : Programmable LED (Red) |
| Others | 6x Antenna Holes 1x Power Switch, 1x Reset Switch, 1x Force Recovery Switch 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/CAR Mode Switch |
| Power | |
| Power Adapter | Optional AC/DC 24V/5A, 120W Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/11.67V, 280W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable Power Ignition Management |
| Power Supply Voltage | DC IN 9~48V DC IN 48~110V, Optional (occupied 1x EBIO Bracket) 12V: PoE Power Budget Supports Up to 40~60W 24V: PoE Power Budget Supports Up to 120W |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -20°C to 55°C (AGX 64G, MaxN Mode at 68 Watt, Non-Throttling) -20°C to 50°C (AGX 64G, MaxN Mode at 68 Watt, Non-Throttling, With PoE/10G/4U3V Module, full CPU+GPU stressing) with 0.6 m/s airflow |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | EMI: • CE • FCC Class A (47 CFR part 15.109 and part 15.107) • ICES-003 • UKCA EMC Compliance: • Railway EMC: EN 50155: 2017, EN 50121-1: 2017, EN 50121-3-2: 2016 • Industrial EMC: EN 61000-4-2: 2009, EN IEC 61000-4-3: 2020, EN 61000-4-4: 2012, EN 61000-4-5: 2014 +A1: 2017, EN 61000-4-6: 2014 • E-Mark (E24) Safety: • UL Safety Pending: UL62368-1, 3rd Ed., (cULus) • Test procedure: CB Scheme • Standard: IEC 62368-1:2018 Green Product: • RoHS 3.0 (Directive 2015/863/EU) • REACH |
| Vibration | IEC60068-2-64:2008 With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) Designed to comply with MIL-STD-810G Method 514.7 Procedure I |
| Shock | IEC60068-2-27:2008 With SSD: 50G half-sin 11ms Designed to comply with MIL-STD-810G Method 516.7 Procedure I Package Drop Test: ISTA 2A |
| Physical | |
| Construction | 270 (W) x 190 (D) x 95 (H) mm |
| Weights | 6 ~ 7 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
JCO-6000-ORN Series
High-Performance AI Edge Computer With Nvidia Jetson AGX Orin Processor
Featuring NVIDIA Jetson AGX Orin 32GB/64GB system-on-module (SOM), the JCO-6000 Series offers exceptional AI performance with up to 275 TOPS. With configurable power modes (40W to 60W), rugged design, NVMe data storage and modular I/O, it meets the demands of edge computing in the harshest conditions.
- Powerful Edge AI Computer with Nvidia Jetson Orin AGX Modules (275 TOPS)
- EDGEBoost I/O Modules for USB3 Locking, PoE and GigE Vision Cameras
- 8x Mini-Fakra connectors for GMSL Cameras
- RJ45 Out-of-Band Port for remote management
- CAN Bus and Power ignition Management
- Built Rugged. Built Ready Fanless Design
NVIDIA Jetson Orin AGX Module
AGX Orin is the flagship model within the Jetson Orin lineup, designed for demanding AI applications such as autonomous vehicles, robotics, industrial automation, and video surveillance. Provides powerful processing capabilities suitable for applications that require real-time AI inference, sensor fusion, and high-performance computing.
| Jetson AGX Orin Series | Jetson AGX Orin 64GB | Jetson AGX Orin 32GB |
| AI Performance | 275 TOPS | 200 TOPS |
| GPU | 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores | 1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores |
| CPU | 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Power | 15W - 60W | 15W - 40W |

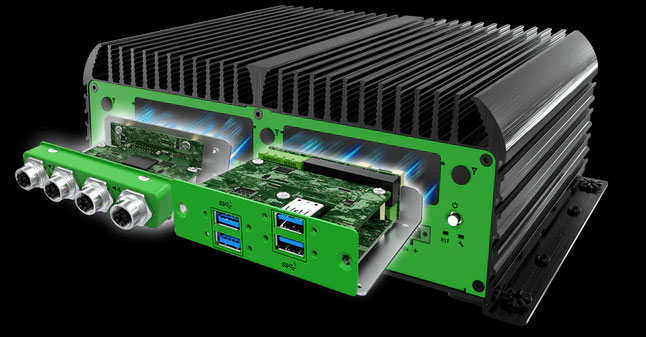

EDGEBoost I/O: Mix and Match Modularity
- 2x EDGEBoost I/O modules
- Blazing-fast USB3 Locking module with 5 Gbps
- Dual 10 GbE Connectivity
- Hassle-free RJ45/M12 PoE Support
- Modular M.2 NVMe Storage
- OOB module for remote management
EBIO-4U3L-J
4x USB 3.0 with Locking
EBIO-4U3-J
4x USB 3.0
EBIO-4ETH-J
4x 1GbE RJ45 LAN
EBIO-4ETH-POE-J
4x 1GbE RJ45 LAN with PoE Support
EBIO-4ETH-M12-J
4x 1GbE M12 LAN
EBIO-4ETH-POE-M12-J
4x 1GbE M12 LAN with PoE Support
EBIO-M2MK-J
1x M.2 M-Key
EBIO-D10G-J
2x 10GbE LAN
EBIO-OOB-J
1x RJ45 OOB

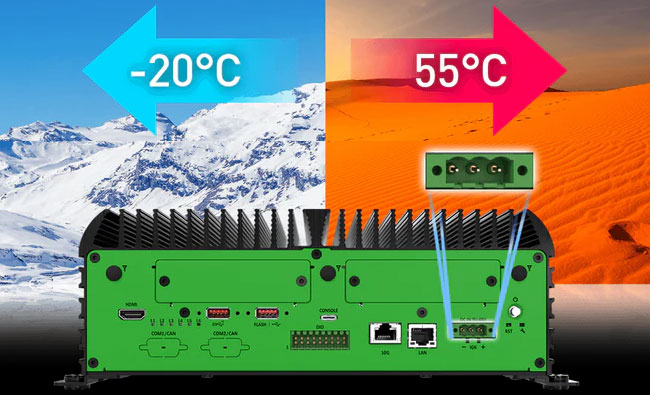

Built Rugged, Built Ready
- Wide Operating Temp. (-20°C to 55°C)
- Shock & Vibration Resistant (MIL-STD-810G Compliant)
- Wide Power Input (9~48VDC, optional 48~110VDC)
- TPM 2.0

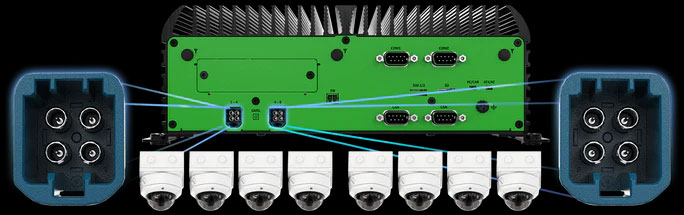

Connect High-Speed Vision Cameras : USB3, PoE, and GMSL
- 8 x GMSL cameras support through mini-Fakra connectors
- USB3 Vision and PoE for various camera types and system versability

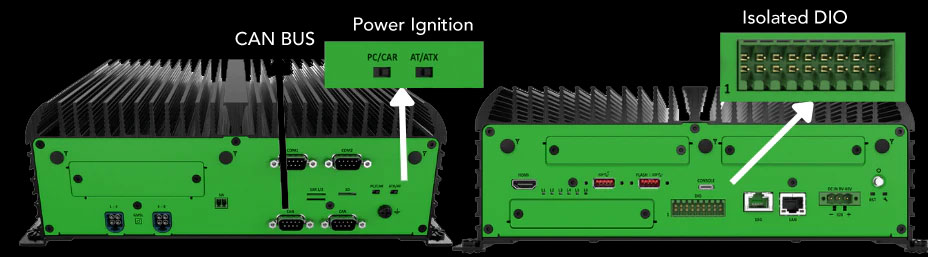

Automation-Ready with CAN, DIO, and Power Ignition
- CAN FD
- Power Ignition Management
- Isolated 16-bit DIO (8 in/8 out)
Jetpack 6.2 SDK Support
JCO Series now fully supports NVIDIA Jetpack 6.2 SDK, introducing critical upgrades such as the groundbreaking "Super" performance mode, latest Linux OS, and enhanced libraries, APIs & developer tools, delivering cutting-edge performance for mission-critical applications.
Beyond the Network : Out-Of-Band Management
Gain easy and reliable 24/7 remote management for your edge deployments even when the OS is unresponsive. Utilizing the Allxon Portal (a secure cloud-based management platform from Allxon), IT teams are able to tap into:
- Dedicated RJ45 port for secure, hardware-level access
- Control hardware at the BIOS level for power cycling and troubleshooting
- Recover systems remotely even when the OS or main network is down
- Manage devices centrally across distributed edge mesh network deployments

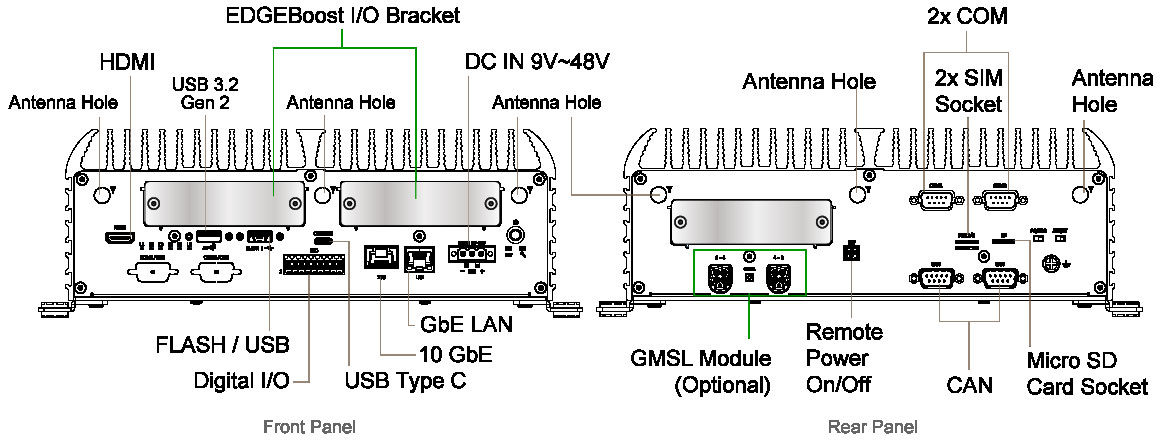

Mechanical Layout

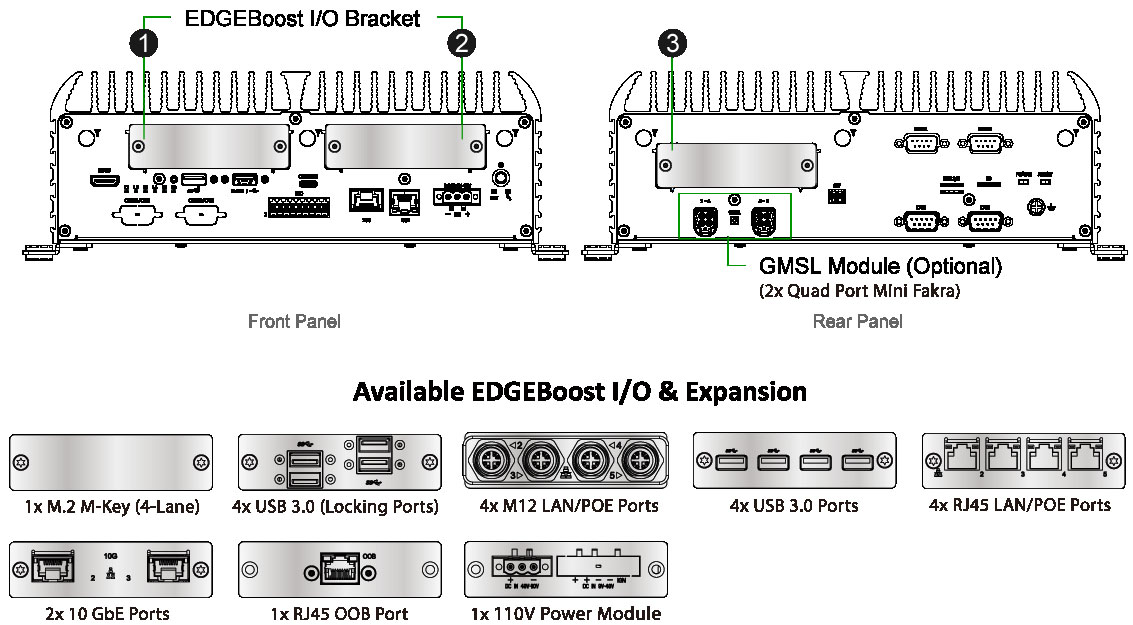

Product Dimension
JCO Series:
AI Edge Fanless Industrial Computers
NVIDIA Jetson Modules Power-Efficient Edge AI And Embedded Computing
The JCO-6000-ORN-A series is an ultra-rugged fanless edge AI industrial computer powered by NVIDIA Jetson AGX Orin modules (275 TOPS).
It supports up to 8x GMSL2 cameras and includes up to 2x EDGEBoost I/O for USB3, PoE, and GigE vision cameras. This Edge AI computer also features remote management capabilities through an OOB module.
Jetson AGX Orin
- Best Edge AI (TOPS) Performance
- Unmatched I/O Configurations
- EDGEBoost I/O Technology
- Certification Ready: UL, FCC, CE
Jetson Orin NX
- Small Form Factor AI (TOPS) Performance
- Small Form Factor I/O configuration
- Certification Ready: UL, FCC, CE
Jetson Orin Nano
- Fanless Mini Edge AI (TOPS) Performance
- Ultra-Mini fixed I/O configuration
- Certification Ready: UL, FCC, CE
Jetson AGX Orin Series
High Performance
- Jeton AGX Orin System on Module (32GB/64GB)
- Unmatched I/O Configurations
- Low-Power Configurations (15W and 60W)
Jetson Orin NX Series
Mid Performance
- Jeton NX Orin System on Module (16GB/8GB)
- Up to 100 TOPS AI Performance
- Low-Power Configurations (10W ~ 25W)
Jetson Orin Nano Series
Entry Performance
- Jeton Nano Orin System on Module (8GB/4GB)
- Up to 40 TOPS AI Performance
- Low-Power Configurations (7W and 15W)
Benefits Of Nvidia Jetson
AI Supercomputing at the Edge:
Experience unmatched AI performance with Jetson Orin's powerful GPU cores, dedicated AI accelerators, and high-speed connectivity. Perform complex AI inferencing tasks in real-time with ease.
Next-Generation Architecture:
Built on NVIDIA's cutting-edge architecture, Jetson Orin delivers a quantum leap in performance and efficiency, enabling groundbreaking AI applications at the edge.
Embedded and Energy-Efficient Form Factor:
Jetson Orin packs immense computing power into a compact and energy-efficient package, making it perfect for deployment in space-constrained and power-limited environments.
Scalability and Flexibility:
From entry-level to high-performance applications, Jetson Orin offers scalability and flexibility to meet the diverse needs of your project.
Developer-Friendly Environment:
Dive into AI development with confidence. Jetson Orin comes with comprehensive developer tools, SDKs, and libraries, empowering you to accelerate your AI projects.
