P-JCO-1000-ORN-B_2L
Entry Level AI Edge Computer with NVIDIA Jetson Orin™ NX Super/Nano Super
- NVIDIA® Jetson Orin™ NX Super 8GB/16GB or Nano Super 8GB/4GB GPU with 32 Tensor Cores
- 1x HDMI 2.0, Up to 3840 x 2160 @ 60Hz
- 2x RJ45 LAN (1x GbE, 1x 2.5 GbE)
- 1x External Dual Nano SIM socket
- 1x M.2 (M Key, 2242/2280, PCIe x4, NVMe Storage) (128GB Default)
- 1x USB 3.2 Gen 2, 1x USB 2.0
- 4x DI + 4x DO with isolation
- Support 4x GMSL Camera
- 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -20°C up to 55°C
| System | |
| Processor | NVIDIA® Jetson Orin™ NX Super/Nano Super GPU with 32 Tensor Cores • NX 16 GB: 1024-core NVIDIA Ampere architecture GPU (40W/157 TOPS) • NX 8 GB: 1024-core NVIDIA Ampere architecture GPU (40W/117 TOPS) • Nano 8 GB: 1024-core NVIDIA Ampere architecture GPU (25W/67 TOPS) • Nano 4 GB: 512-core NVIDIA Ampere architecture GPU (25W/34 TOPS) |
| LAN Chipset | RJ45 GbE1: RGMII 2.5 RJ45 GbE2: INTEL LAN Chip |
| Audio Codec | ALC5640 |
| Watchdog | Software Programmable Supports 1~110 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| HDMI | • NX Series 1x HDMI 2.0, 3840 x 2160 @ 60Hz • Nano Series 1x HDMI 1.4, 3840 x 2160 @ 30Hz |
| Storage | |
| M.2 | 1x M.2 (M Key, 2242/2280, PCIe x4, NVMe) (Default 128GB) |
| SD | 1x Micro SD 2.0 Slot |
| SIM Socket | 1x External Dual Nano SIM socket (Attached to M.2 B Key) |
| Expansion | |
| M.2 | 1x M.2 (B Key, 2242/3042/3052, PCIe x1, USB 3.2 Gen2, Support 4G/5G Module) 1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth) |
| I/O | |
| CAN | CAN 2.0 B |
| COM | 1x RS-232/422/485 (Switchable by Software) 1x RS-232/422/485 (Internal) |
| DIO | 4 in / 4 out (Isolated) |
| GMSL Camera | Support 4x GMSL 2 Camera Support by 1x Quad Port Mini Fakra (Optional) |
| LAN | 1x GbE RJ45 1x 2.5 GbE RJ45 |
| USB | 1x USB 3.2 Gen 2 (10 Gbps), 1x USB 2.0 1x USB Type-C (For OS Flash) 1x Micro USB (For Console) |
| LED | 3x LED LED 1 : Programmable LED (Blue Color) LED 2 : Programmable LED (Blue Color) LED 3 : Programmable LED (Red Color) |
| Others | Service Panel: • 1x Micro USB (For Console) • 1x USB Type-C (For OS Flash) • 1x PC/CAR Mode Switch • 1x AT/ATX SW • 1x Micro SD Slot • 1x Dual SIM Slot 5x WiFi Antenna Holes 1x Power Switch and 1x Reset Switch 1x 2P Terminal Block for Remote SW 1x CMOS Battery Cable 1x 1x7-Pin Connector for MIC-IN & Line Out Intregated RTC Intregated G sensor & Gyroscope 1x M4 Gounding Screw |
| Audio | 1x Mic-in, 1x Line-out |
| Operating System | |
| Linux | Linux Ubuntu 22.04 with JetPack 6.2 |
| Power | |
| Power Adapter | Optional AC/DC, 24V/6.3A 150W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable Power Ignition Management |
| Power Supply Voltage | DC IN 9~36V |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -20°C to 55°C (15W, 25W) -20°C to 35°C (40W) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 62368-1 3rd Ed. CE, FCC Class B E-mark (24) EMC Conformity with EN50121-3-2 RoHS 3.0, REACH |
| Vibration | With SSD: 5 Grms (5 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimensions | 150 (W) x 105 (D) x 65 (H) mm |
| Weights | 1.1kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
JCO-1000-ORN
Entry-Level AI Edge Computer With NVIDIA Jetson Orin Nano & NX Processor
Featuring NVIDIA Jetson Orin NX (16GB/8GB) and Nano (8GB/4GB) Orin system-on-module (SOM), the JCO-1000 Series offers entry-level AI performance with up to 157 TOPS in the whole JCO series. With configurable power modes (10W to 40W), rugged design, NVMe data storage, and rich I/O, the JCO-1000-ORN is deployment-ready for the harshest conditions.
- NVIDIA Jetson Orin NX & Nano Modules with 157 TOPS of AI Performance
- 4x USB 3.2 Gen 2 (10 Gbps)
- 4K Display
- 1x External Dual Nano SIM socket
- 8-bit Isolated DIO, CAN Bus
- OOB (Out-of-Band) Management
NVIDIA Jetson Orin NX & Nano Super Modules
The NVIDIA Jetson Orin NX Super & Nano Super modules deliver up to 157 TOPS of AI performance in the smallest Jetson form-factor, with power options between 10W and 40W.
- Jetson Orin NX Super & Nano Super Module
- Up to 157 TOPS AI Performance
- 10W – 40W TDP
- AMRs, vision sensors, and embedded AI systems
Built Rugged, Built Ready
The JCO-1000 series is engineered for industrial-grade durability, ensuring reliable performance under harsh conditions.
- Wide Operating Temperature (-20°C to 55°C)
- Shock & Vibration Resistance (MIL-STD-810G Compliant)
- Power Protection: OVP, OCP, and RPP
- TPM 2.0
High-Speed NVMe Storage
- One high-speed PCIe x4 M.2 M Key with NVMe capabilities
- Provide high-speed storage options for enhanced data transfer and system performance.

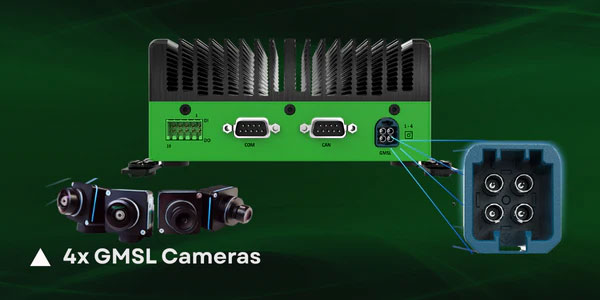

GMSL Cameras Support For Vision Systems
- On-board quad port Fakra connectors for 4x GMSL cameras support
- Purpose-built for in-vehicle vision systems, AMRs, and other smart city applications

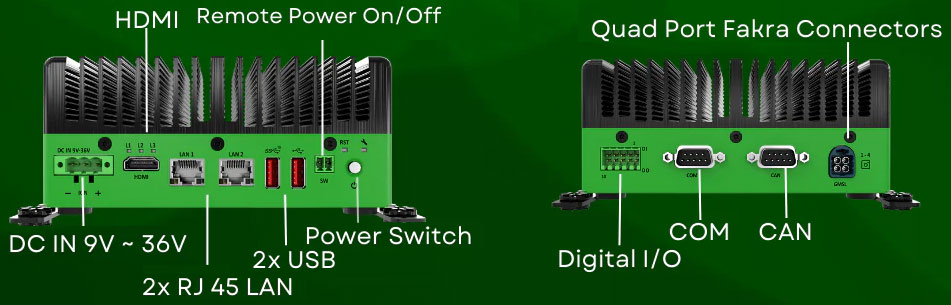

Rich I/O
- Built-in CAN Bus
- 2x 2.5GbE RJ45
- 2x USB
- 1 x 4K HDMI
- 1x quad-port Fakra connecters for 4 GMSL cameras
Isolated DIO Signal Transmission
The JCO-1000 Series is designed with 8-bit isolated DIO, providing essential digital signaling capabilities suitable for basic control and monitoring tasks.
Wireless Connectivity
Gain wireless connectivity on JCO-1000-ORN through SIM cards, M.2 B Key and E Key.
- 1 x External Dual Nano SIM socket for 5G, and 4G/LTE connectivity
- M.2 E Key for Wi-Fi and Bluetooth
Jetpack 6.2 SDK Support
JCO Series now fully supports NVIDIA Jetpack 6.2 SDK, introducing critical upgrades such as the groundbreaking "Super" performance mode, latest Linux OS, and enhanced libraries, APIs & developer tools, delivering cutting-edge performance for mission-critical applications.
Mechanical Layout
Product Dimension
ENTRY-LEVEL EDGE AI FANLESS MINI COMPUTER WITH NVIDIA JETSON ORIN SERIES
The JCO-1000-ORN Series leverages NVIDIA® Jetson Orin NX and Orin Nano modules to deliver scalable AI performance with flexible power efficiency. Both modules feature configurable power modes and Super Mode (MAXN), unlocking peak performance for demanding edge workloads.
The Orin NX provides up to 157 TOPS of AI performance at 10W–40W, making it ideal for compute intensive applications in compact environments. The Orin Nano delivers up to 67 TOPS at 10W–25W, optimized for power-sensitive yet AI-driven tasks. With memory options up to 16GB (Orin NX) and 8GB (Orin Nano), both modules support diverse AI applications across industries, from autonomous vehicles to smart infrastructure.

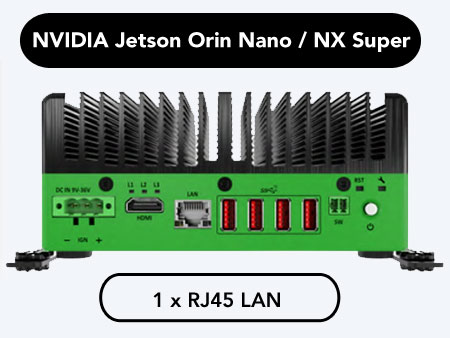

- JCO-1000-ORN-A
- NVIDIA Jetson Orin Nano/NX Super
- 1x RJ45 LAN
- 4x USB 3.2 Gen
- GMSL2 not supported
- OOB supported
- CE, FCC Class C, UL-Listed

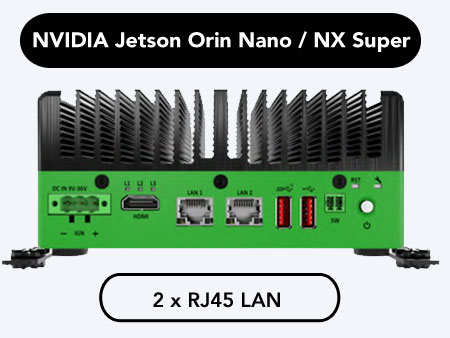

- JCO-1000-ORN-B
- NVIDIA Jetson Orin Nano/NX Super
- 2x RJ45 LAN
- 1x USB 3.2 Gen 2, 1x USB 2.0
- 4x GMSL2
- OOB not supported
- CE, FCC Class C, UL-Listed, E-mark (E24), EMC Conformity with EN50121-3-2

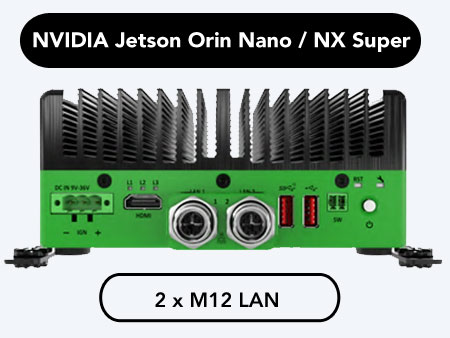

- JCO-1000-ORN-C
- NVIDIA Jetson Orin Nano/NX Super
- 2x M12 LAN
- 1x USB 3.2 Gen 2, 1x USB 2.0
- 4x GMSL2
- OOB not supported
- CE, FCC Class C, UL-Listed, E-mark (E24), EMC Conformity with EN50121-3-2
