AD-PPC-315SW ADL_N
15.6" Fanless Widescreen Panel PC with Intel® Processor N97, Quad-Core
- Intel® Processor N97, Quad-Core, 2.0GHz
- 15.6" true-flat TFT LCD with projected capacitive touch control
- Fanless design with low power consumption
- Supports 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1), 1 x 2.5" SATA bay for storage
- Supports dual displays (1 x external DP)
- Supports iDoor, PCI or PCIe
- Supports VESA 100
- IP66-rated front panel
Datasheet
Product Specification
| Model | PPC-315SW-PN9 |
| Hardware | |
| CPU | Intel® N97 2.0GHz Quad-Core |
| Memory | 1 x DDR5 SO-DIMM Slot |
| Storage | 1 x NVMe/SATA M.2 SSD slot (2242/2280 M-key), 1 x 2.5" SSD/HDD Bay |
| LAN | 2 x 10/100/1000/2500 Mbps |

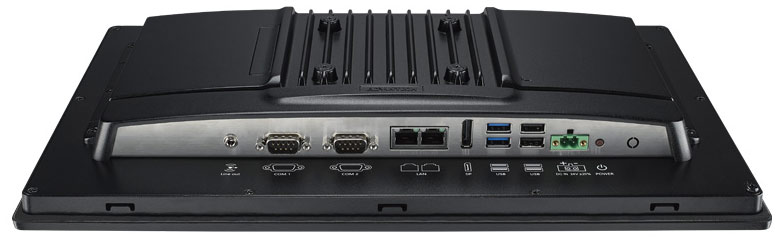

| I/O | 2 x RS-232/422/485, 2 x USB 3.2, 2 x USB 2.0, 1 x DP, 1 x Line out, 1 x iDoor Slot |
| Expansion | 1 x M.2 E Key 2230, 1 x M.2 B key 2242/3042/3052, 1 x PCI or PCIe x 1 |
| Watchdog Timer | 1~255 s |
| OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android |
| Power Input | 24 VDC ±20% |
| Power Consumption | 35 W @ 24VDC |
| Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA |
| Mechanical | |
| Dimension (W x H x D) | 395.7 x 245.1 x 50.4 mm |
| Weight (Net) | 4.3 kg |
| LCD Display | |
| Display Size | 15.6" |
| Max. Resolution | 1920 x 1080 |
| Viewing Angle (H/V°) | 178/178 |
| Luminance (cd/m2) | 350 |
| Backlight Life (hrs) | 50,000 |
| Touchscreen | |
| Touch Type | PCAP |
| Environment | |
| Operating Temperature | -10~50 °C (14~122 °F) |
| Storage Temperature | -20~60 °C (-4~140 °F) |
| Relative Humidity | 95% RH (non-condensing) |
| Ingress Protection | Front Panel IP66 |
