AD-PPC-318SW ADL_N
18.5" Fanless Widescreen Panel PC with Intel® Processor N97, Quad-Core
- Intel® Processor N97, Quad-Core, 2.0GHz
- 18.5" true-flat TFT LCD with projected capacitive touch control
- Fanless design with low power consumption
- Supports 1 x M.2 M Key 2242/2280 (SATA or NVME PCIe x 1), 1 x 2.5" SATA bay for storage
- Supports dual displays (1 x external DP)
- Supports iDoor, PCI or PCIe
- Supports VESA 100
- IP66-rated front panel
Datasheet
| Model | PPC-318SW-PN9A |
|---|---|
| Hardware | |
| CPU | Intel® N97 2.0GHz Quad-Core |
| Memory | 1 x DDR5 SO-DIMM Slot |
| Storage | 1 x NVMe/SATA M.2 SSD slot (2242/2280 M-key), 1 x 2.5" SSD/HDD Bay |
| LAN | 2 x 10/100/1000/2500 Mbps |

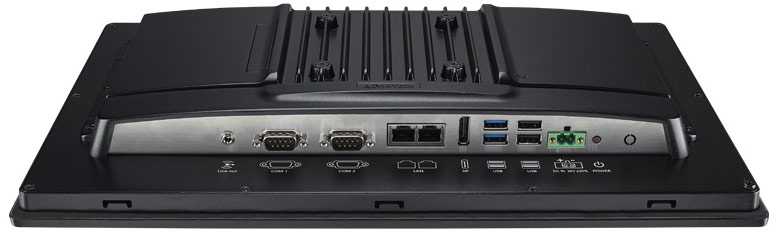

| I/O | 2 x RS-232/422/485, 2 x USB 3.2, 2 x USB 2.0, 1 x DP, 1 x Line out, 1 x iDoor Slot |
| Expansion | 1 x M.2 E Key 2230, 1 x M.2 B key 2242/3042/3052, 1 x PCI or PCIe x 1 |
| Watchdog Timer | 1~255 s |
| OS Support | Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android |
| Power Input | 24 VDC ±20% |
| Power Consumption | 40 W @ 24 VDC |
| Certification | CE, FCC Class B, BSMI, CB, UL, CCC, UKCA |
| Mechanical | |
| Dimension (W x H x D) | 464.5 x 285.5 x 53.4 mm |
| Weight (Net) | 5.2 kg |
| LCD Display | |
| Display Size | 18.5" |
| Max. Resolution | 1366 x 768 |
| Viewing Angle (H/V°) | 170/160 |
| Luminance (cd/m2) | 450 |
| Backlight Life (hrs) | 50,000 |
| Touchscreen | |
| Touch Type | PCAP |
| Environment | |
| Operating Temperature | -10~50 °C (14~122 °F) |
| Storage Temperature | -20~60 °C (-4~140 °F) |
| Relative Humidity | 95% RH (non-condensing) |
| Ingress Protection | Front Panel IP66 |

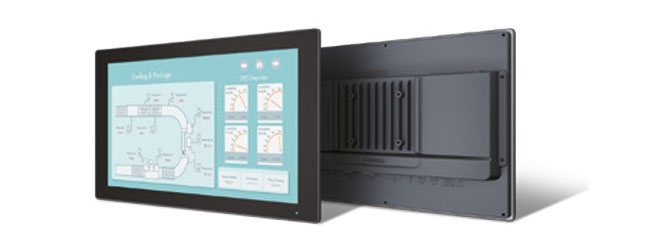

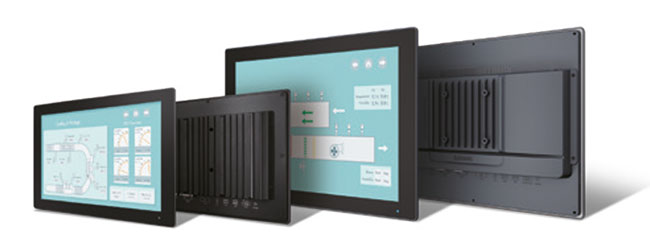

All-in-One Slim Bezel Panel PC
Better User Visual Experience
More screen real estate and fewer distractions mean you can focus better on your work
Perfect Integration into Any Environment
Seamlessly integrates into various scenarios, striking a balance between robust functionality and aesthetics
