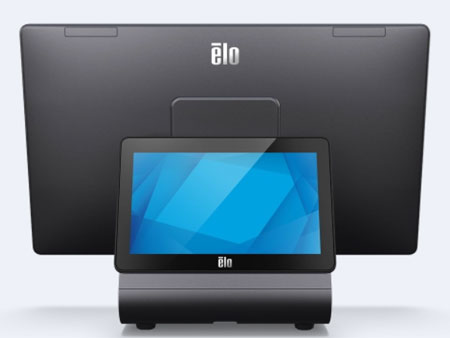

EloPOS Z10
15.6‑inch Full HD Android POS System with optional 7-inch CFD secondary display
- Compact form factor: Purposefully architected to fit everything you need at the point of sale into a sleek compact design.
- Powerful Touchscreen: The EloPOS Z10 offers a fully integrated 15.6-inch full HD interactive display.
- Interactive display for customers: Offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the customer-facing touchscreen display.
Datasheet
Product Specification
Part Number(s) | EloPOS Z10 Standard - E391994 + E398278 EloPOS Z10 Value - E392786 + E398278 |
Enclosure Color | Dark Gray Metallic |
Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 10 Touch |
Processor | Standard Model: Qualcomm Snapdragon SDA660 Value Model: Rockchip RK3399 |
Memory (RAM) | 4GB |
Storage | Standard Model: 64GB Value Model: 32GB |
OS | Android 10 with Google Play Services and EloView content deployment and management |
Diagonal Size | 15.6'' diagonal, Active matrix TFT LCD (LED) |
Aspect Ratio | 16:9 |
Active Area | 13.55" x 7.62" / 344 mm x 194 mm |
Resolution | 1920 x 1080 @ 60Hz |
Number of Colors | 8-bit (16.7 million) |
Brightness (typical) | Standard Model: LCD Panel: 350 nits TouchPro PCAP: 280 nits Value Model: LCD Panel: 350 nits TouchPro PCAP: 280 nits |
Response Time-total (typical) | 20 ms |
Contrast Ratio | 1000:1 |
Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
I/O Ports | DC Input 4 x USB-A 3.0 (900mA) RJ45 Ethernet LAN (Gigabit) |
Webcam | 5MP Max Resolution: 1920x1080 30fps Auto Focus |
Wireless | 802.11a/b/g/n/ac + Bluetooth 5.0 |
Audio Ports | Standard Model: 2x built-in Digital Microphones Value Model: 1x built-in Analog Microphone |
Speakers | Standard Model: 2x 0.7W Value Model: 2x 1W |
Power Supply | AC input voltage: 100-240 VAC Input frequency: 50-60 Hz |
Power Consumption (Typical) | Standard Model: On: 10W; Off: 0.4W; Sleep: 5W Value Model: On: 11.5W; Off: 0.68W; Sleep: 4.4W |
Dimensions | I-Series 4 Slate Standard Model: 14.6" x 8.7" x 0.52" / 370.2 mm x 221.2 mm x 13.1 mm Value Model: 14.6" x 8.74" x 0.55" / 370.8 mm x 221.8 mm x 13.95 mm Z10 Stand: 6.9" x 4.9" x 5.3" / 175 mm x 200.7 mm x 134.6 mm |
Shipping Box Dimensions | I-Series 4 Slate: 17.44" x 12.20" x 6.14" / 443 mm x 310 mm x 156 mm Z10 Stand: 8.19" x 11.8" x 11.2" / 208 mm x 300 mm x 285 mm |
Weight (Unpackaged) | I-Series 4 Slate: 3.3 lbs / 1.5 kg Z10 POS Stand: 2.4 lbs / 1.1 kg |
Weight (Packaged) | I-Series 4 Slate: 7.6 lbs / 3.5 kg Z10 POS Stand: 4.41 lbs / 2.0 kg |
Operating Temperature | 0°C to 40°C / 32°F to 104°F |
Storage Temperature | -20°C to 50°C / -4°F to 122°F |
Humidity | Operating: 20% to 80% Storage: 5% to 95% |
Regulatory approvals and declarations | UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) |
Supported Countries | Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey |
Real-Time Clock | lithium coin cell battery |
MTBF | 50,000 hours demonstrated |
Mounting Options | VESA 75mm |
OS Support | Complimentary security updates provided for the first three months. Optional extended coverage available with Elo OS 360 package. |
Sealability | Standard Model: Touchscreen optically bonded to LCD Value Model: Touchscreen sealed to LCD |
What's in the Box | I-Series 4 Slate IO Hub North American Power Cable European Power Cable 1x Power Brick 65W (E153026) Quick Install Guide 4 x M4x6 mm Flathead screws in a plastic bag 4 x M4x6 mm Panhead screws in a plastic bag Z10 POS Stand 4 x M4 screws for attaching the head to the stand 4 x M4x18 screws for attaching an optional 0702L CFD display CFD Mounting Cover Quick Install Guide Please note, the EloPOS Z10 is shipped in two boxes. One for the head and one for the stand. |
Stands, Mounts & Kits | I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E682436 0702L - Elo P/N: E796382 |
Create your perfect POS system.
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and Android 10 OS, the EloPOS Z30 brings one of the sleekest form factors to the market.
Compatible with the 15‑inch I‑Series Slate | Compatible with the 10‑ & 15‑inch I‑Series 4 | Compatible with the 15‑inch I‑Series Slate |
I/O | ||
|
|
|
Secondary Display | ||
Optional 7-inch CFD. | Optional 10‑, 13‑ or 15‑inch CFD. | Choose integrated CFD; or no CFD in stand. |
