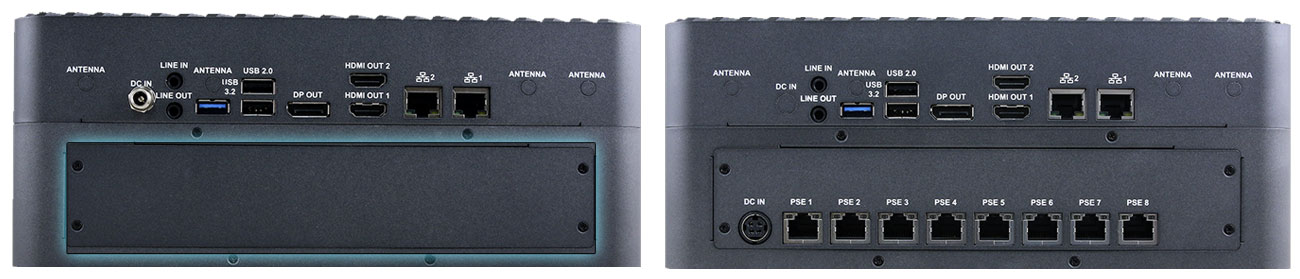

A-AIB-NIAO-S
Highly integrated Edge AI PC, with NVIDIA Jetson AGX Orin™, provide 275 TOPS and expandability
- Powered by NVIDIA® Jetson AGX Orin™ up to 275 TOPS
- 2×PCIe Gen3×4
- 3×M.2 M Key / 1×M.2 E Key / 1×M.2 B Key
- Fanless Design
- 2×USB3.2 Gen2
- CAN Bus / UART / I2C / SPI
Datasheet
| System Information | |
| NVIDIA Platform | NVIDIA Jetson AGX Orin™ 32GB/64GB |
| AI Performance | 200/275 TOPS |
| System Memory | 32/64GB 256 bit LPDDR5 204.8GB/s |
| Development Environment | |
| OS | Ubuntu 20.04 / Ubuntu 22.04 |
| Kernal | 5.10.104-tegra or Higher |
| BSP | Linux for Tegra(L4T) R35.1 or Higher |
| SDK | JetPack 5.1.1 / JetPack 6.2 or Higher |
| AI SDK GitHub | Github link |
| Storage | |
| Storage | 64GB eMMC 5.1 ( On NVIDIA Jetson AGX Orin™ Module) |
| I/O | |
| USB Port | 2×USB3.2 Gen1 ( Type A ) 2×USB2.0 ( Type A ) |
| LAN Port | 2 x RJ45 for 10/100/1000Mbps Ethernet ( DHCP Client ) |
| HDMI | 2×HDMI2.0 |
| DP | 1×DP |
| MIPI (Internal) | 16×MIPI CSI 2 Lanes ( D PHY 2.1, 4×4 | 3×4+2×2 | 2×4+4×2 | 1×4+5×2 | 6×2 MIPI Lanes, Support MIPI Camera, Capture Card ) |
| Antenna | 2 x Antenna Mounting with Dust Protection Cover |
| AC/DC Input | 1 x DC Jack |
| Audio | 1×3.5mm Line In 1×3.5mm Line Out |
| Expansion | |
| PCIe | 1×PCIe Gen3×4 Slot( Slot(*) 1×PCIe Gen3×4 Slot(**) Please select either 1×PCIe Gen3×4 Slot or 1×M.2 2280 M Key PCIe Gen4×4 Slot to use Please select either 1×PCIe Gen3×4 Slot or 1×M.2 3080 M Key PCIe Gen4×4 Slot to use |
| M.2 | 1×M.2 2230 E Key PCIe Gen4*1/USB2.0/SDIO Slot 1×M.2 2280 M Key PCIe Gen4×4 Slot 1×M.2 2280 M Key PCIe Gen4×4 Slot(*) 1×M.2 3080 M Key PCIe Gen4×4 Slot(**) 1×M.2 3042 B Key USB3.2 Gen2 ( 10G ) Slot * Please select either 1×PCIe Gen3×4 Slot or 1×M.2 2280 M Key PCIe Gen4×4 Slot to use ** Please select either 1×PCIe Gen3×4 Slot or 1×M.2 3080 M Key PCIe Gen4×4 Slot to use |
| Mechanical & Environmental | |
| Power Requirement | DC input : 12 ~28 V |
| Operating Temperature | Standard Version: 0~60。C with Airflow |
| Storage Temperature | -20~80。C |
| Dimension (W x L x H) | 265.08mm×186.70mm×105.29mm |
| Weight | 4200g |
| Ordering Information | |
| Ordering Information | AIB-NIAO-S32X-A1R:Orin AGX 32GB/64GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2 AIB-NIAO-S64X-A1R:Orin AGX 64GB/64GB SSD/HDMI2.0/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2 AIB-NIAO-S32E-A1R:Orin AGX 32GB/64GB SSD/PSE/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2 AIB-NIAO-S64E-A1R:Orin AGX 64GB/64GB SSD/PSE/Ubuntu 20.04,Jetpack 5.1.1 / Jetpack 6.2 |
| Capture Card ( Optional ) | |
| PCIe Model | 4×HDMI2.0 4×12G-SDI 16×TVI / AHD 8×GMSL2 4×HDMI 4×6G-SDI |
| M.2 Model | 1×HDMI2.0 1×12G-SDI 1×DVI-I 1×YPbPr 1×VGA |
| Optional Product Features Extension by Daughter Board | |
| SDK / Software | By request |
| AGX 5G | 5G Mobility Network ( Supports 5G / 4G / 3G SIM Module) |
| AGX PSE | "*IP Camera 8×RJ45 for 10 / 100 / 1000Mbps Ethernet with IEEE802.3af Compliant *PSE Power Supply 8×15W ( IEEE802.3af )" |
AIB Series: NVIDIA Jetson-powered Edge AI Platform
Designed for high-performance inference, machine vision, and autonomous machine applications.
- JetPack 6.x / 5.1.1: Full compatibility with the latest NVIDIA AI SDKs.
- Industrial Connectivity: Built-in CAN Bus, RS-232/485, and GPIO for direct communication with factory equipment.
- Expandability: M.2 slots for 5G/4G and WiFi 6E modules, ensuring your edge data is always connected.
