A-AIB-NW01
Edge AI System with Nvidia Jetson Orin NX/Orin Nano module
- Ideal for intelligent edge applications
- Basic performance suitable for everyday tasks
- Power by Jetson Orin™ Nano 4GB/8GB；Orin™ NX 8GB/16GB
- OS support Ubuntu 20.04, Jetpack 5.0
- Operating Temperature -15°C ~ 60°C, (-5°F ~ 140°F)
- Support wide temperature environment
Datasheet
| System Information | |
| NVIDIA Platform | NVIDIA Jetson Orin™ Nano 4GB/8GB；Orin™ NX 8GB/16GB |
| AI Performance | 20/40 & 70/100 TOPS |
| System Memory | 8/16GB 128 bit LPDDR5 102.4GB/s |
| Development Environment | |
| OS | Ubuntu 20.04, Jetpack 5.0 |
| AI SDK GitHub | Github link |
| Storage | |
| M.2 | 128GB M.2 2280 NVMe SSD |

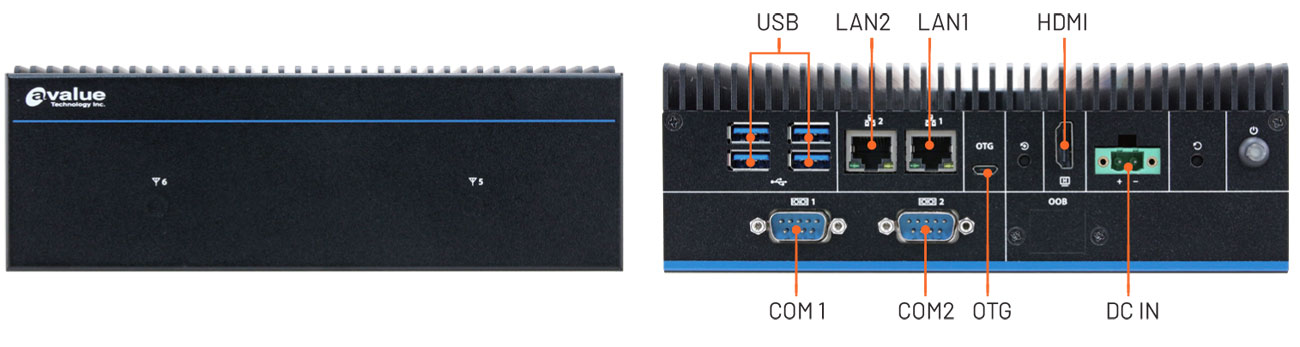

| I/O | |
| USB Port | 4 x USB3.1 TYPE-A |
| LAN Port | 2 x 10/100/1000 Mbps |
| HDMI | 1 x HDMI TYPE-A |
| COM Port | 2 x DB9 switch by Jumper for RS-232 or RS485 |
| Micro USB | 1 x Micro USB for OTG |
| Others | 1 x Power Button 1 x Reset Button 1 x Force Recovery Button |
| Expansion | |
| M.2 | 1 x M.2 2242/2280 (M-Key socket for NVMe SSD) 1 x M.2 2230 (E-Key socket for WIFI module) 1 x M.2 3042/3052 (B-Key socket for 5G module)(only be used in room temperature) |
| SIM | 1 x Micro SIM Slot |
| Mechanical & Environmental | |
| Power Requirement | 10~24VDC (Terminal Block 2 pin) |
| Operating Temperature | -15°C ~ 60°C, (-5°F ~ 140°F) according to IEC60068-2 with 0.5 m/s AirFlow |
| Storage Temperature | -40°C ~ 80°C, (-40°F ~ 176°F) |
| Dimension (W x L x H) | 125 x 196 x 66 mm (w/o wall mount bracket) |
| Weight | 1.4 kg |
| Operating Humidity | 40°C @ 95% Relative Humidity, Non-condensing |
| Mounting Kit | Wall Mount Bracket (Optional) |
| Certification | |
| Certification Information | CE, FCC Class A |
| Ordering Information | |
| Ordering Information | AIB-NW01-NA04-A1R:Orin Nano 4GB/128GB SSD/Ubuntu 20.04,Jetpack 5.0 AIB-NW01-NA08-A1R:Orin Nano 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.0 AIB-NW01-NX08-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.0 AIB-NW01-NX16-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.0 |
AIB Series: NVIDIA Jetson-powered Edge AI Platform
Designed for high-performance inference, machine vision, and autonomous machine applications.
- JetPack 6.x / 5.1.1: Full compatibility with the latest NVIDIA AI SDKs.
- Industrial Connectivity: Built-in CAN Bus, RS-232/485, and GPIO for direct communication with factory equipment.
- Expandability: M.2 slots for 5G/4G and WiFi 6E modules, ensuring your edge data is always connected.
