A-AIB-NINX-S
Compact & Fanless Edge AI Platform with Nvidia Jetson Orin NX module
- Up to 100 TOPS AI Performance
- 3×M2 M Key, Gen 4×4 / Gen 4×2 / Gen 4×1
- Fanless Design
- 4×USB3.2 Gen2
- RS232 / RS485 / I2C
Datasheet
| System Information | |
| NVIDIA Platform | NVIDIA Jetson Orin™ NX 8GB/16GB |
| AI Performance | 70/100 TOPS |
| System Memory | 8/16GB 128 bit LPDDR5 102.4GB/s |
| Development Environment | |
| OS | Ubuntu 20.04 / Ubuntu 22.04 |
| Kernal | 5.10.104 tegra or Higher |
| BSP | Linux for Tegra(L4T) R35.3.1 or Higher |
| SDK | JetPack 5.1.1 / JetPack 6.2 or Higher |
| AI SDK GitHub | Github link |
| Storage | |
| M.2 | 128 GB |
| Storage | Supports External NVMe |
| I/O | |
| USB Port | 4×USB3.2 Gen2 ( Type-A ) 2×USB3.2 Gen1 ( Pin Header ) |
| LAN Port | 1 x RJ45 for 10/100/1000Mbps Ethernet ( DHCP Client ) |
| HDMI | 2 x HDMI2.0 |
| MIPI (Internal) | 8 MIPI CSI 2 Lanes ( D PHY 2.1, Support MIPI Camera, Capture Card ) |
| Antenna | 4 x Antenna Mounting with Dust Protection Cover |
| AC/DC Input | 1 x DC Jack |
| Audio | 1×3.5mm Line In 1×3.5mm Line Out |
| RS232 | 1×RS232 ( Phoenix Connector) |
| RS485 | 1×RS485 ( Phoenix Connector) |
| SIM Card Slot | Optional |
| Expansion | |
| M.2 | 1×M.2 2280/3080 M Key PCIe Gen4×4 Slot 1×M.2 2280 M Key PCIe Gen4×1 Slot 1×M.2 2280 M Key PCIe Gen4×2 Slot (HDMI 2.0 Model) |
| Mechanical & Environmental | |
| Power Requirement | DC input : 9~36V / DC Input : 48V (PSE model) |
| Operating Temperature | 0~60C° with Airflow |
| Storage Temperature | -20~70 C° |
| Dimension (W x L x H) | 286mm × 144mm × 76.6mm |
| Weight | 1850g |
| Ordering Information | |
| Ordering Information | AIB-NINX-S08B-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04, Jetpack 5.1.1 or JetPack 6.2 / HDMI 2.0 AIB-NINX-S16B-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / HDMI 2.0 AIB-NINX-S08E-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / PSE AIB-NINX-S16E-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 / PSE AIB-NINX-S08X-A1R:Orin NX 8GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 AIB-NINX-S16X-A1R:Orin NX 16GB/128GB SSD/Ubuntu 20.04,Jetpack 5.1.1 or JetPack 6.2 |
| Optional Product Features Extension by Daughter Board | |
| SDK / Software | By request |
| NX 5G | 5G Mobility Network ( Supports 5G / 4G / 3G SIM Module) |
| NX PSE | "*IP Camera 4×RJ45 for 10 / 100 / 1000Mbps Ethernet with IEEE802.3af Compliant *PSE Power Supply 4×15W ( IEEE802.3af )" |

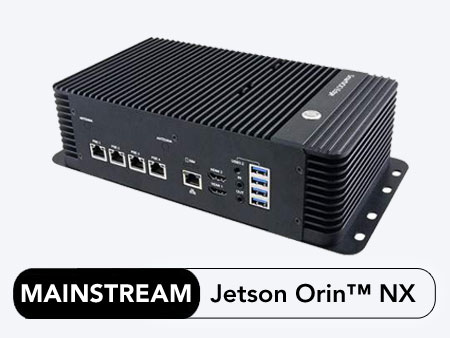

Mainstream / Mid-Range (Orin NX)
Ideal for AOI (Automated Optical Inspection) and intelligent video surveillance.
- Core: NVIDIA Jetson Orin™ NX (8GB/16GB)
- Performance: 70 to 100 TOPS
- Key Specs
- Offers more robust I/O including optional PSE (Power over Ethernet) ports to power IP cameras directly.
- Use Case:
- Best for Smart Factory deployments where the device needs to be mounted on a wall or inside a small control cabinet with no airflow.

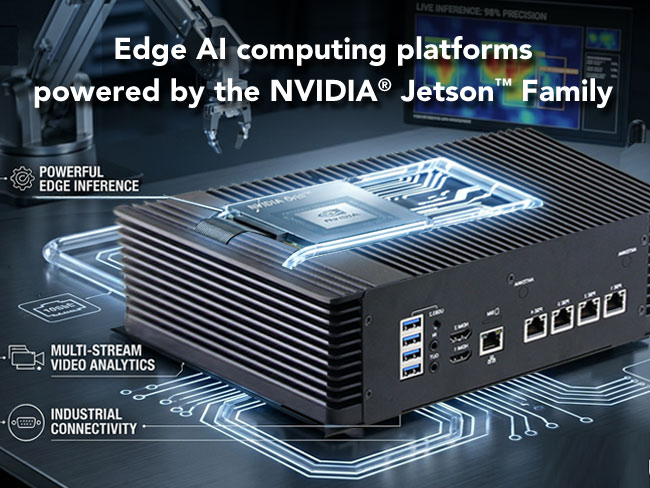

AIB Series: NVIDIA Jetson-powered Edge AI Platform
Designed for high-performance inference, machine vision, and autonomous machine applications.
- JetPack 6.x / 5.1.1: Full compatibility with the latest NVIDIA AI SDKs.
- Industrial Connectivity: Built-in CAN Bus, RS-232/485, and GPIO for direct communication with factory equipment.
- Expandability: M.2 slots for 5G/4G and WiFi 6E modules, ensuring your edge data is always connected.
